  2. 7500 KVA, Pri 66000 DELTA, Sec 13200 Y, SUNBELT SUBSTATION TRANSFORMER

7500 KVA, Pri 66000 DELTA, Sec 13200 Y, SUNBELT SUBSTATION TRANSFORMER

https://belyeapower.redstormlabs.com/web/image/product.template/34959/image_1920?unique=632d99c

SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045354
    Request Quote

    Full Product Description

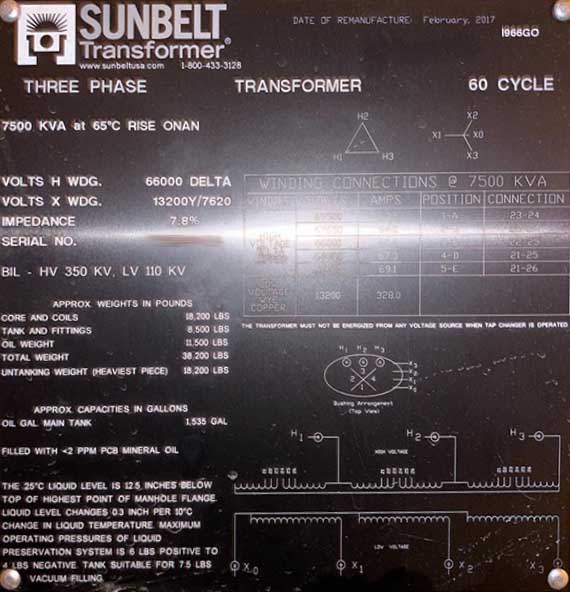

    ONE (1) 7500 KVA SUNBELT SUBSTATION TRANSFORMER,
    3 PH, 60 HZ, ONAN, 65 DEG C RISE, 7.8% IMPEDANCE,

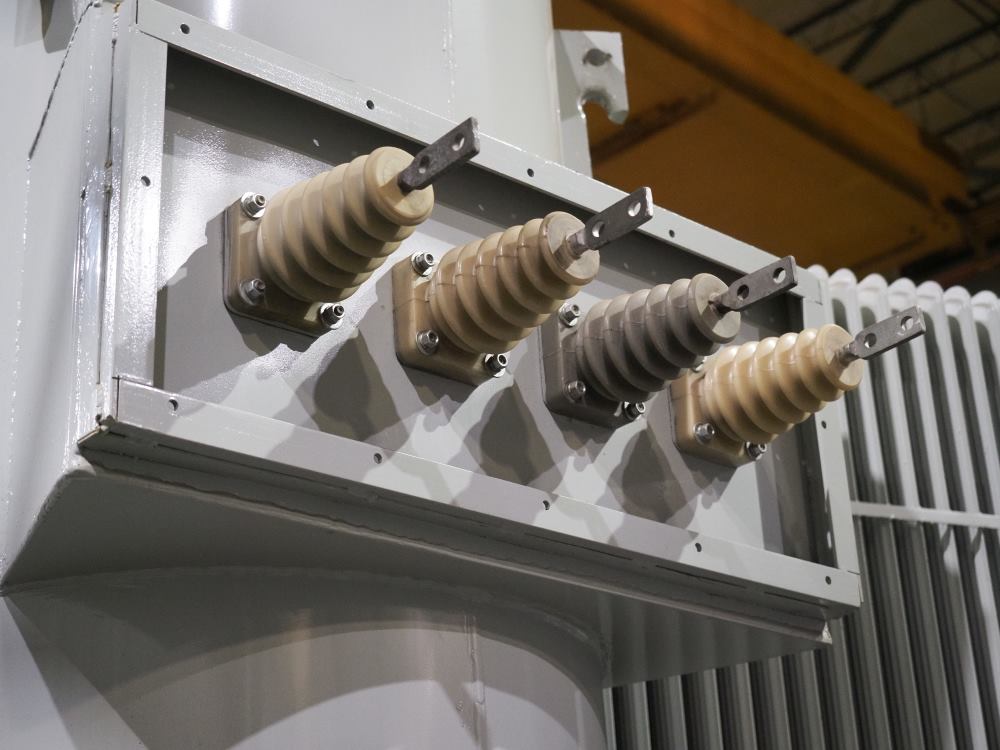

    ALL COPPER WINDINGS, ANTE 3&4 BUSHING PLACEMENT,
    LIQUID TEMP GAUGE, LIQUID LEVEL GAUGE, PRESSURE
    INDICATOR, PRESSURE RELEASE DEVICE, DRAIN & SAMPLE
    VALVE,

    HV: 66000 DELTA BIL: 350 KV
    LV: 13200Y/7620 BIL: 110 KV

    TAPS: 69300-67650-66000-64350-62700

    TOTAL WEIGHT: 38200 LBS
    CORE & COILS: 18200 LBS
    TANK & FITT.: 8500 LBS
    LIQUID-OIL: 11200 LBS (1535 GAL)

    DIMENSIONS:
