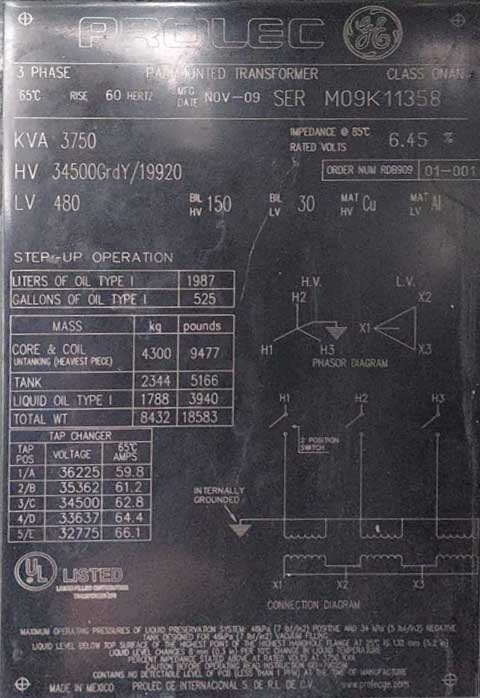

3750 KVA, Pri 34500 Y, Sec 480 D, GE PROLEC PADMOUNT TRANSFORMER, DF/RF

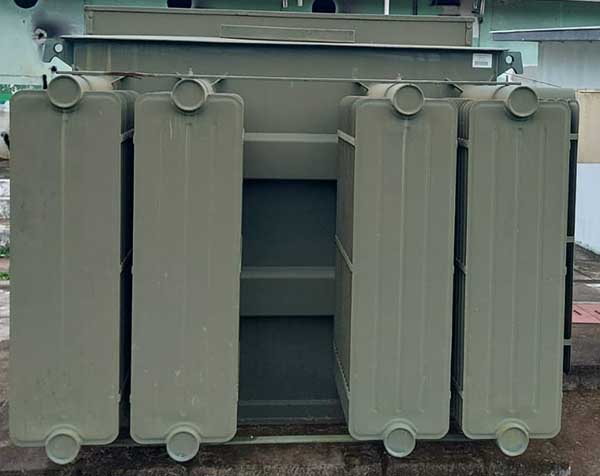

ONE (1) 3750 KVA GE PROLEC GSU PADMOUNTED TRANSFORMER,
60 HZ, 3 PH, ONAN, 6.62% IMPEDANCE, DEAD FRONT, RADIAL FEED,
65 DEG C RISE, HV COPPER WINDING, LV ALUMINUM WINDING,
INTERNALLY GROUNDED, LIQUID LEVEL GAUGE, LIQUID TEMP
GAUGE, PRESSURE RELEASE DEVICE, DRAIN & SAMPLE VALVE


HV: 34500 GRDY/19920 BIL: 150 KV
LV: 480 DELTA BIL: 30 KV

TAPS: 36225-35362-34500-33637-32775

TOTAL WEIGHT: 18583 LBS
CORE & COILS: 9477 LBS
TANK & FITT.: 5166 LBS
LIQUID-OIL: 3640 LBS (525 GAL)

DIMENSIONS: 96.3"W x 96.0"D x 77.3"H
