2000 KVA, Pri 13200 D, Sec 480 Y/277, 1999, CUTLER HAMMER, SILICONE SUBSTAION

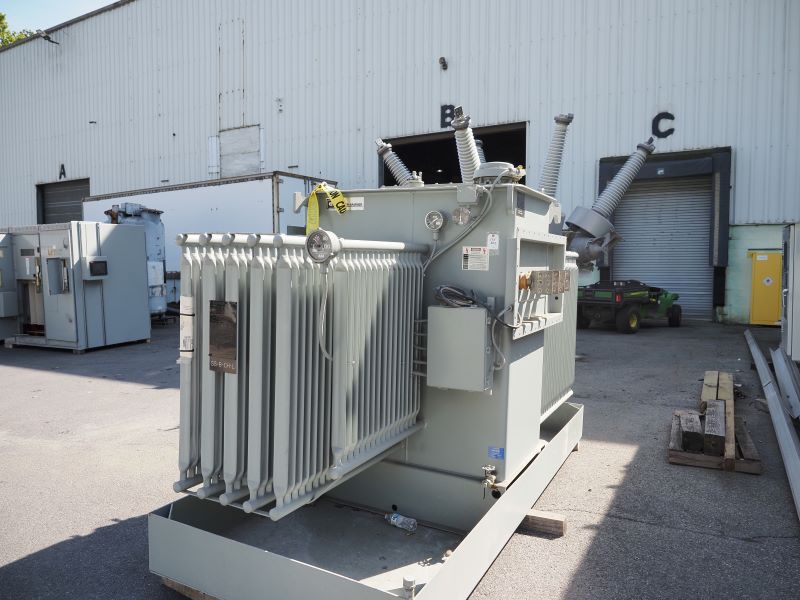

ONE (1) 2000/2240 KVA CUTLER-HAMMER SUBSTATION TRANSFORMER, SILICONE, INDOOR,
3 PHASE, 60HZ, 5.76% IMPEDIENCE, OA CLASS, 55/65 DEG. C RISE, LIQUID
LEVEL GAUGE, LIQUID TEMP GAUGE, VACUUM PRESSURE GAUGE, COPPER WINDINGS

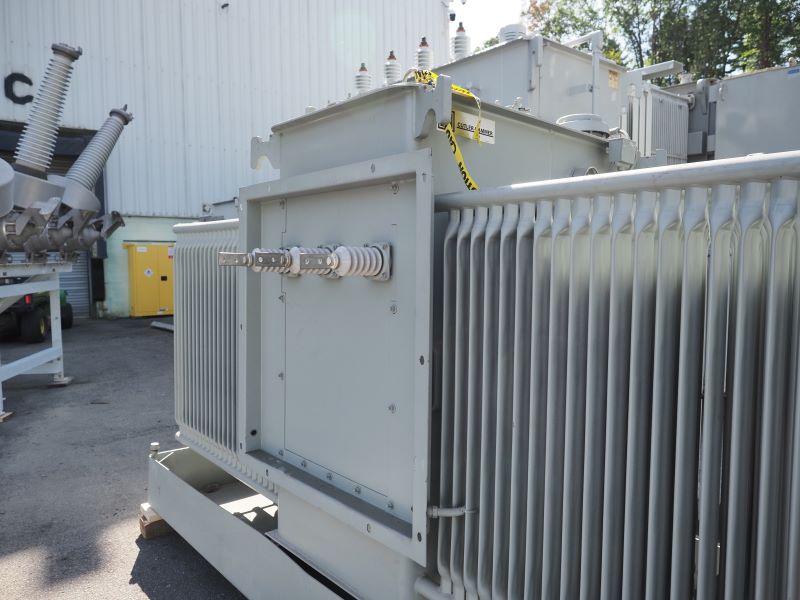

DRAIN AND SAMPLE VALVE, PRESSURE RELIEF DEVICE, BUSHINGS SIDE X SIDE,

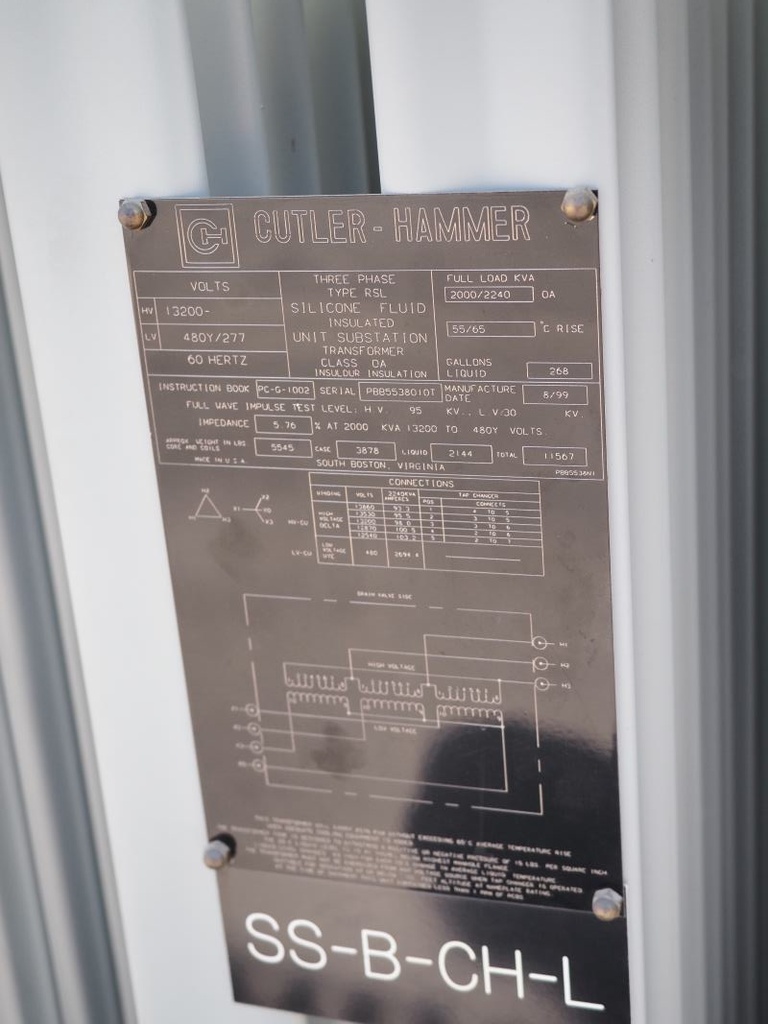

HV: 13200D HV BIL: 95kV
LV: 480Y/277 LV BIL: 30kV
TAPS: 13860-13530-13200-12870-12540

TOTAL WEIGHT: 11567LBS
CORE & COILS: 5545LBS
TANK & FITTS: 3878LBS
LIQUID : 2144LBS (268 GAL)

DIMMS: 81"H x 128"D x 55"W
