  2. 300 KVA, Pri 4160 D, Sec 480 Y/277, 2009, Dead Front, Radial Feed

300 KVA, Pri 4160 D, Sec 480 Y/277, 2009, Dead Front, Radial Feed

https://belyeapower.redstormlabs.com/web/image/product.template/34931/image_1920?unique=e118c1b

PADMOUNT TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045326
    Request Quote

    Full Product Description

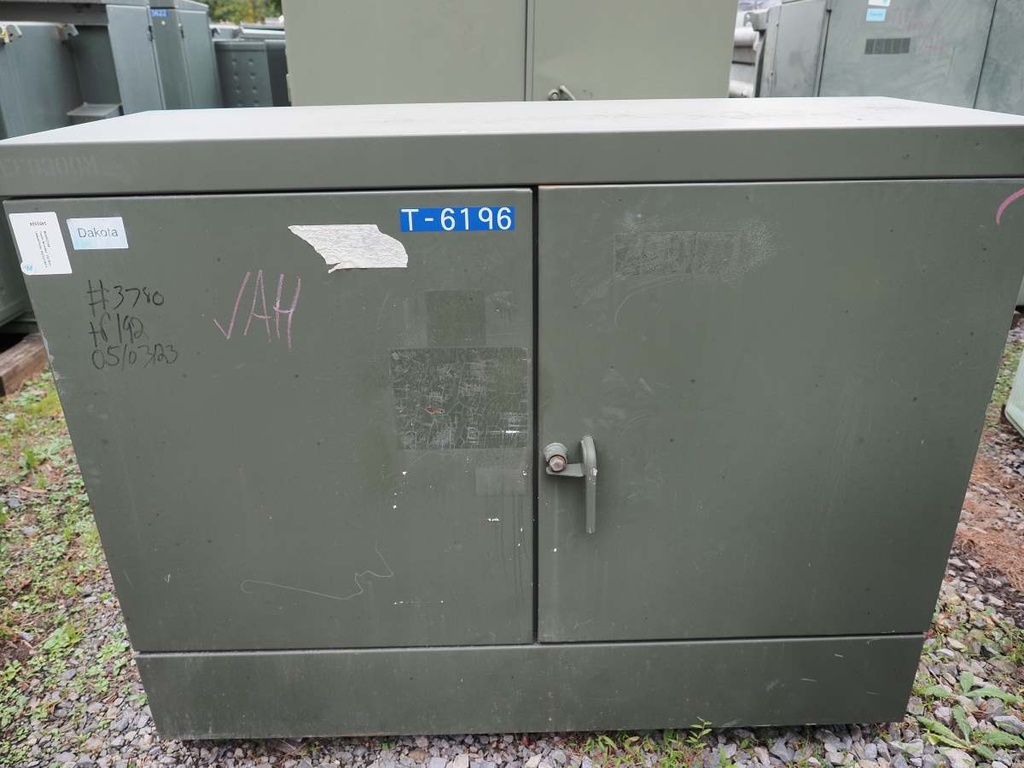

    T-6196

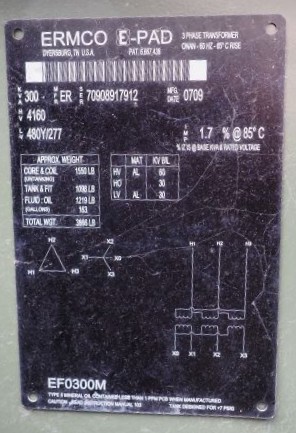

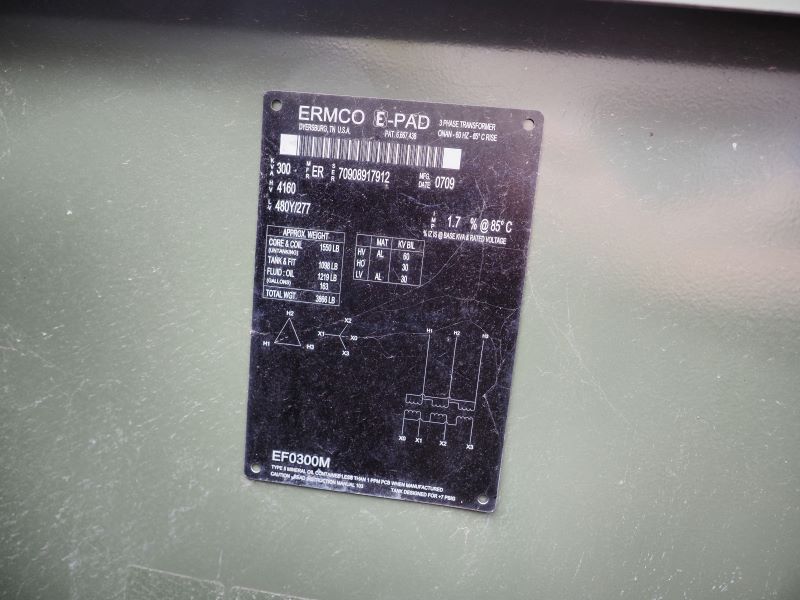

    ONE (1) 300 KVA ERMCO PAD-MOUNT TRANSFORMER, 60HZ, 3 PHASE, ONAN CLASS,
    1.7% IMPEDIENCE, 65 DEG. C RISE, DEAD FRONT, RADIAL FEED, LIQUID TEMP
    GAUGE, LIQUID LEVEL GAUGE, ALUMINUM WINDINGS,


    HV: 4160D HV BIL: 60kV
    LV: 480Y/277 LV BIL: 30kV
    TAPS: 4360-4260-4160-4055-3950

    DIMS: 53"H x 58"L x 67" D
