Full Product Description

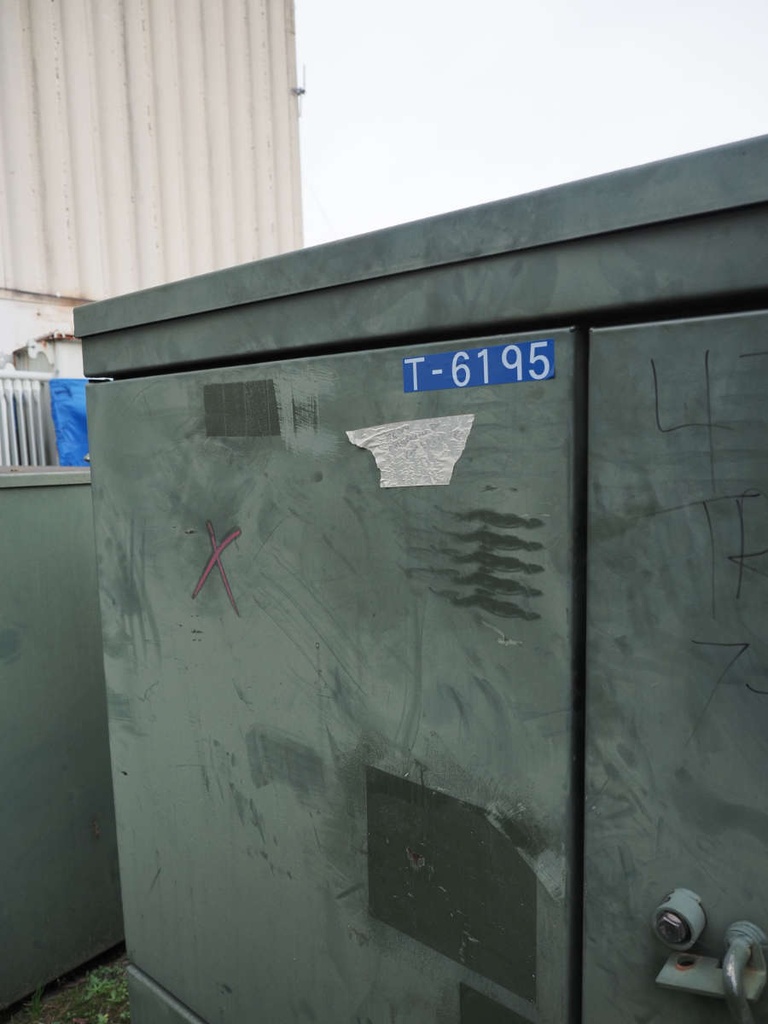

T-6195

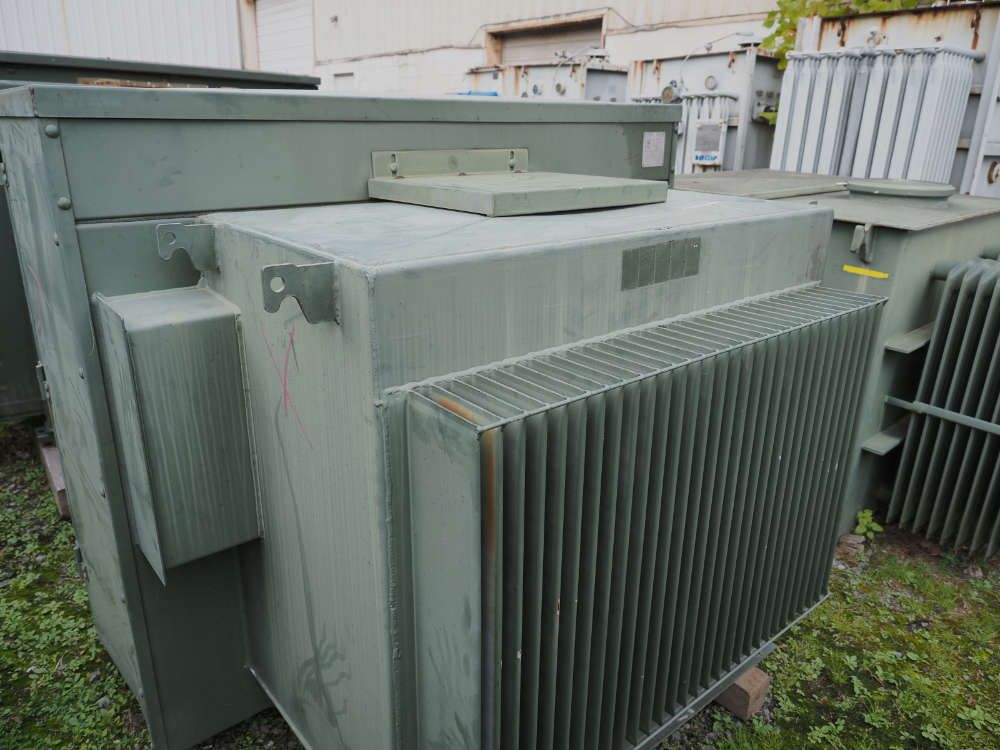

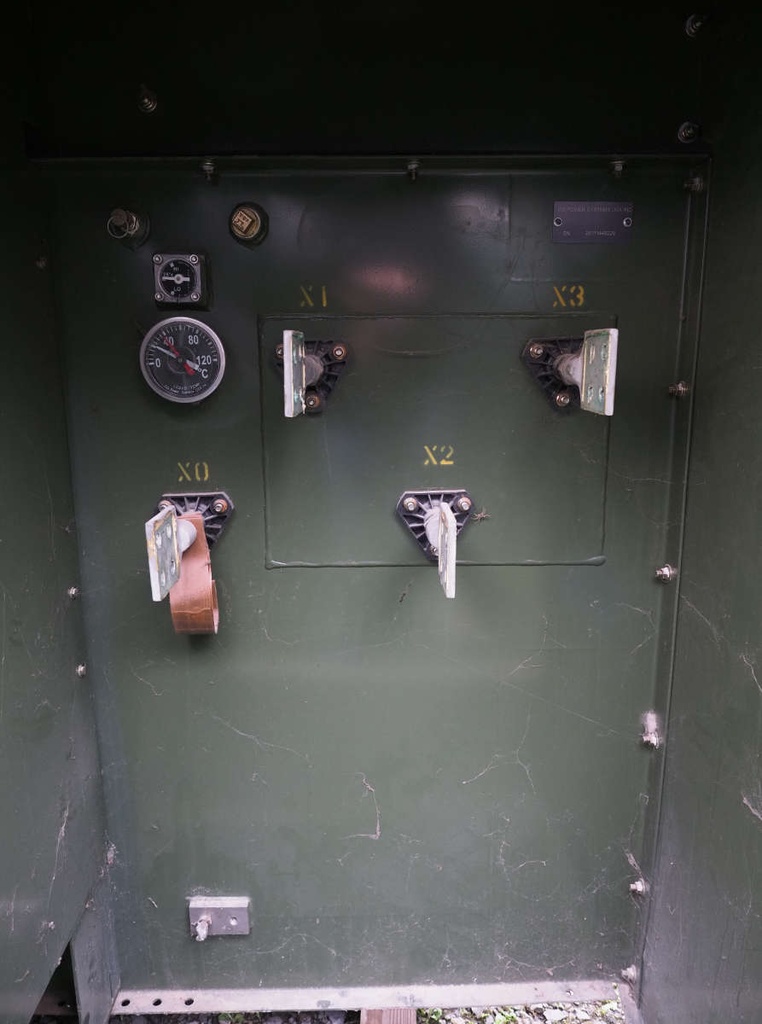

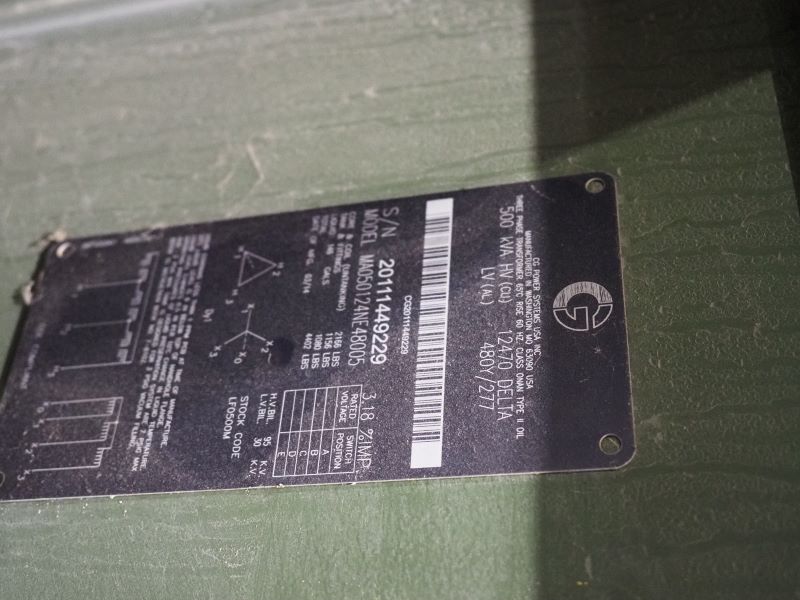

ONE (1) 500 KVA CG POWER SYSTEMS PAD-MOUNT TRANSFORMER, 3 PHASE, ONAN CLASS,
60HZ, 65 DEG. C RISE, RADIAL FEED, DEAD FRONT, LIQUID LEVEL GAUGE,
LIQUID TEMP GAUGE, DRAIN CAP & SAMPLE PLUG, 3.18% IMPEDIENCE,
COPPER HIGH VOLTAGE WINDINGS, ALUMINUM LOW VOLTAGE WINDINGS
HV: 12470D HV BIL: 95kV
LV: 480Y/277 LV BIL: 30kV
TAPS: 13094-12782-12470-12158-11847
DIMMS: 59"H x 59"L x 69"D
ONE (1) 500 KVA CG POWER SYSTEMS PAD-MOUNT TRANSFORMER, 3 PHASE, ONAN CLASS,
60HZ, 65 DEG. C RISE, RADIAL FEED, DEAD FRONT, LIQUID LEVEL GAUGE,
LIQUID TEMP GAUGE, DRAIN CAP & SAMPLE PLUG, 3.18% IMPEDIENCE,
COPPER HIGH VOLTAGE WINDINGS, ALUMINUM LOW VOLTAGE WINDINGS
HV: 12470D HV BIL: 95kV
LV: 480Y/277 LV BIL: 30kV
TAPS: 13094-12782-12470-12158-11847
DIMMS: 59"H x 59"L x 69"D
