  2. 1000 KVA, Pri 12470 D, Sec 480 Y/277, 1993, RADIAL FEED, LIVE FRONT

1000 KVA, Pri 12470 D, Sec 480 Y/277, 1993, RADIAL FEED, LIVE FRONT

https://belyeapower.redstormlabs.com/web/image/product.template/34928/image_1920?unique=e118c1b

PAD-MOUNT TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045323
    Request Quote

    Full Product Description

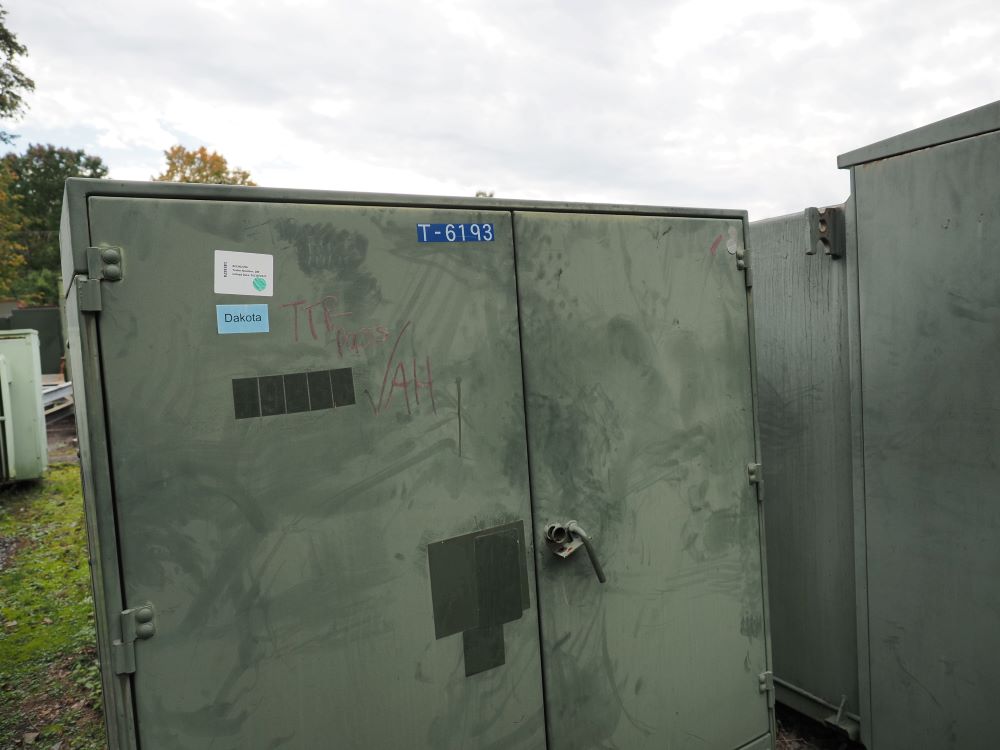

    T-6193

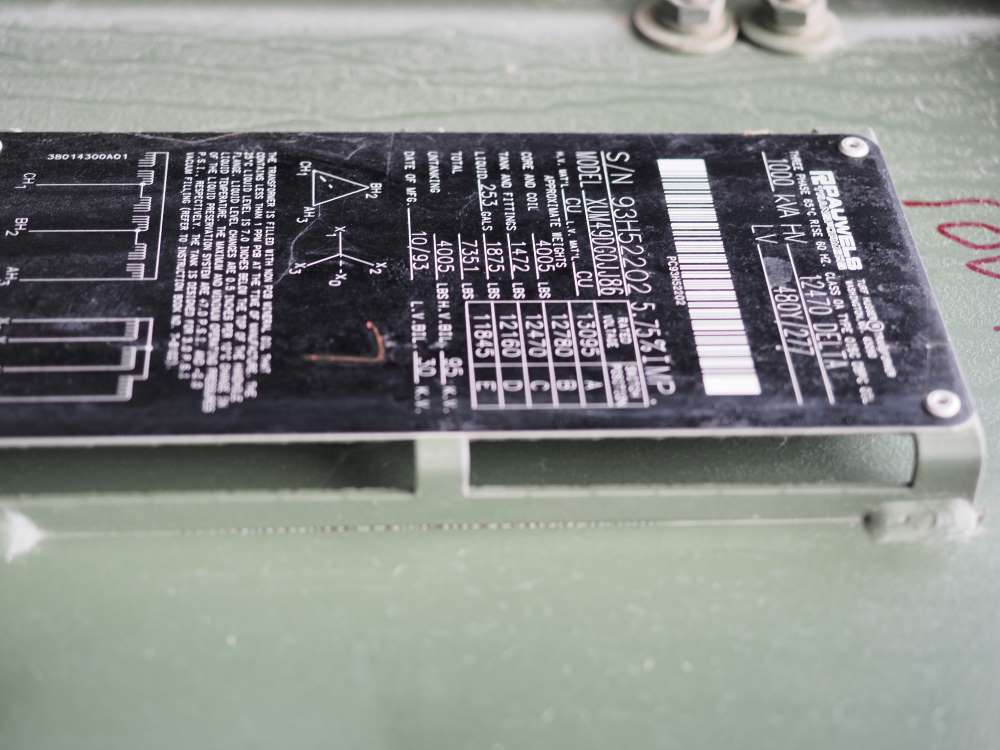

    ONE (1) 1000 KVA PAUWELLS PAD-MOUNT TRANSFORMER, CLASS OA, 3 PHASE, 60HZ,
    65 DEG. C RISE, 5.75% IMPEDIENCE, RADIAL FEED, LIVE FRONT, LIQUID
    LEVEL GAUGE, LIQUID TEMP GAUGE, DRAIN VALVE, SAMPLE PLUG, TAP CHANGER,
    ALL COPPER WINDINGS,

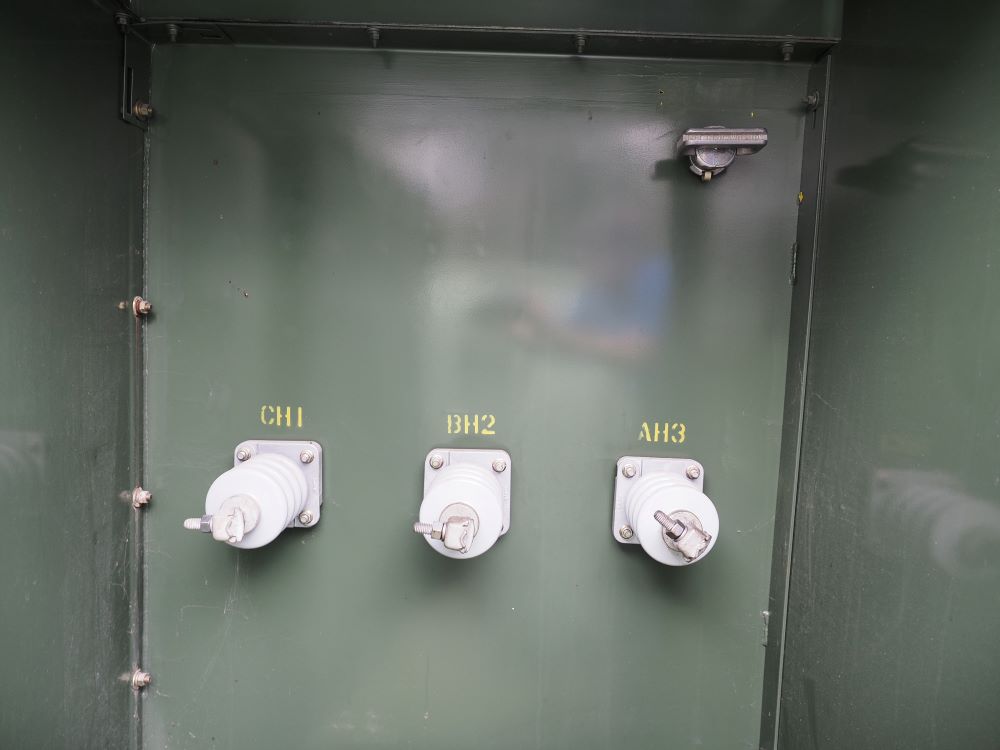

    HV: 12470D HV BIL: 95kV
    LV: 480Y/277 LV BIL: 30kV
    TAPS: 13095-12750-12470-12160-11845

    TOTAL WEIGHT: 7351 LBS
    CORE & COILS: 4005 LBS
    TANK & FITTS: 1472 LBS
    LIQUID : 1875 LBS (253 GAL)

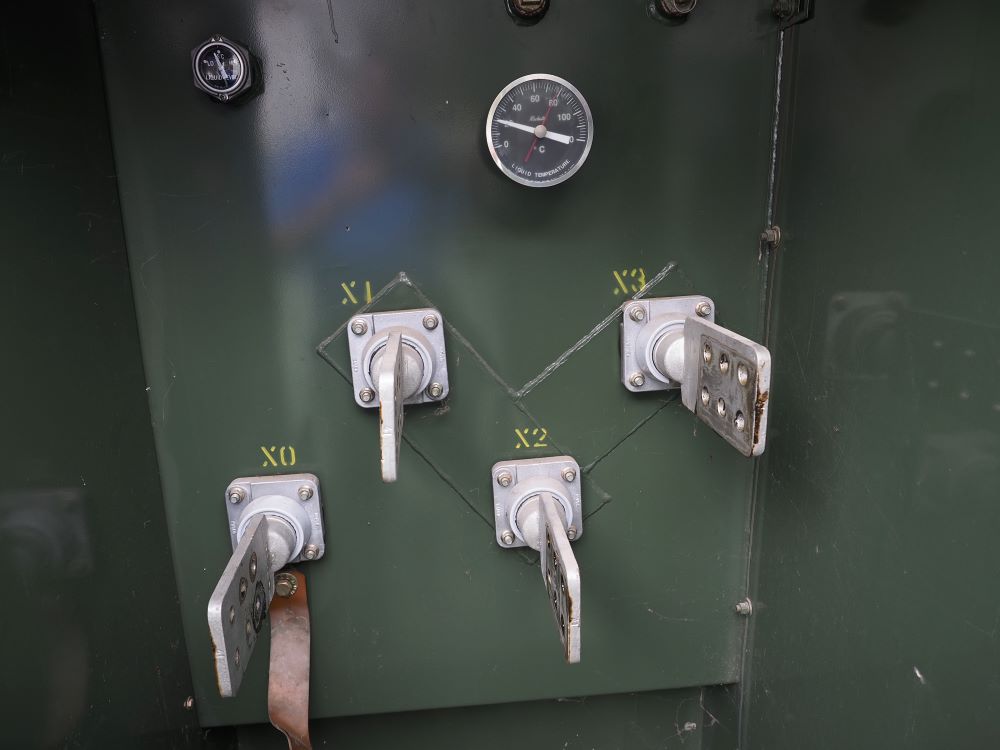

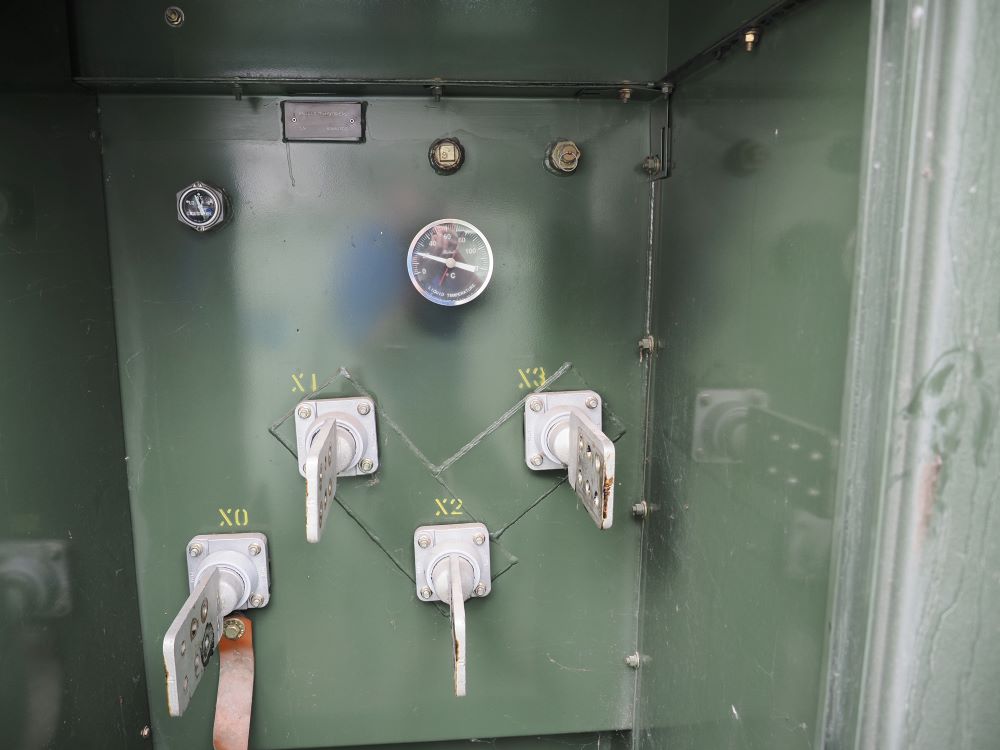

    DIMS: 69"H x 58"L x 65"W Low Voltage Bushings (X0, X2): 46.5" (X1, X3): 46.25" High Voltage Bushings: 37.5"
