  2. 1500 KVA, Pri 12470 D, Sec 480 Y/277, 1989, RADIAL FEED, LIVE FRONT

1500 KVA, Pri 12470 D, Sec 480 Y/277, 1989, RADIAL FEED, LIVE FRONT

https://belyeapower.redstormlabs.com/web/image/product.template/34925/image_1920?unique=e118c1b

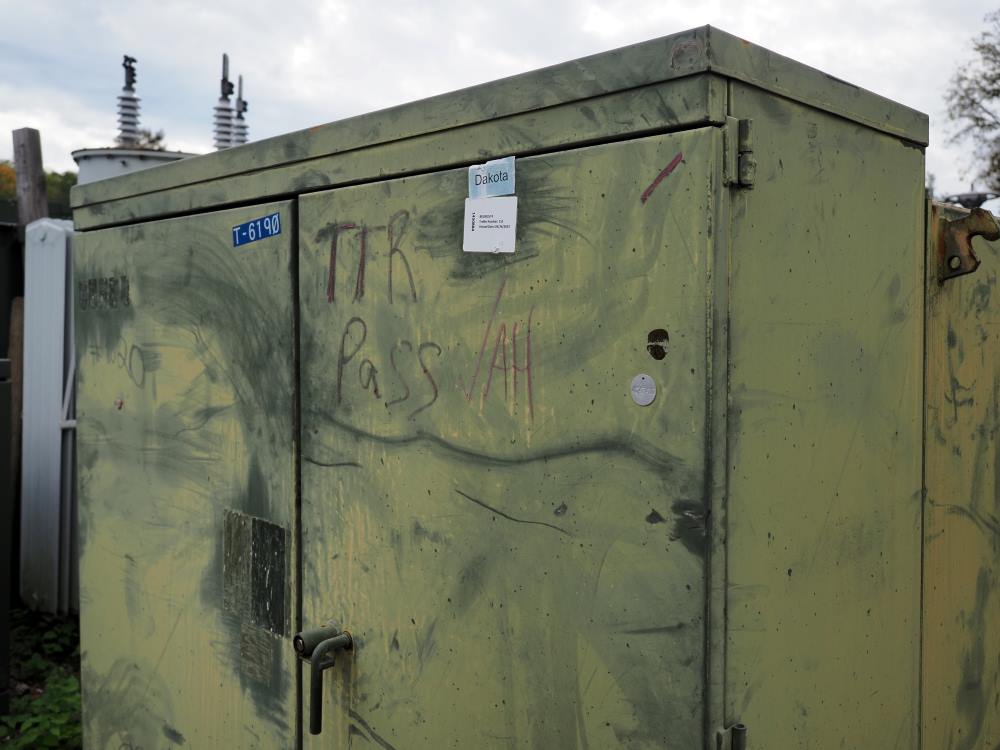

PAD-MOUNT TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045320
    Request Quote

    Full Product Description



    T-6190

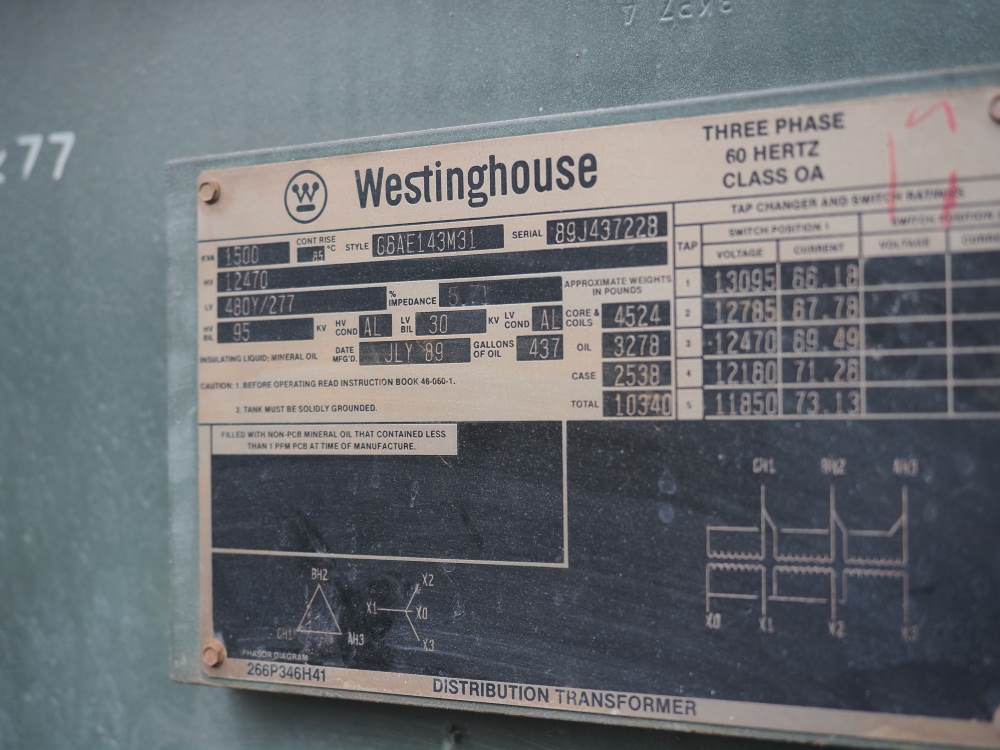

    ONE (1) 1500 KVA WESTINGHOUSE PAD-MOUNT TRANSFORMER, 5.71% IMPEDIENCE, 60 HZ,
    CLASS OA, 65 DEG. C RISE, RADIAL FEED, LIVE FRONT, LIQUID TEMP GAUGE,
    LIQUID LEVEL GAUGE, TAP CHANGER, DRAIN VALVE, SAMPLE PLUG,
    ALL ALUMINUM WINDINGS,

    HV: 12470D BIL HV: 95kV
    LV: 480Y/277 BIL LV: 30kV
    TAPS: 13095-12785-12470-12160-11850

    TOTAL WEIGHT: 10340LBS
    CORE & COILS: 4524LBS
    TANK & FITTS: 2538LBS
    LIQUID : 3278LBS (437 GAL)

    DIMS: 70"H x 73"L x 71" W
