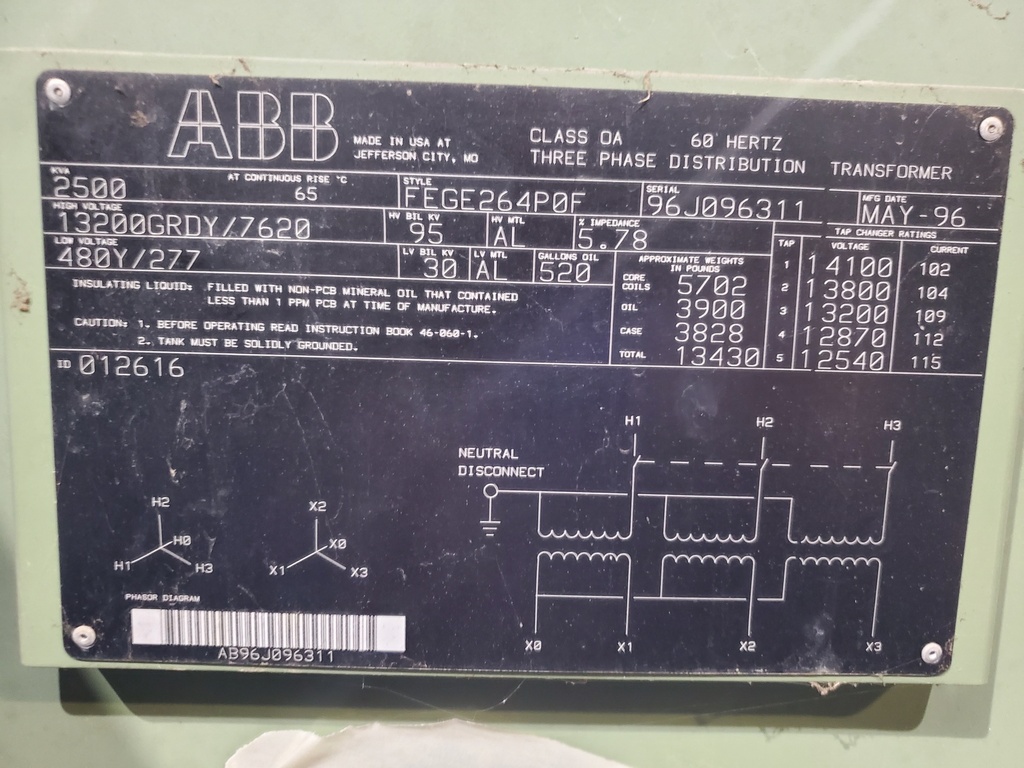

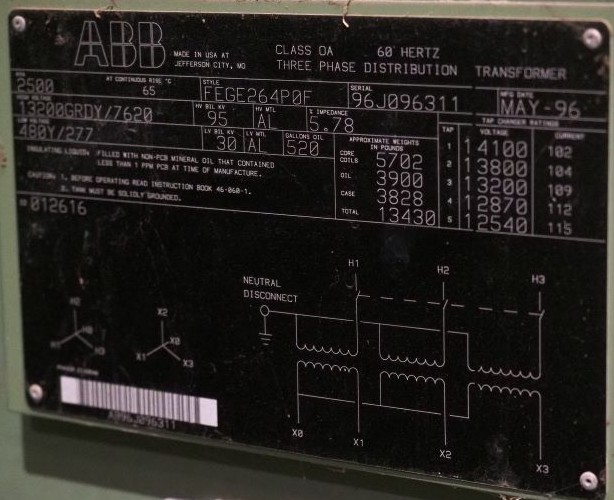

2500 KVA, Pri 13200 GRDY 7620, SEC 480Y/277, 1996, DEAD FRONT, RADIAL FEED
PADMOUNT TRANSFORMER
Product Number:
045318
Full Product Description
T-6188
ONE (1) 2500 KVA ABB PADMOUNT TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS OA, 65
DEG. RISE, 5.78% IMPEDENCE, DEAD FRONT, RADIAL FEED, ALUMINUM WINDINGS,
TAP CHANGER, DRAIN VALVE, SAMPLE PLUG,
HIGH VOLTAGE: 13200 GRDY/7620 BIL HV: 95kV
LOW VOLTAGE: 480Y/277 BIL LV: 30kV
TAPS: 14100-13800-13200-12870-12540
TOTAL WEIGHT: 13430LBS
CORE & COILS: 5702LBS
TANK & FITTS: 3828LBS
LIQUID : 3900LBS (520 GAL)
