1200 Amp, SIEMENS, No. SPS2-72.5-31.5-2, 72500 V., 2003, FA2.20 Mech, 125 VDC C+T

CB-19770

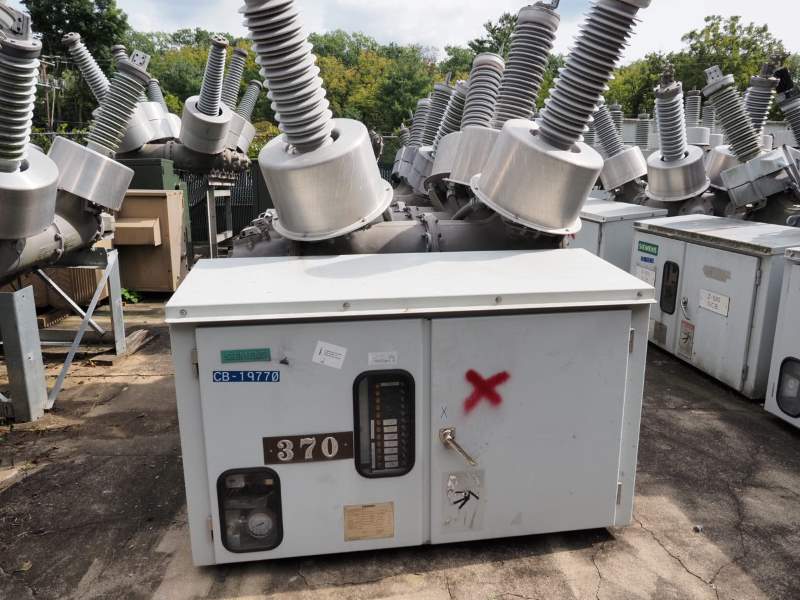

ONE (1) 1200 AMP SIEMENS SF-6 CIRCUIT BREAKER
TYPE SPS2-72.5-31.5-2
72.5 kV
1.0 kA RATED FACTOR
3 CYCLE INTERRUPT
31.5 kA SHORT CIRCUIT
7.9 kA OUT OF PHASE CURRENT
60HZ
350 kV BIL
65 PSIG FILL PRESSURE
56 PSIG ALARM PRESSURE

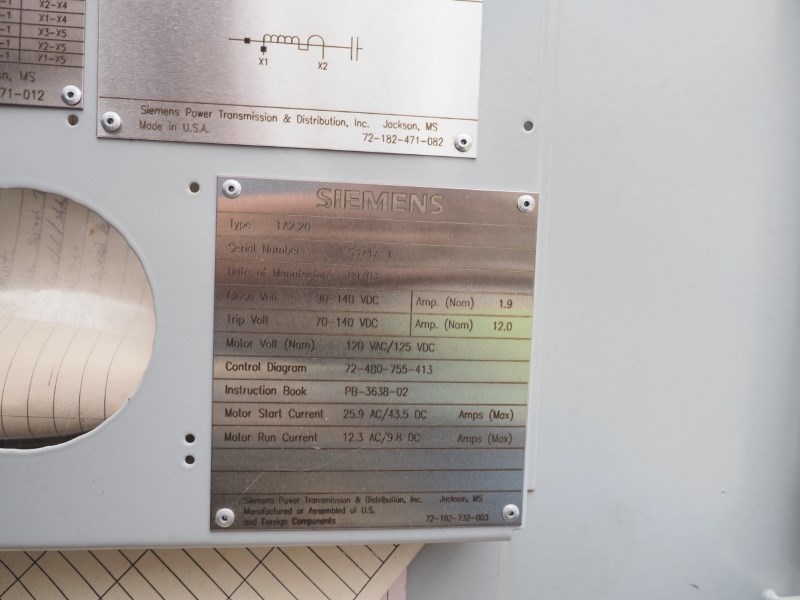

FA2.20 Mechansim
125VDC CLOSE AND TRIP
120VAC MOTOR
4800LBS WITH GAS
33LBS OF GAS

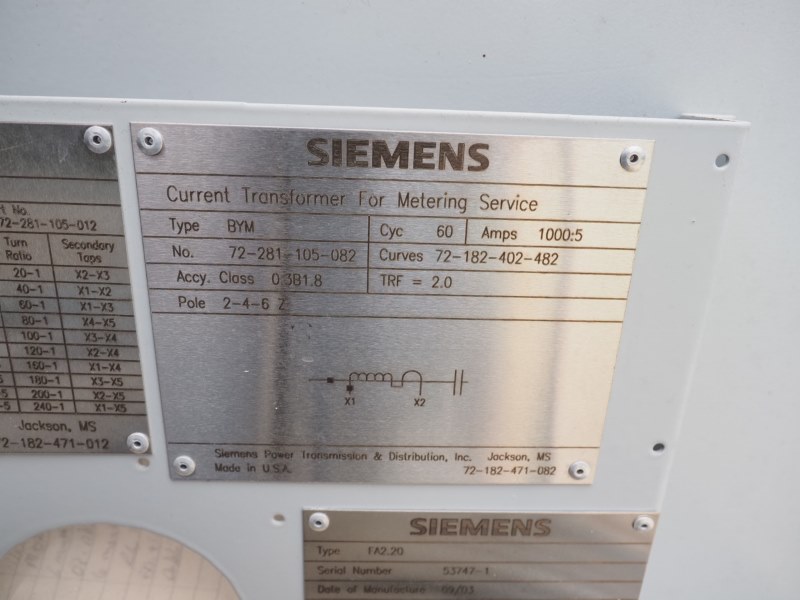

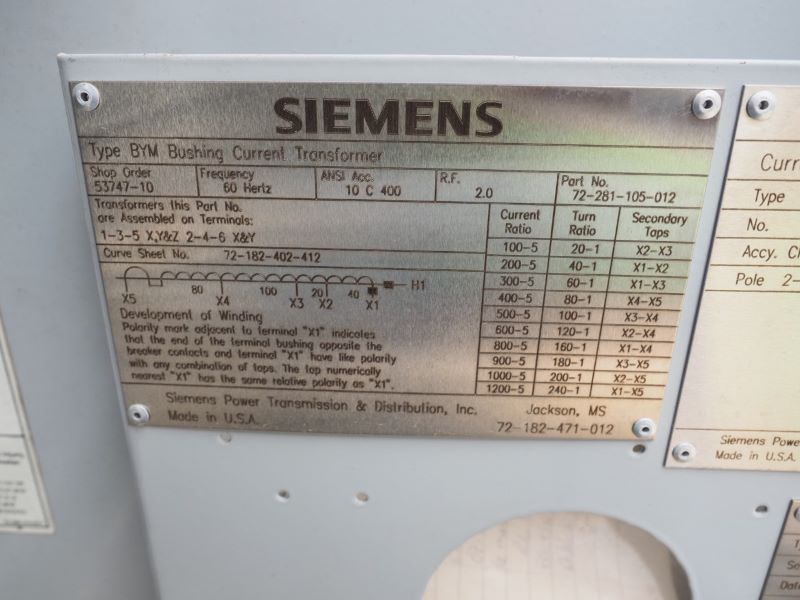

3x BYM CTs 1000:5 metering class
12x MRCTs 1200:5 C 400

SHIPPING DIMS: 93"H x 82"W x 60" L
OVERALL DIMS: 140"H x 82"W x 60"L
WEIGHT: 4800LBS
GAS WEIGHT: 33LBS
