  2. 2000/2666 KVA, Pri 13200 D, Sec 480 Y, VTC WEST DRY TYPE TRANSFORMER

2000/2666 KVA, Pri 13200 D, Sec 480 Y, VTC WEST DRY TYPE TRANSFORMER

https://belyeapower.redstormlabs.com/web/image/product.template/34900/image_1920?unique=e3adc27

DRY TYPE TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045295
    Request Quote

    Full Product Description


    T-6185

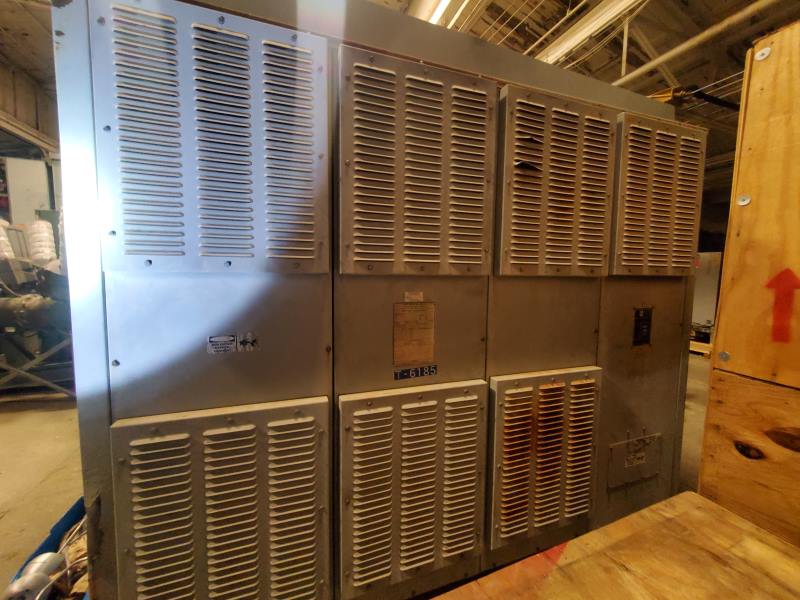

    ONE (1) 2000/2666 KVA VTC OPEN WOUND DRY TYPE TRANSFORMER
    60 HERTZ, CLASS AA/FA, 115 DEG. C RISE, 5.41% IMPEDENCE
    COPPER WINDINGS, NEMA 3 OUTDOOR TYPE,

    HV: 13200D 60kV BIL
    LV: 480Y/277 10kV BIL

    TAPS: 13860-13530-13200-12970-12540

    TOTAL WEIGHT: 15000LBS
    CORE & COIL : 9600LBS

    DIMENSIONS: 88"H x 113"L x 65"D
