5/5.6 KVA, Pri 13800 Y, Sec 4160 D, GSU CUTLER HAMMER SUBSTATION TRANSFORMER

https://belyeapower.redstormlabs.com/web/image/product.template/34895/image_1920?unique=632d99c

GSU SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045290
    Request Quote

    Full Product Description

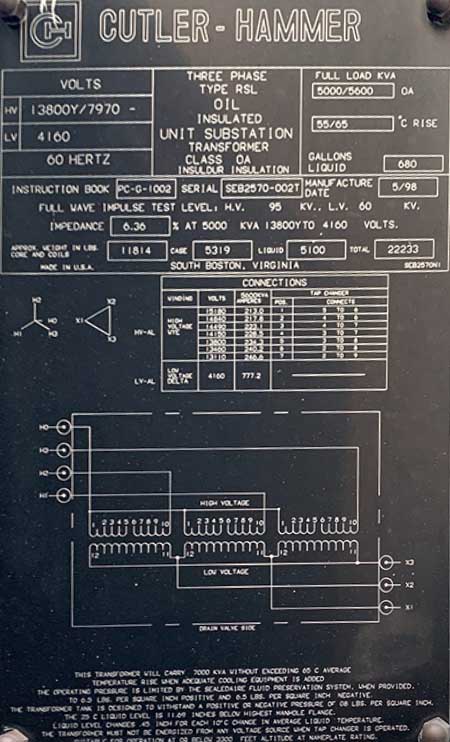

    ONE (1) 5/5.6 MVA CUTLER HAMMER GSU SUBSTATION TRANSFORMER
    3 PH, 60 HZ, 6.36% IMPEDANCE, 55/65 DEG C RISE, CLASS OA,
    FULL LENGTH ATC'S, SIDE SIDE BUSHINGS, TEMP GAUGE, LIQUID
    LEVEL GAUGE, DRAIN & SAMPLE VALVE, INSTR BOOK: PC-G-1002


    HV: 13800Y/7970 (AL) BIL: 95 KV
    LV: 4160 DELTA (AL) BIL: 60 KV
    TAPS: 15180-14840-14490-14150-13800-13460-13110

    TOTAL WEIGHT: 22233 LBS
    CORE & COILS: 11814 LBS
    TANK & FITT.: 5319 LBS
    LIQUID-OIL: 5100 LBS (680 GAL)

    DIMENSIONS: COMING SOON
