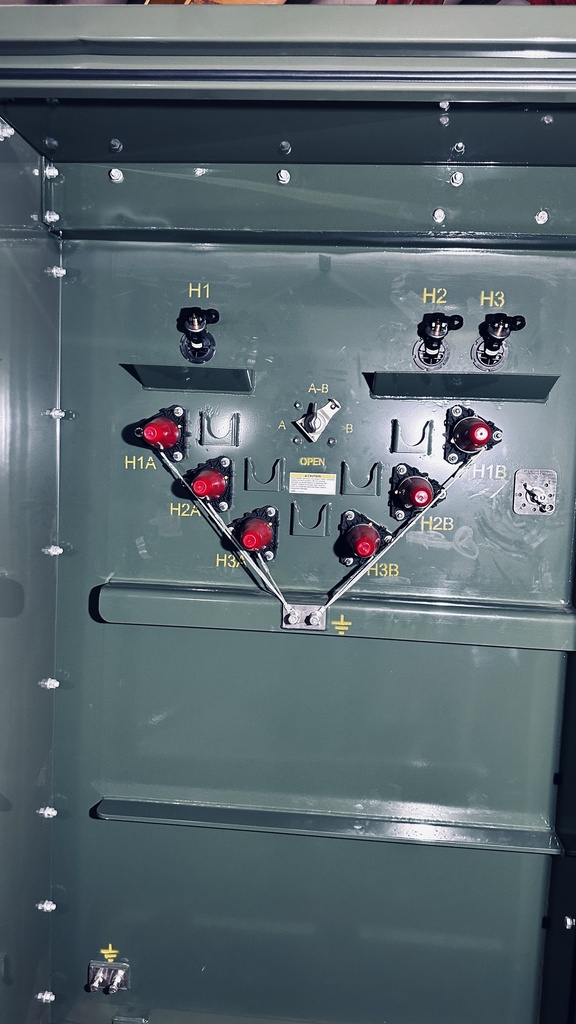

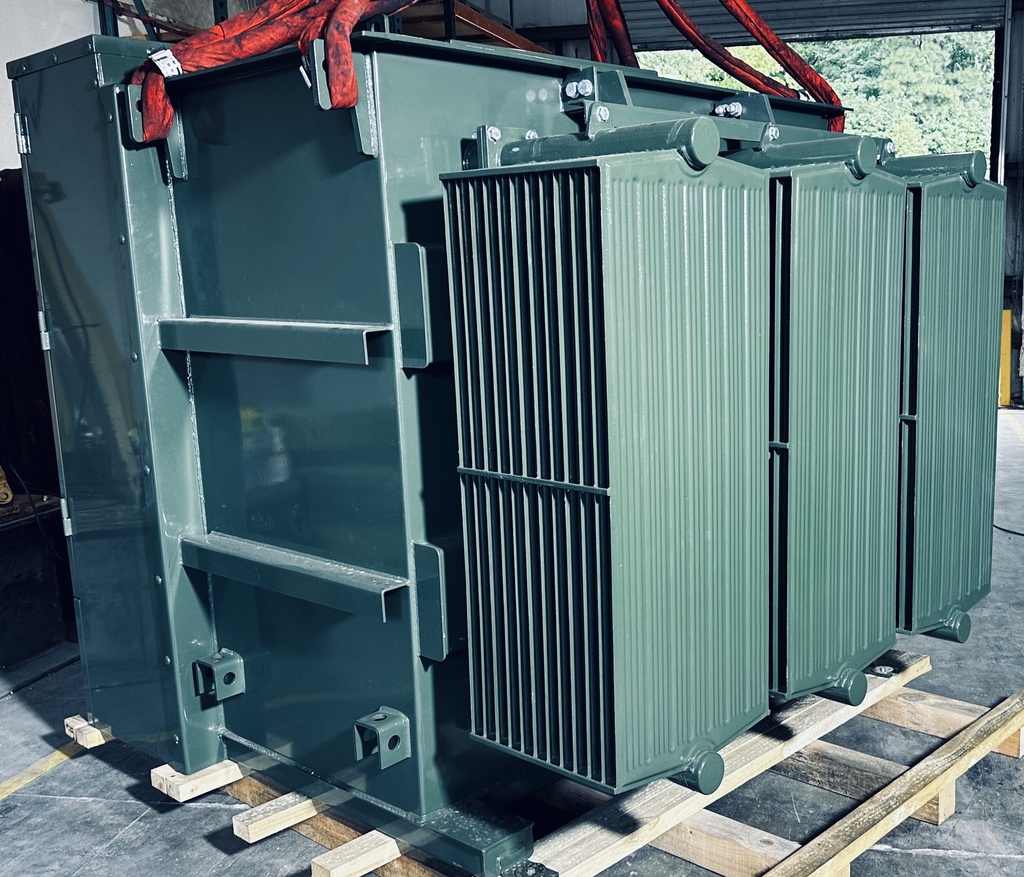

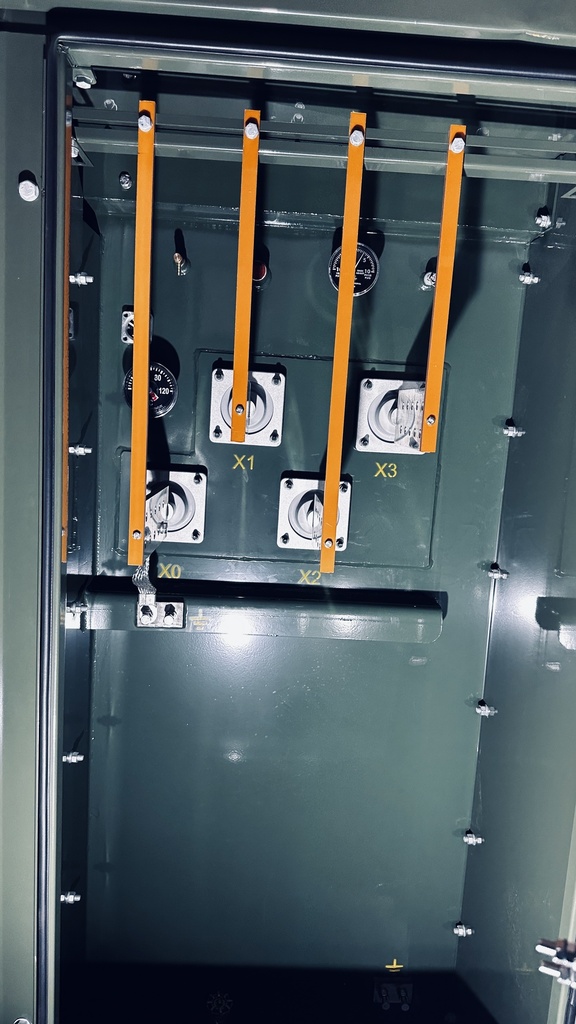

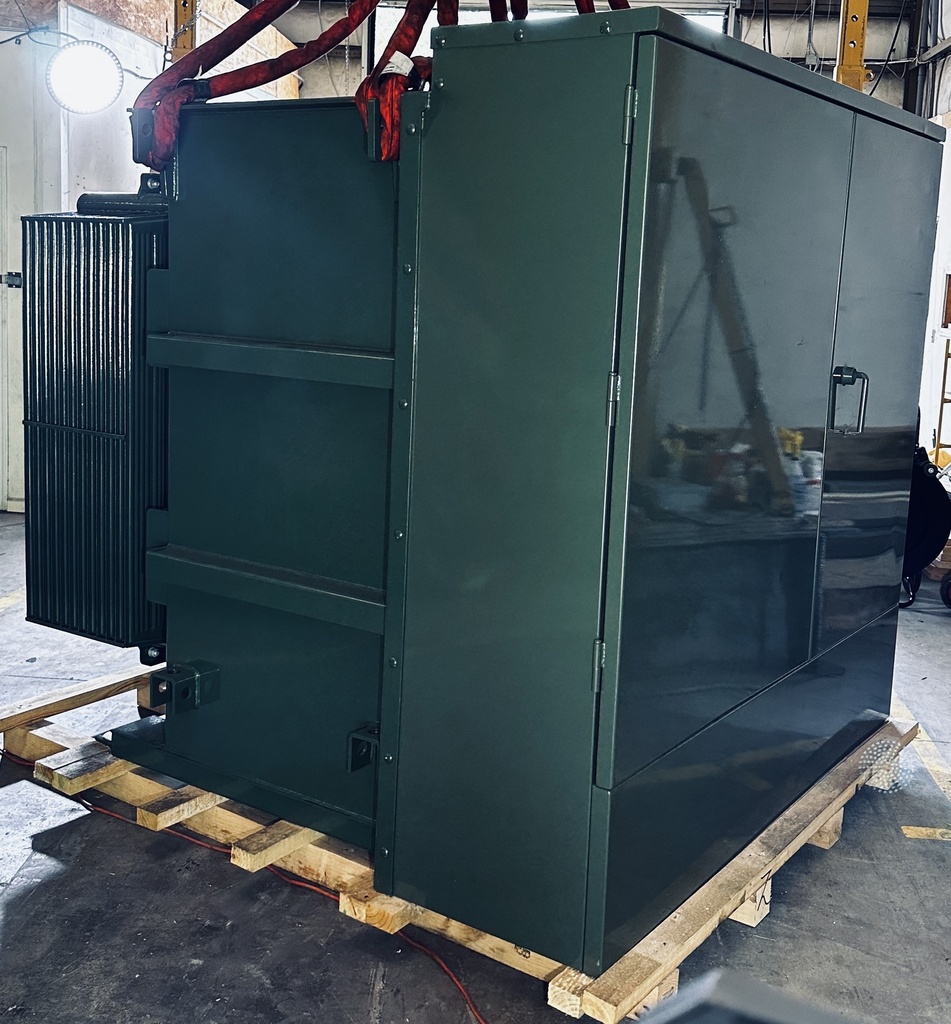

2600 KVA, Pri 13800 D, Sec 480 Y, LF/DF HC PADMOUNT TRANSFORMER

ONE (1) 2600 KVA HC PADMOUNT TRANSFORMER,
DEAD FRONT/LOOP FEED, 3 PH, 60 HZ, UL LISTED, 65 DEG
C RISE, ALL COPPER WINDINGS, 5.59% IMPEDANCE, 7 POSITION
TAP CHANGER, , LIQUID LEVEL GAUGE,
LIQUID TEMP GAUGE, PRESSURE VACUUM GAUGE, PRESSURE
RELEASE DEVICE, BAYONET FUSES, DRAIN & SAMPLE VALVE

HV: 13800 DELTA BIL: 95 KV
LV: 480Y/277 BIL: 30 KV
TAPS: 14400-13800-13200-12870-12470-12000-11700

TOTAL WEIGHT: 14725 LBS
CORE & COILS: 8225 LBS
TANK & FITT.: 3120 LBS
LIQUID-OIL: 3380 (465 GAL)

OVERALL DIMS: 79"L x 86"W x 78"H
SHIPPING DIMS: 79"L x 83"W x 83"H
