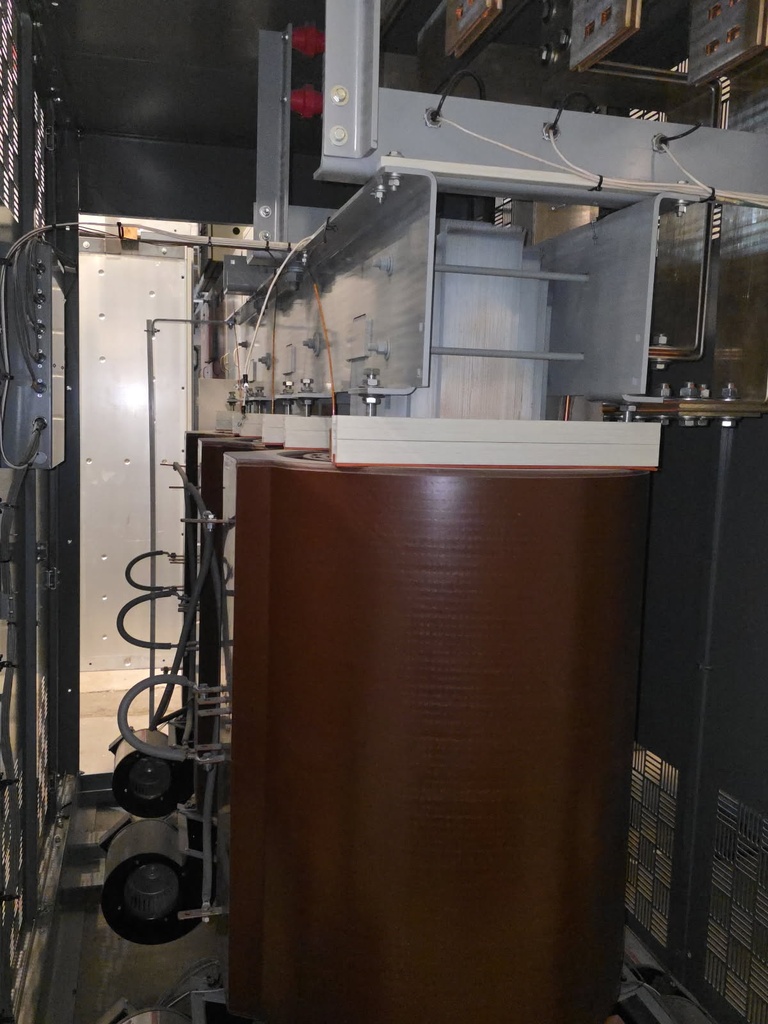

2500/3750 KVA, Pri 12470D, Sec 480Y/277, SQUARE D, INDOOR CAST COIL
Indoor Dry Type Transformer
Product Number:
045261
Full Product Description
T-6177

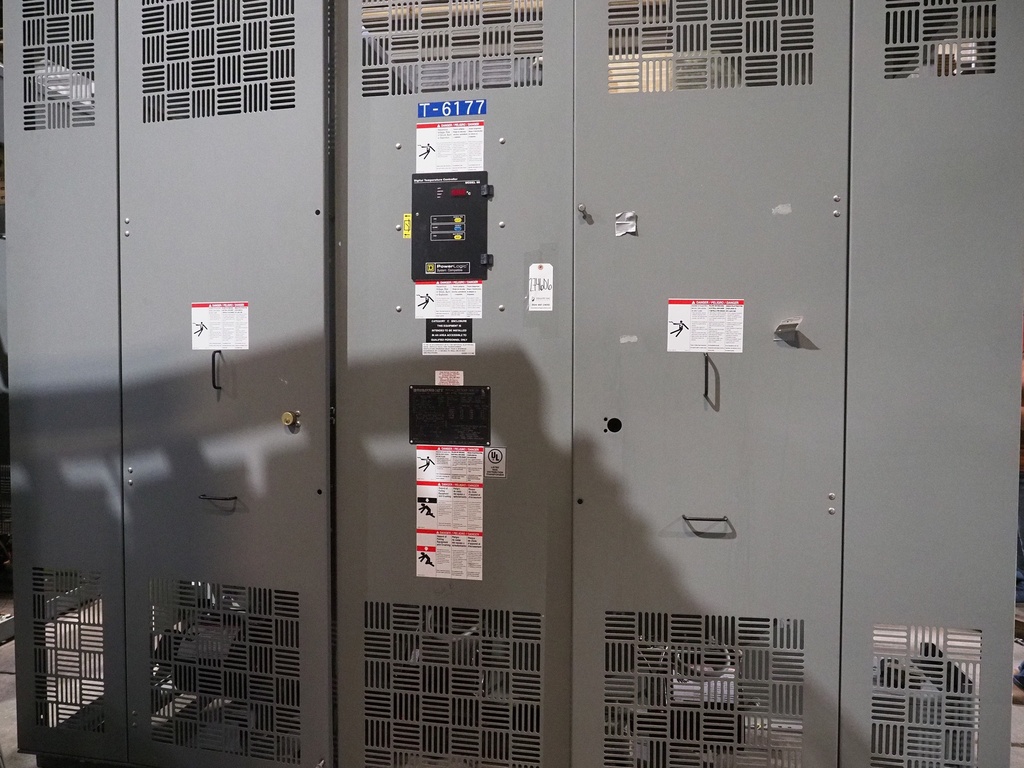

ONE (1) 2500/3750 KVA SQUARE D INDOOR DRY TYPE TRANSFORMER
3 PHASE, 60 HERTZ, CLASS AA/FA, 80 DEG C RISE,

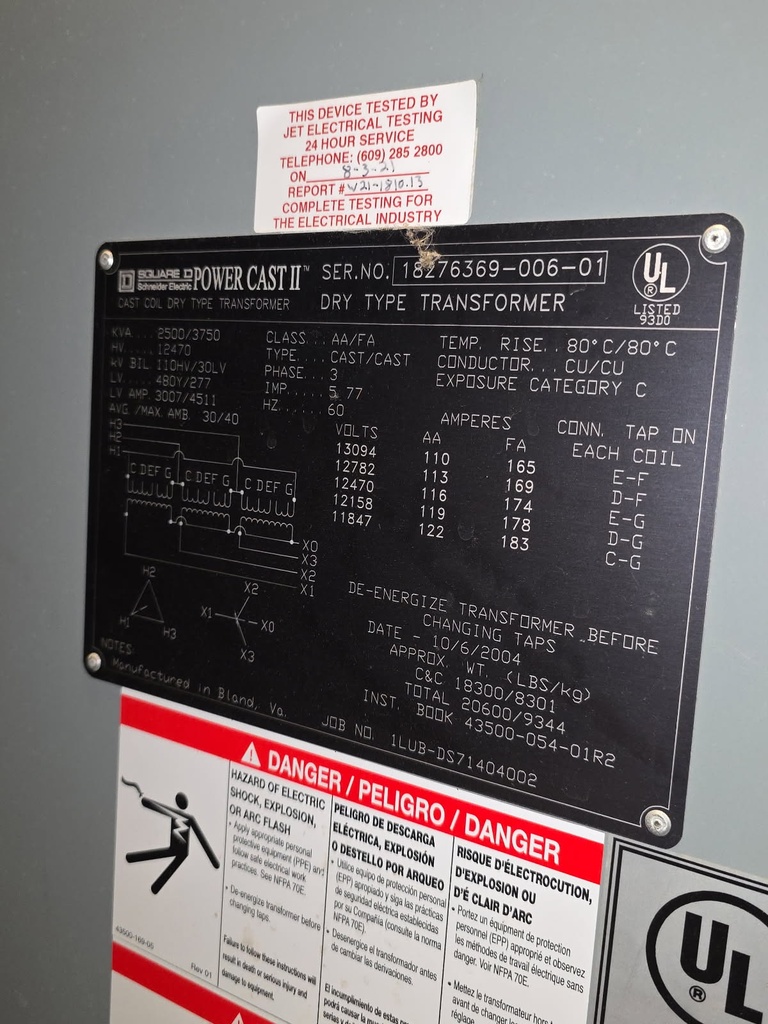

5.77% IMPEDIENCE, S/N:18276369-006-001
HV: 12470 DELTA BIL: 110 KV
LV: 480Y/277 BIL: 30 KV
TAPS:13094-12782-12470-12158-11847
TOTAL WEIGHT: 20600 LBS.
CORE AND COIL: 18300 LBS.
OVERALL DIMENSIONS:110"H X 70"D X 108"L<
CORE AND COIL DIMENSIONS:
