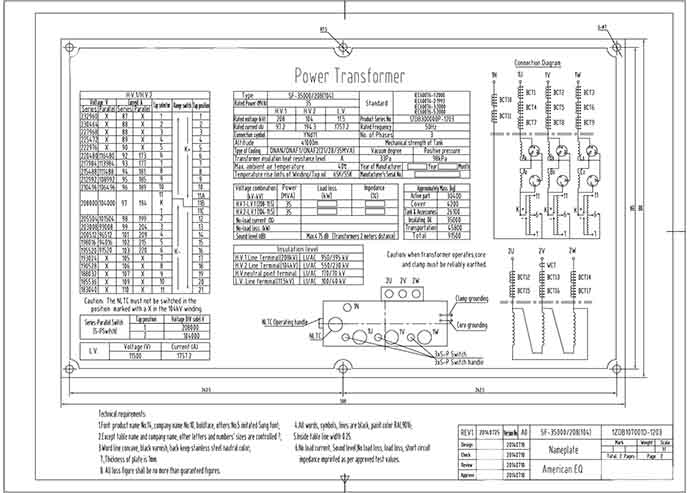

35000 KVA, Pri 208000Y X 104000Y, Sec 11500 D, CHINT SUBSTATION TRANSFORMER

ONE (1) 35 MVA CHINT SUBSTATION TRANSFORMER,
3 PH, 50 HZ, ONAN/ONAF1/ONAF2, 55/65 DEG C RISE,
. % IMPEDANCE,

HV1: 208000 WYE BIL: 395 KV
HV2: 104000 WYE BIL: 230 KV
LV: 11500 DELTA BIL: 40 KV

HV1 TAPS: 10 UP, 10 DOWN FROM CENTER TAP
HV2 TAPS: 5 UP, 5 DOWN FROM CENTER TAP

TOTAL WEIGHT: 91500 KG
CORE & COILS: 30400 KG
TANK & FITT.: 26100 KG
LIQUID-OIL: 35000 KG

DIMENSIONS: COMING SOON
