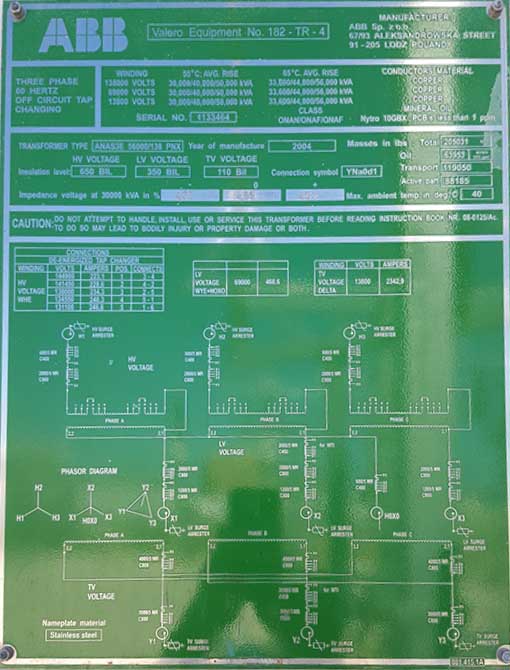

33.6/56 MVA, Pri 138000Y, Sec 69000 Y, ABB SUBSTATION TRANSFORMER

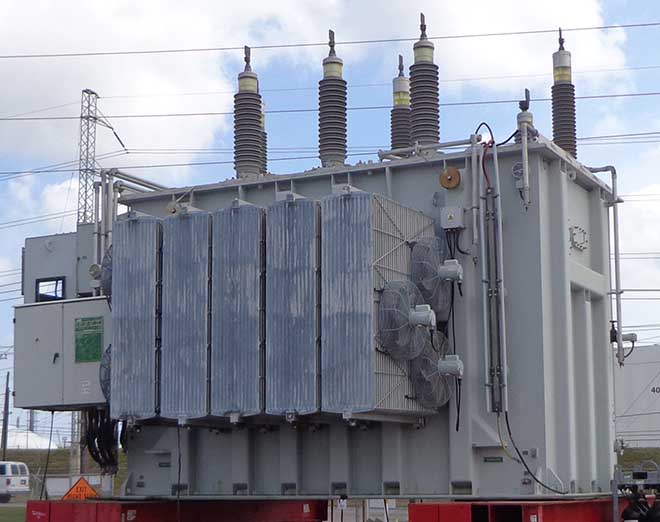

ONE (1) 33.6/44.8/50/56 MVA ABB SUBSTATION TRANSFORMER,
3 PH, ONAN/ONAF/ONAF, 60 HZ, OFF CIRCUIT TAP CHANGING,
4.35/4.59/4.98% IMPEDANCE, COPPER WINDINGS, 55/65 DEG C RISE,
TOP-TOP BUSHINGS, LIQUID LEVEL GAUGE, LIQUID TEMP GAUGE,
VACUUM PRESSURE GAUGE, PRESSURE RELEASE VALVE, DRAIN & SAMPLE
VALVE,

HV: 138000V WYE BIL: 650 KV
LV: 69000V WYE BIL: 650 KV
TV: 13800V DELTA BIL: 350 KV
HV TAPS: 144900-141450-138000-134550-131100

TOTAL WEIGHT: 205031 LBS
CORE & COILS: 88185 LBS
TANK & FITT.: 52893 LBS
LIQUID-OIL: 63953 LBS (8705 GAL)

DIMENSIONS: COMING SOON
