1200 Amp, GE, VB1, 15 KV, 1992,Power Circuit Breaker

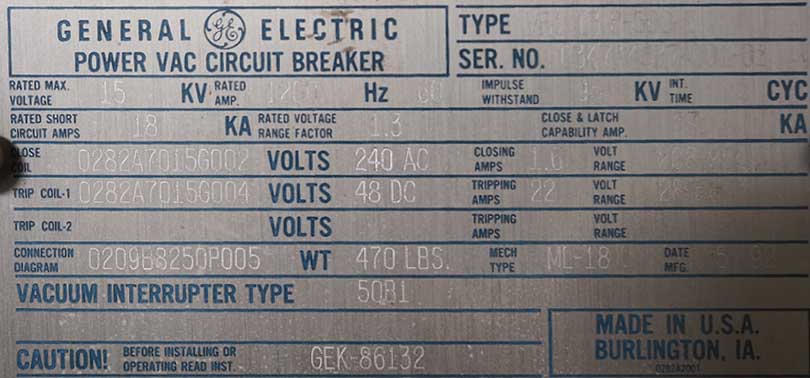

One (1)- 1200 AMP 15KV General Electric Power Vac Circuit Breaker VB-1

VB1 13.8-500-2
15kV Max
60hz
95kV BIL
5 Cycle Interrupt
18 KA Short Circuit Interrupt
1.3 Rated Voltage K Factor
37 KA Close and Latch

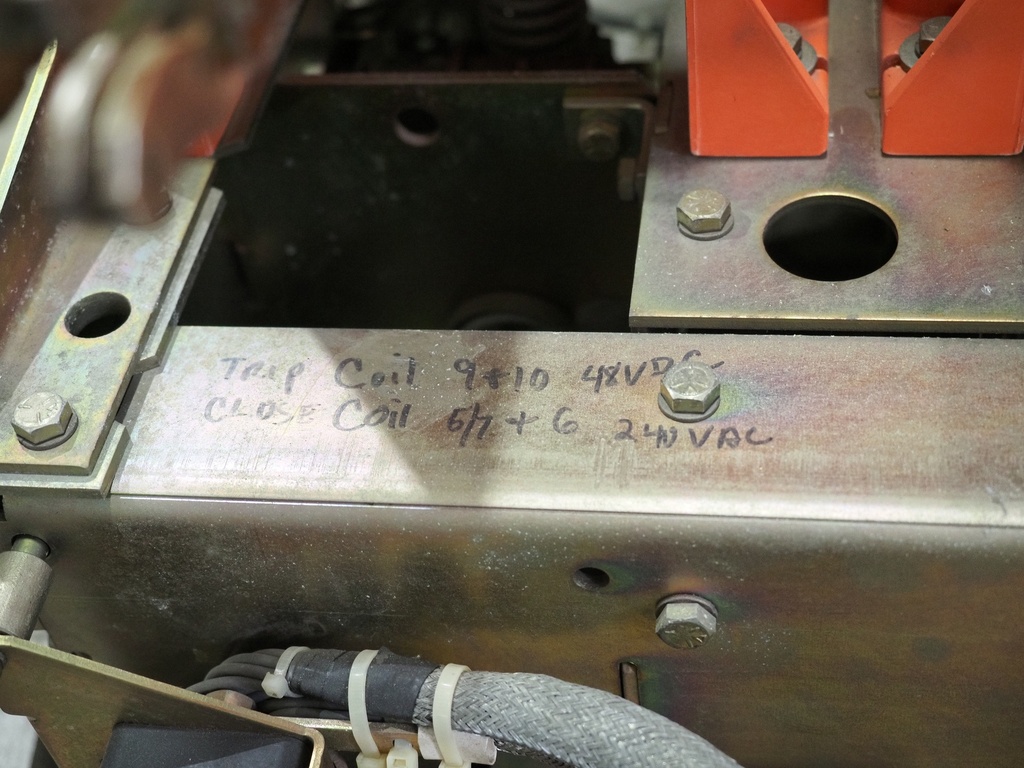

240 VAC Close
48 VDC Trip
Connection Diagram: 0209B8250P005
ML-18 Operating Mechanism
50B1 Interrupt Type
Weight 470lbs
IB: GEK-86132
