3000 Amp, ABB, 145-PM-63-30B, 145 KV POWER CIRCUIT BREAKER, 125 VDC C&T

CB-19749

ONE (1) 3000 AMP ABB SF6 POWER CIRCUIT BREAKER
TYPE 145-PM-63-30B
145 KV MAX
650 KV BIL
63.0 KA SHORT CIRCUIT
3.0 CYCLE INTERRUPTING TIME
1.0 RATED K FACTOR
87 PSIG OPERATING PRESSURE

OPERATING MECHANISM SPRING TRAVEL
TYPE HMB-2.0
125 VDC CLOSE
125 VDC TRIP (2 TRIP COILS)
120 VAC MOTOR

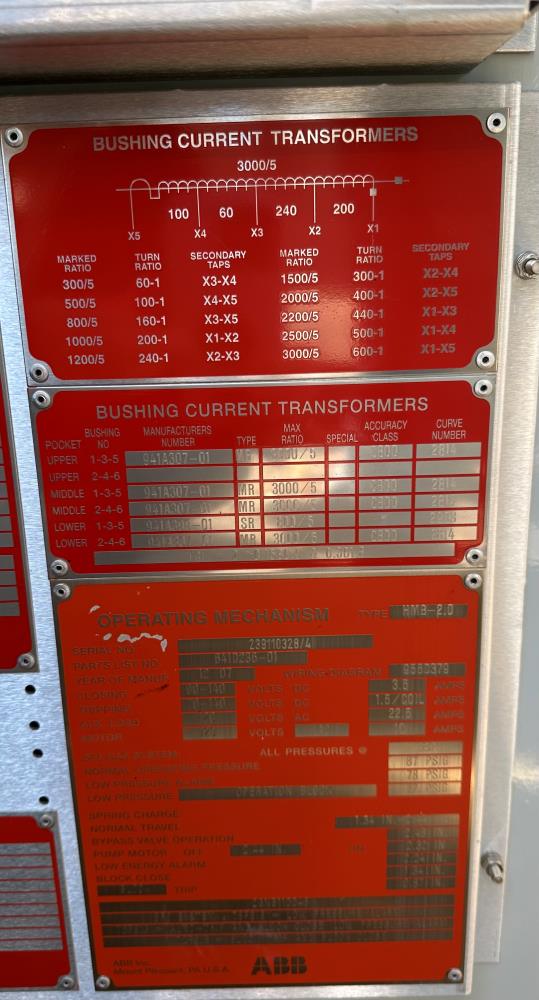

BUSHING CT'S
TWELVE (12) TYPE MR 3000:5 RATIO C800
THREE (3) TYPE SR 800/5 RATIO TRF

TOTAL WEIGHT: 8596 LBS
WEIGHT OF GAS PER BREAKER: 64 LBS
