25/30 MVA, Pri 115000 GRDY, Sec 13800 DELTA, CG MOBILE SUBSTATION-UNUSED

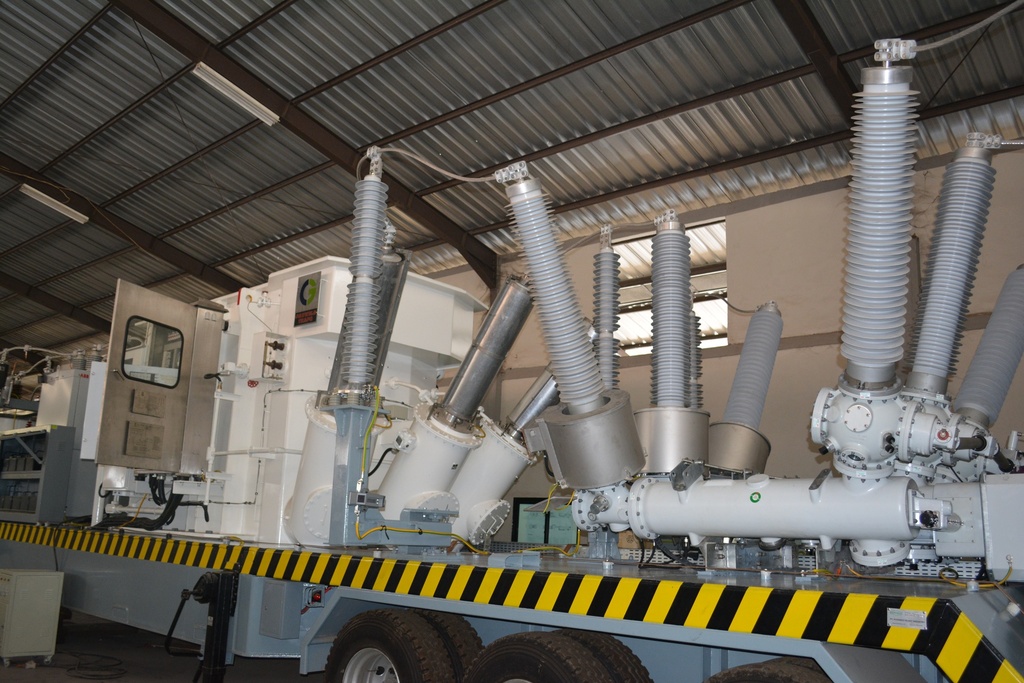

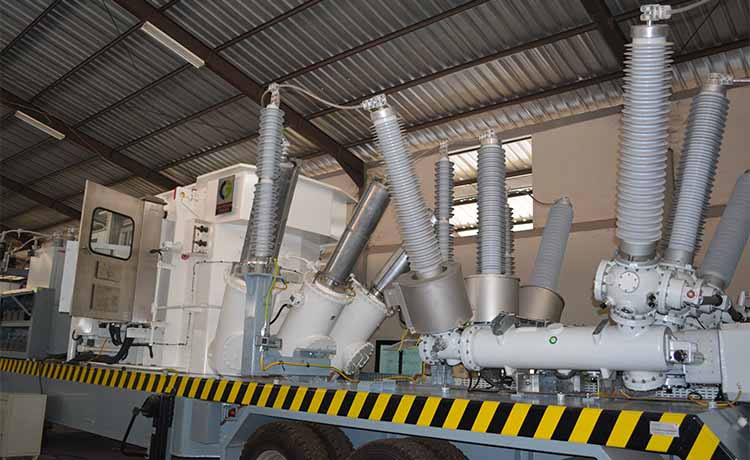

ONE (1) 25/30 MVA CG COMPLETE MOBILE SUBSTATION UNIT, UNUSED
3 PH, 60 HZ, COPPER WINDINGS,

HV: 115000 GRDY BIL: 550 KV
LV: 13800 DELTA BIL: 110 KV
TAPS: 2 +/- 2 %

INCLUDES:

(3) ABB CPB123 CAPACITIVE VOLTAGE TRANSFORMERS 115 KV TO 120 KV
(3) ABB PEXLIM P, 96 KV RATING, 77 KV MCOV SURGE ARRESTERS
(1) ABB HYBRID TYPE PASSMP COMBINED DISCONNECT SWITCH AND CIRCUIT
BREAKER, 145 KV, 3150 AMPS, 40 KA, 750 BIL, W/3X 1200:5 CT'S
(1) CG 25/30 MVA OIL FILLED TRANSFORMER
ODAF1/ODAF2, 65 DEG C RISE, 11% IMPEDANCE
(1) HAWKER SIDDELEY 13.8 KV CIRCUIT BREAKER, TYPE HORIZON 38
38 KV MAX, 1250 AMPS, 25 KA, 170 KV BIL
(1) CONTROL PANEL
(1) BATTERY AND BATTERY CHARGER 12 VDC
(1) 15 KV, 1250 AMP, 25 KA DISCONNECT SWITCHES
(3) SURGE ARRESTERS, 12 KV

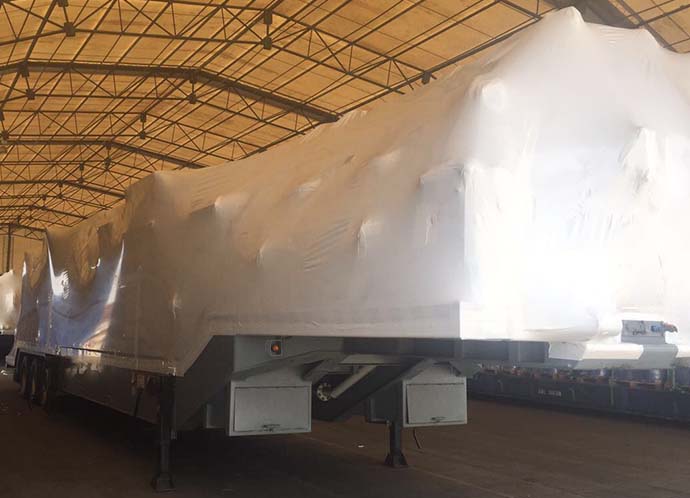

(1) GEMALA STEERABLE, 3 FLEX AXILE TRAILER

SHIPPING DIMENSIONS: 59'L x 9'3"W x 13'H (18000mm X 2800mm X 3950mm)
SHIPPING WEIGHT: 126,000 lbs (57 TONNES)
