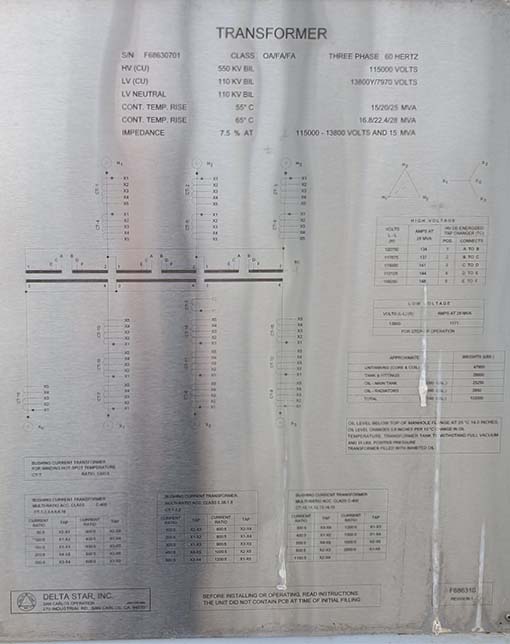

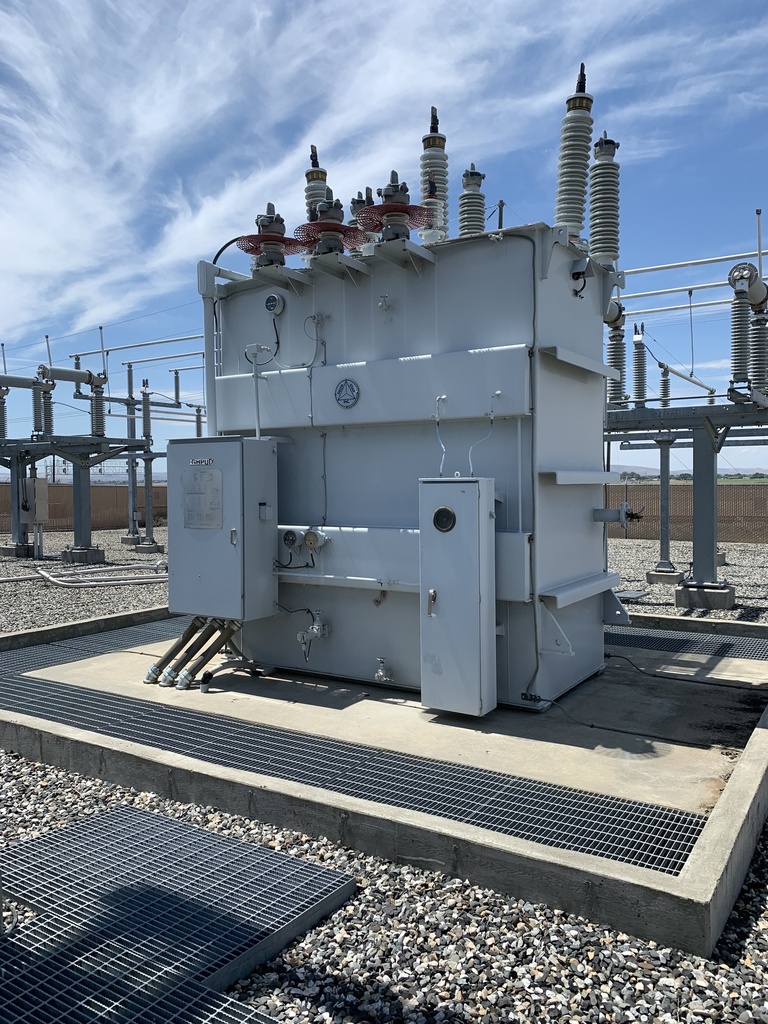

15000 KVA, Pri 115000 D, Sec 13800 Y, DELTA STAR SUBSTATION TRANSFORMER

ONE (1) 15/16.8/20/22.4/25/28 MVA DELTA STAR SUBSTATION TRANSFORMER
3 PH, 60 HZ, OA/FA/FA, 7.6% IMPEDANCE, 55/65 DEG C RISE,
COPPER WINDINGS, LIQUID LEVEL GAUGE, LIQUID TEMP GAUGE,
SUDDEN PRESSURE RELAY, PRESSURE RELEASE VALVE, WINDING
TEMP GAUGE, DRAIN & SAMPLE VALVE,

HV: 115000 DELTA BIL: 550 KV
LV: 13800 WYE BIL: 110 KV
TAPS: 120750-117575-115000-112125-109250

TOTAL WEIGHT: 102000 LBS
CORE & COILS: 47900 LBS
TANK & FITT.: 26000 LBS
LIQUID-OIL: 27800 LBS (3760 GAL)

OVERALL DIMENSIONS: 208"H x 159"W x 151"L
SHIPPING DIMENSIONS: 150"H x 100"W x 151"L
SHIPPING WEIGHT: 94000 LBS
