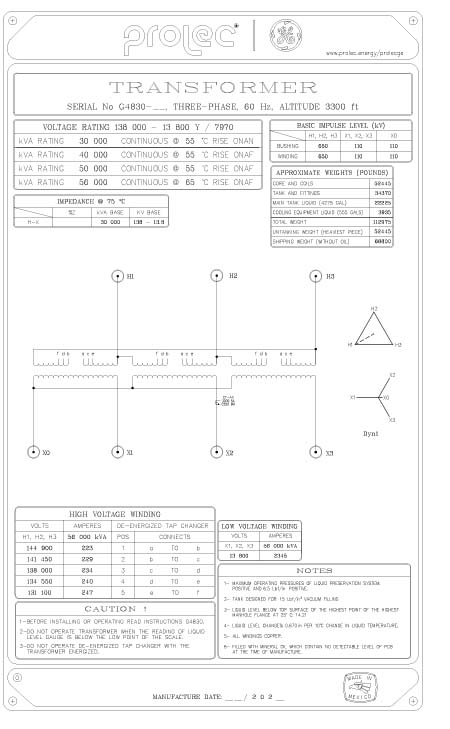

30000 KVA, Pri 138000 D, Sec 13800 Y, GE PROLEC SUBSTATION TRANSFORMER:2

ONE (1) 30/40/50/56 MVA GE PROLEC SUBSTATION TRANSFORMER, NEW
3 PH, 60 HZ, ONAN/ONAF/ONAF, . % IMPEDANCE,
55/65 DEG C RISE, COPPER WINDINGS, LIQUID LEVEL GAUGE,
LIQUID TEMP GAUGE, RAPID PRESSURE RELAY, PRESSURE
RELEASE DEVICE, PRESSURE-VACUUM GAUGE, OIL PRESERVATION
SYSTEM, DRAIN & SAMPLE VALVE

HV: 138000 DELTA BIL: 650 KV
LV: 13800 WYE BIL: 110 KV
TAPS: 144900-141450-138000-134550-131100

TOTAL WEIGHT: 112975 LBS
CORE & COILS: 52445 LBS
TANK & FITT.: 34370 LBS
LIQUID-OIL: 26160 LBS (4830 GAL)

OVERALL DIMENSIONS: 198.10"H x 285.32"L x 195.84"W
SHIPPING DIMENSIONS: 132.29"H x 161.07"L x 111.69"W
