  2. 10000 KVA, Pri 230000 D, Sec 13800 GRDY, WAUKESHA SUBSTATION TRANSFORMER

10000 KVA, Pri 230000 D, Sec 13800 GRDY, WAUKESHA SUBSTATION TRANSFORMER

https://belyeapower.redstormlabs.com/web/image/product.template/34839/image_1920?unique=632d99c

SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045234
    Request Quote

    Full Product Description

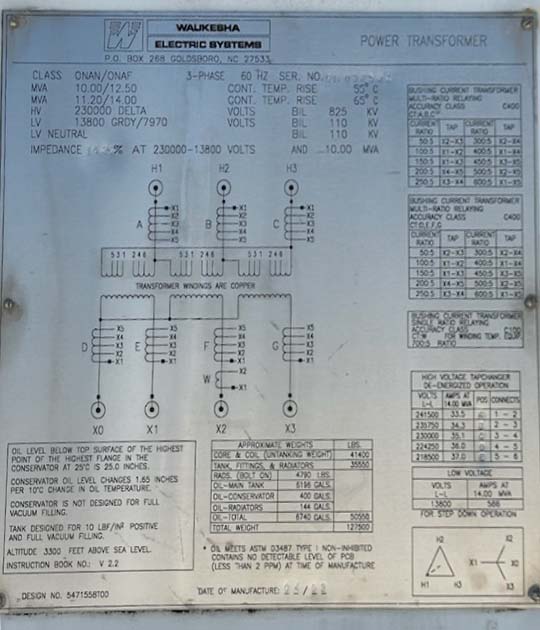

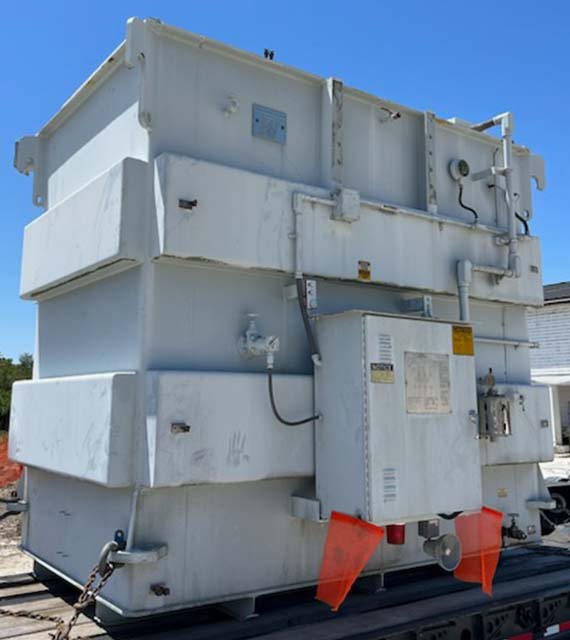

    ONE (1) 10/11.2/12.5/14 MVA WAUKESHA SUBSTATION TRANSFORMER,
    60 HZ, 3 PH, 55/65 DEG C RISE, ONAN/ONAF, 10.26% IMPEDANCE,
    COPPER WINDINGS, OIL CONSERVATOR SYSTEM, LIQUID TEMP GAUGE,
    LIQUID LEVEL GAUGE, PRESSURE RELEASE VALVE, DRAIN & SAMPLE
    VALVE,

    HV: 230000 DELTA BIL: 825 KV
    LV: 13800GRDY/7970 BIL: 110 KV
    LV NEUTRAL: BIL: 110 KV

    TAPS: 241500-235750-230000-224250-218500

    TOTAL WEIGHT: 127500 LBS
    CORE & COILS: 41400 LBS
    TANK & FITT.: 35550 LBS
    LIQUID-OIL: 50550 LBS (6740 GAL)

    DIMENSIONS:
