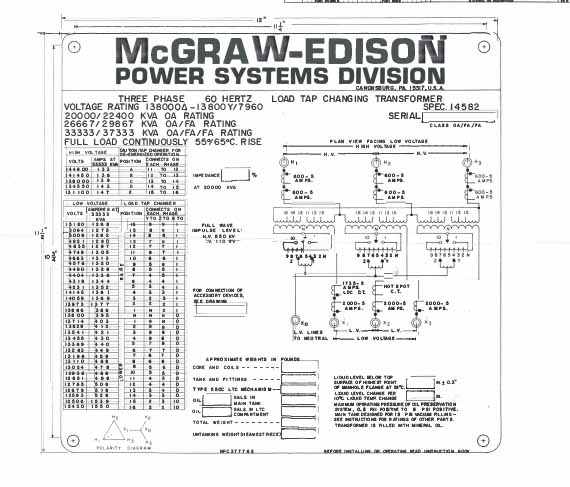

  2. 20/37 MVA, PRI 138000D, SEC 13800Y, MCGRAW-EDISON LOAD TAP CHANGING TRANSFORMER

20/37 MVA, PRI 138000D, SEC 13800Y, MCGRAW-EDISON LOAD TAP CHANGING TRANSFORMER

https://belyeapower.redstormlabs.com/web/image/product.template/34826/image_1920?unique=632d99c

SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045221
    Request Quote

    Full Product Description




    ONE (1) 20/37 MVA MCGRAW-EDISON LOAD TAP CHANGING SUBSTATION TRANSFORMER
    60 HZ, 3PH, 55/65 DEG C RISE, OA/FA/FA, PRESSURE RELEASE
    DEVICE, HV TAP CHANGER, LIQUID LEVEL GAUGE, LIQUID TEMP GAUGE,
    COPPER WINDINGS

    HV: 138000 DELTA BIL: 550 KV
    LV: 13800Y/7960 BIL: 110 KV

    TAPS: HV: 144900-141450-138000-134550-131100
    LV: 32 STEPS, 16 UP, 16 DOWN

    TOTAL WEIGHT: 182000 LBS
    CORE & COILS: 82600 LBS
    TANK & FITT.: 43900 LBS
    LIQUID-OIL: 54600 LBS (7280 GAL)

    SHIPPING WEIGHT: 120600 LBS (LESS OIL)

    DIMENSIONS: 236"W x 153"D x 256"H
    SHIPPING DIMS: 236"W x 153"D x 179"H
