    Product Number: 045216
    Request Quote

    Full Product Description



    T-6160

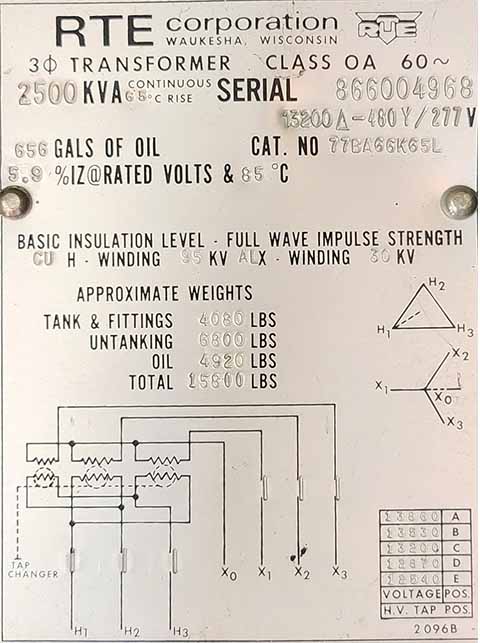

    ONE (1) 2500 KVA RTE CORPORATION PADMOUNT TRANSFORMER,
    3PH, 60Hz, 5.9% IMPEDANCE, OA, 65 DEG C RISE,
    LIVE FRONT, RADIAL FEED, HV- CU WINDING, LV- AL
    WINDING, LIQUID LEVEL GAUGE, LIQUID TEMP GAUGE,
    PRESSURE RELEASE VALVE, DRAIN & SAMPLE VALVE,


    HV: 13200 DELTA BIL: 95 KV
    LV: 480Y/277 BIL: 30 KV

    TAPS: 13860-13530-13200-12870-12540

    TOTAL WEIGHT: 15800 LBS
    CORE & COILS: 6800 LBS
    TANK & FITT.: 4080 LBS
    LIQUID-OIL: 4920 LBS (656 GAL)

    DIMENSIONS:
