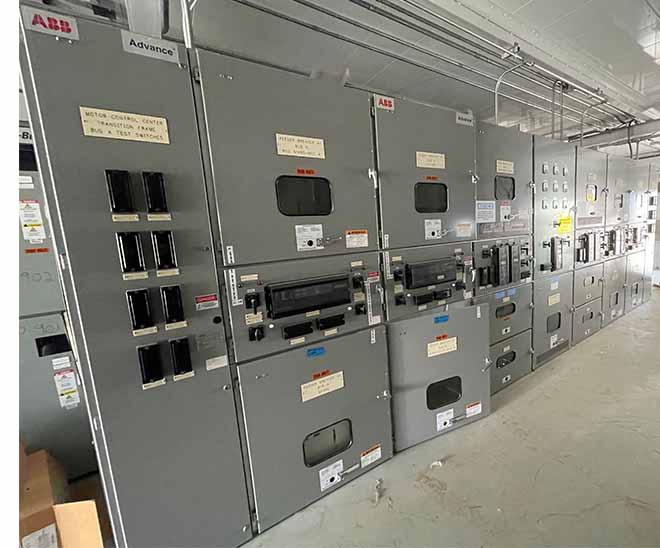

3000 Amp, ABB, ADVAC, 4760 V., MTM SWITCHGEAR LINE-UP

CB-19618 THROUGH CB-19628

ONE (1) INDOOR ABB MAIN-TIE-MAIN LINE-UP CONSISTING OF:
2x 3000 AMP MAINS
1x 3000 AMP TIE
8x 1200 AMP FEEDERS
ONE INCOMING BUS COMPARTMENT

3000 Amp ABB ADVAC Circuit Breaker Main/Tie
400 Amp Cap Switching
4.76KV Max
40KA Short Circuit
1.00 Voltage Range Factor
60KV BIL
50/60 HZ
5 Cycles
125 VDC Charge/Close/Open
ANSI C37.04
ADVAC AA3C3777XX000UP

1200 Amp ABB ADVAC Circuit Breaker Feeders
400 Amp Cap. Switching
4.75KV Max
40KA Short Circuit
1.0 Voltage Range Factor
60KV BIL
50/60 HZ
5 Cycles
125 VDC Charge/Close/Open
ANSI C37.04
ADVAC AA3C1777XX000UP
