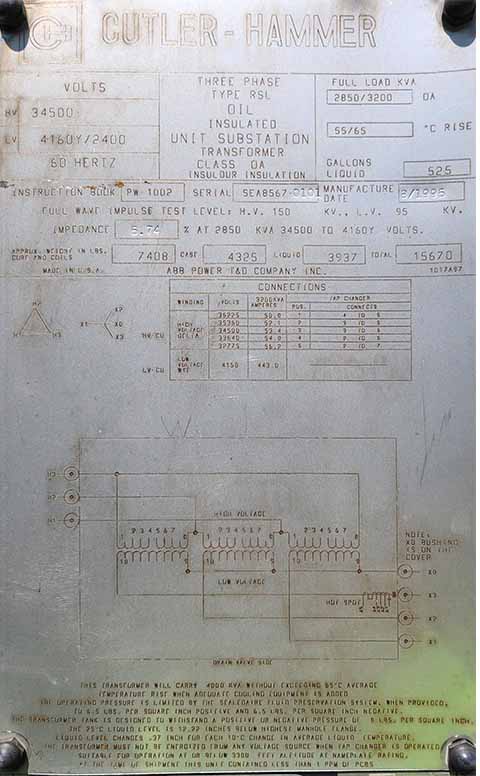

2850 KVA, Pri 34500 D, Sec 4160 Y, CUTLER HAMMER SUBSTATION TRANSFORMER

T-6173

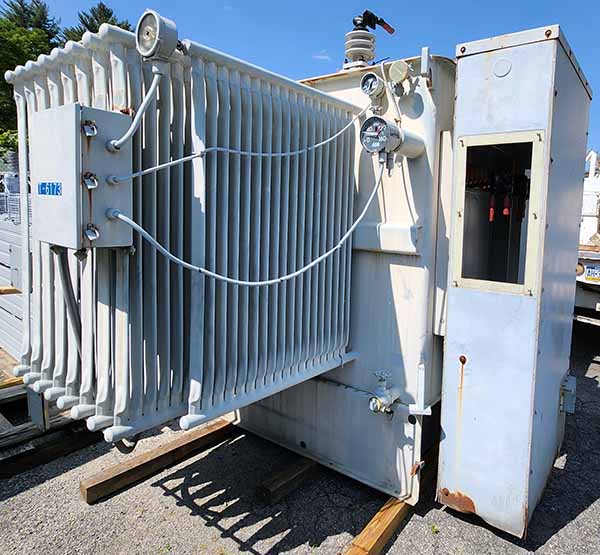

ONE (1) 2850/3200 KVA CUTLER HAMMER SUBSTATION TRANSFORMER
3 PH, 60 HZ, 5.77% IMPEDANCE, CLASS OA, 55/65 DEG C RISE,
LIQUID TEMP GAUGE, LIQUID TEMP GAUGE, WINDING TEMP GAUGE,
VACUUM PRESSURE GAUGE, DRAIN & SAMPLE VALVE, PRESSURE
RELEASE VALVE, TAP CHANGER, SIDE-SIDE BUSHINGS,
COPPER WINDINGS, INSTR BOOK: PW-1002, X0 BUSHING-TOP

HV: 34500 DELTA HV BIL: 150 KV
LV: 4160Y/2400 LV BIL: 95 KV

TAPS: 36225-35360-34500-33640-32775

TOTAL WEIGHT: 15670 LBS
CORE & COILS: 7408 LBS
TANK & FITT.: 4325 LBS
LIQUID-OIL: 3937 (525 GAL)

DIMENSIONS: 85.5"H x 99"L x 138"D
