  2. 3000 KVA, Pri 34500 D, Sec 13200 Y, WESTINGHOUSE SUBSTATION TRANSFORMER

3000 KVA, Pri 34500 D, Sec 13200 Y, WESTINGHOUSE SUBSTATION TRANSFORMER

https://belyeapower.redstormlabs.com/web/image/product.template/34770/image_1920?unique=632d99c

SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045165
    Request Quote

    Full Product Description

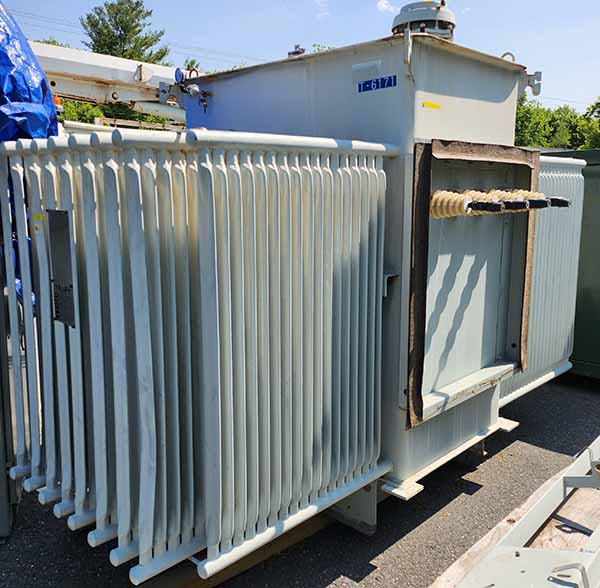

    T-6171

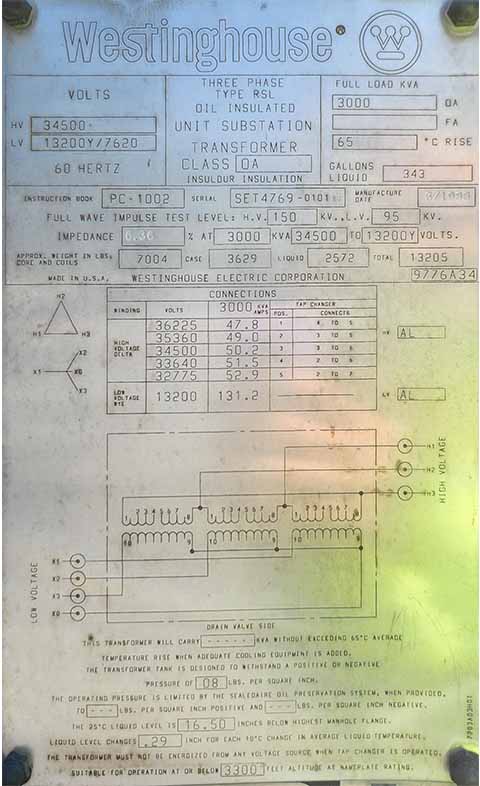

    ONE (1) 3000 KVA WESTINGHOUSE SUBSTATION TRANSFORMER,
    3 PH, 60 HZ, 6.36% IMPEDANCE, 65 DEG C RISE, CLASS OA,
    LIQUID TEMP GAUGE, LIQUID LEVEL GAUGE, PRESSURE GAUGE,
    DRAIN & SAMPLE VALVE, PRESSURE RELEASE VALVE, TAP CHANGER,
    SIDE-SIDE BUSHINGS, INSTR BOOK: PC-1002, AL WINDINGS

    HV: 34500 DELTA HV BIL: 150 KV
    LV: 13200Y/7620 LV BIL: 95 KV

    TAPS: 36225-35360-34500-33640-32775

    TOTAL WEIGHT: 13205 LBS
    CORE & COILS: 7004 LBS
    TANK & FITT.: 3629 LBS
    LIQUID-OIL: 2572 LBS (343 GAL)

    DIMENSIONS: 81"H x 85"L x 119"D
