  2. 750 KVA, Pri 4160 D, Sec 480Y/277, LF/RF RTE PADMOUNT TRANSFORMER

750 KVA, Pri 4160 D, Sec 480Y/277, LF/RF RTE PADMOUNT TRANSFORMER

https://belyeapower.redstormlabs.com/web/image/product.template/34746/image_1920?unique=e118c1b

PADMOUNT TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045141
    Request Quote

    Full Product Description

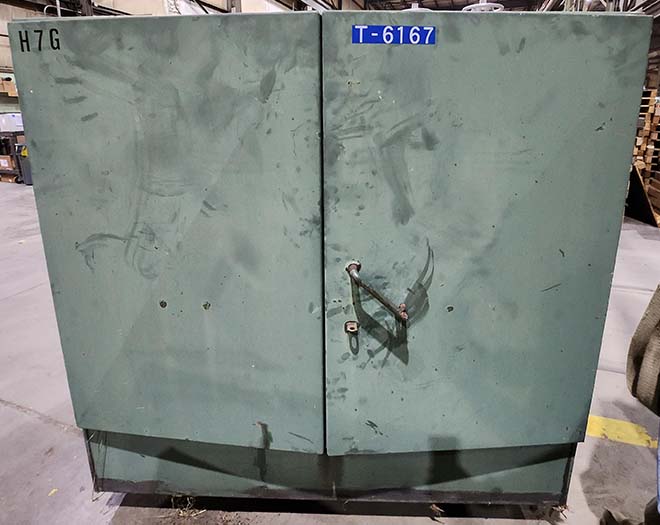

    T-6167

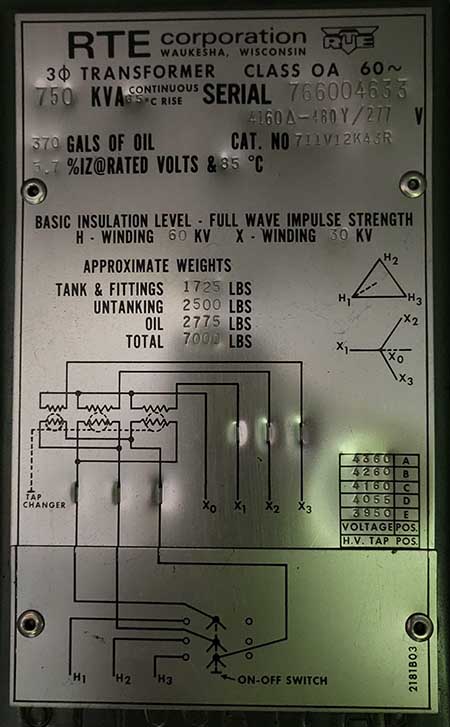

    ONE (1) 750 KVA RTE PADMOUNT TRANSFORMER
    LIVE FRONT, RADIAL FEED, OA, 3 PH, 60 HZ, 5.7% IMPEDANCE,
    65 DEG C RISE, LIQUID TEMP GAUGE, LIQUID LEVEL GAUGE, TAP
    CHANGER, PRESSURE RELEASE DEVICE, DRAIN & SAMPLE VALVE,


    HV: 4160 DELTA BIL: 60 KV
    LV: 480Y/277 BIL: 30 KV
    TAPS: 4360-4260-4160-4055-3950

    TOTAL WEIGHT: 7000 LBS
    CORE & COILS: 2500 LBS
    TANK & FITT.: 1725 LBS
    LIQUID-OIL: 2775 LBS (370 GAL)

    DIMENSIONS: 58.5"H x 75.5"L x 62"D
