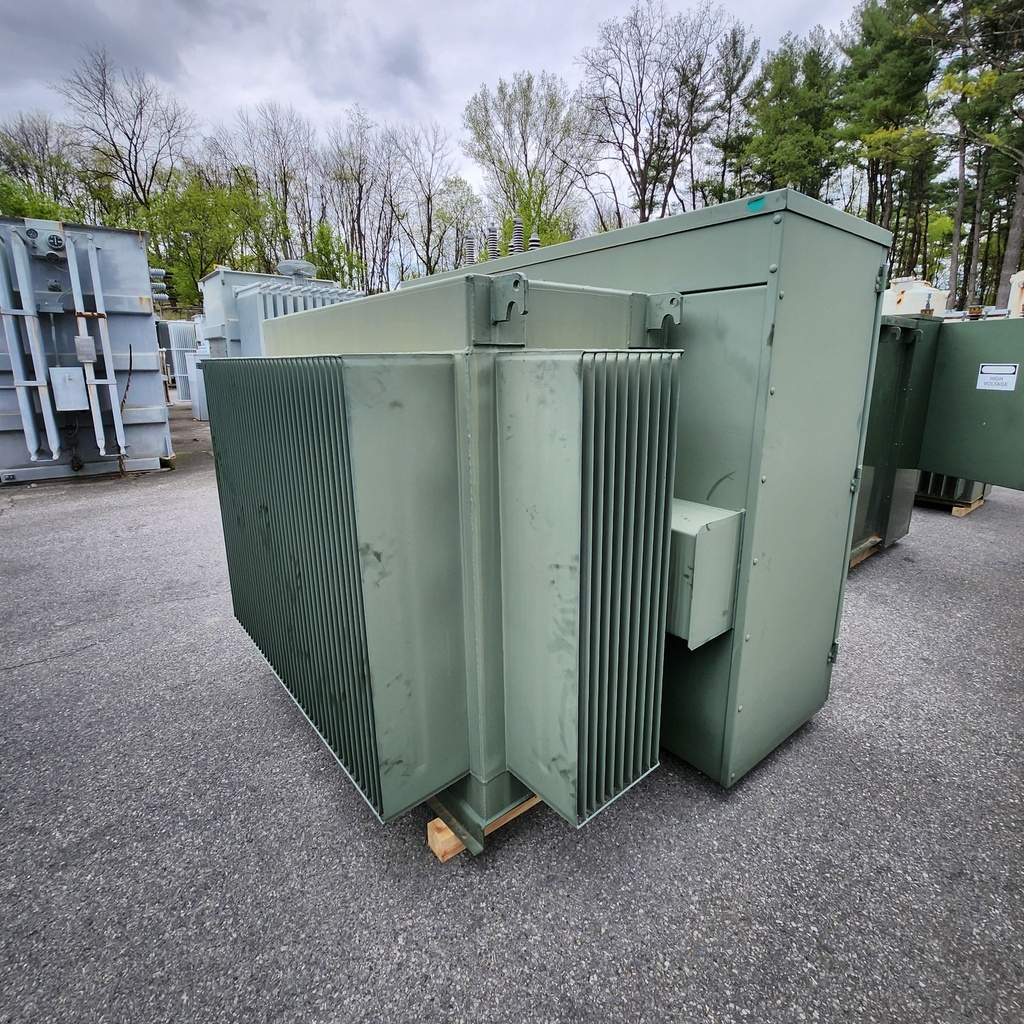

1500 KVA, Pri 33000Y, Sec 4160Y/2400, DF/RF PAUWELS PADMOUNT TRANSFORMER

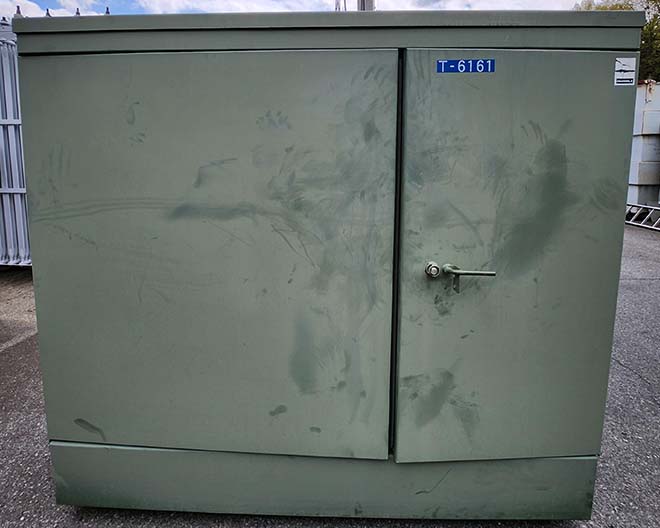

T-6161

ONE (1) 1500 KVA PAUWELS PADMOUNT TRANSFORMER, DEAD FRONT, RADIAL FEED
3 PH, 60 HZ, 5.75% IMPEDANCE, 65 DEG C RISE, COPPER

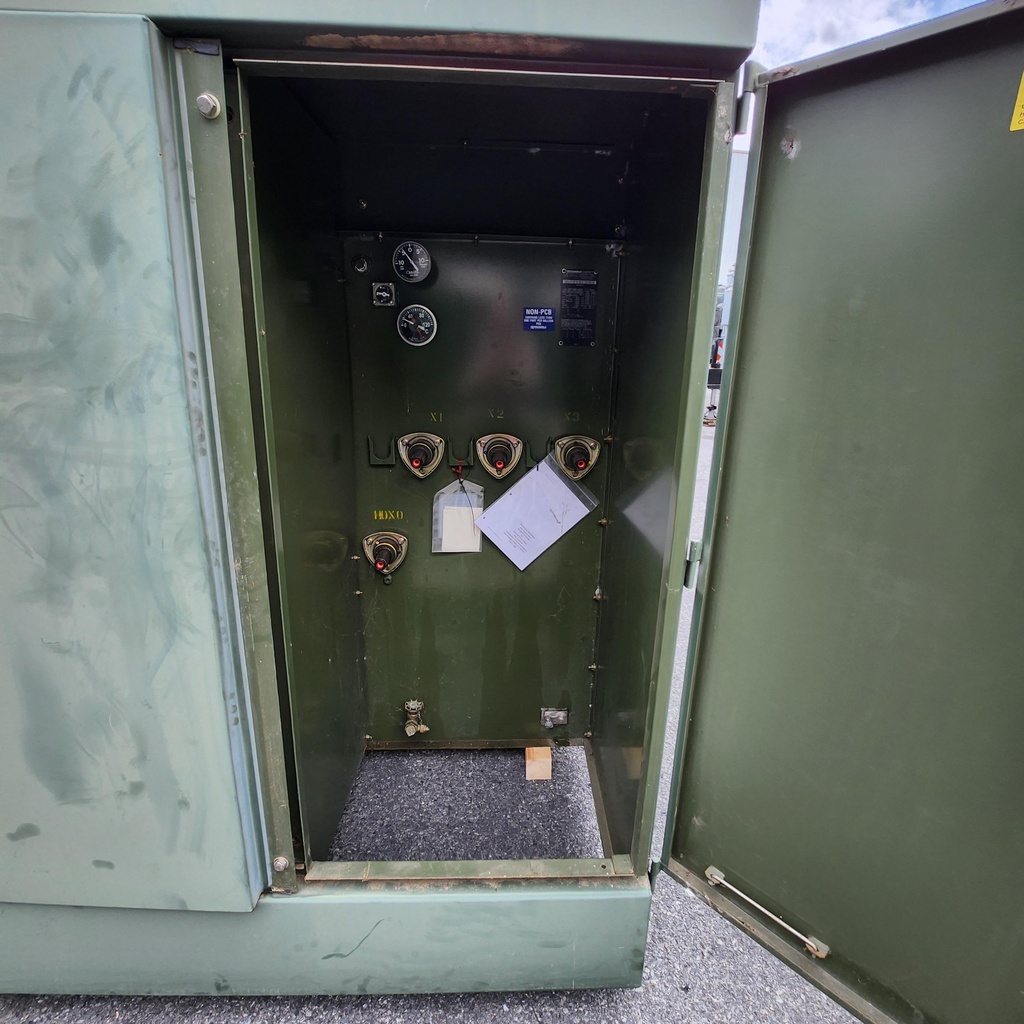

WINDINGS, LIQUID LEVEL GAUGE, LIQUID TEMP GAUGE, TAP CHANGER,
DRAIN & SAMPLE VALVE

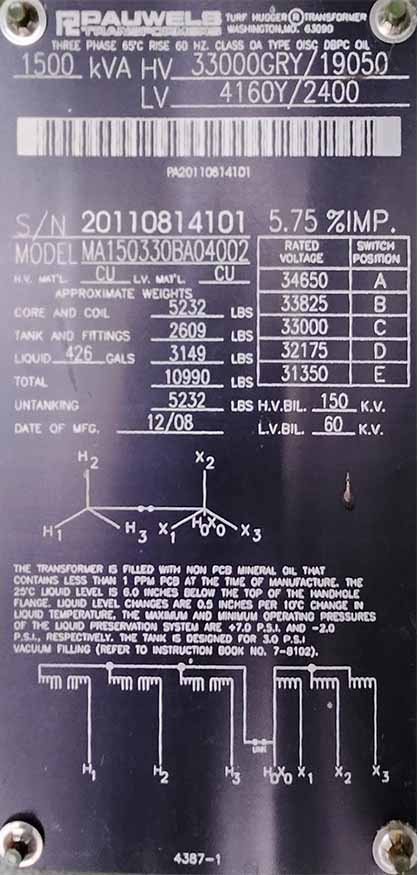

HV: 33000 GROUND WYE BIL: 150 KV
LV: 4160Y/2400 BIL: 60 KV
TAPS: 34650-33825-33000-32175-31350

TOTAL WEIGHT: 10990 LBS
CORE & COILS: 5232 LBS
TANK & FITT.: 2609 LBS
FLUID-OIL: 3149 (426 GAL)

DIMENSIONS: 72"H x 91"L x 74"D
