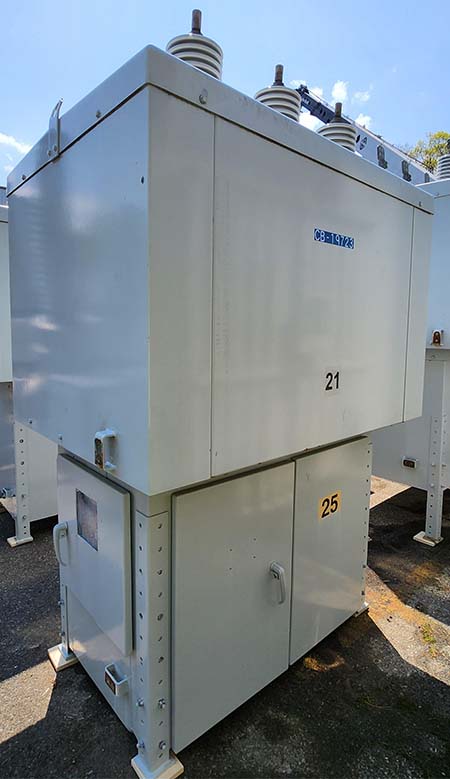

1200 Amp, WESTINGHOUSE, V, 38000 V., SUBSTATION VACUUM BREAKER

CB-19723

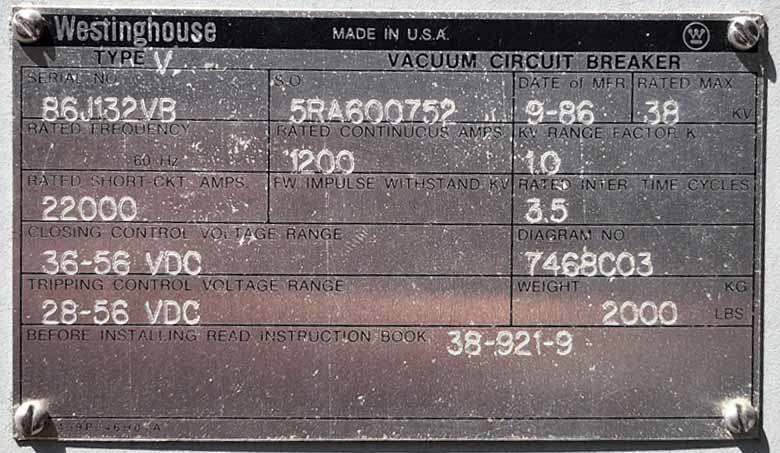

ONE (1) 1200 AMP WESTINGHOUSE VACUUM CIRCUIT BREAKERS
38 KV MAX
22 KA SHORT TIME
150 KV BIL
1.0 RATED K FACTOR
3.5 CYCLE INTERRUPTING
36-56 VDC CLOSING
28-56 VDC TRIP
TOTAL WEIGHT: 2000 LBS
DIAGRAM: 7468CO3


SEL 351S RELAY
48 VDC INPUT, 300V WYE/DELTA5-PH, 5-N
UL LISTED, CSA LISTED
