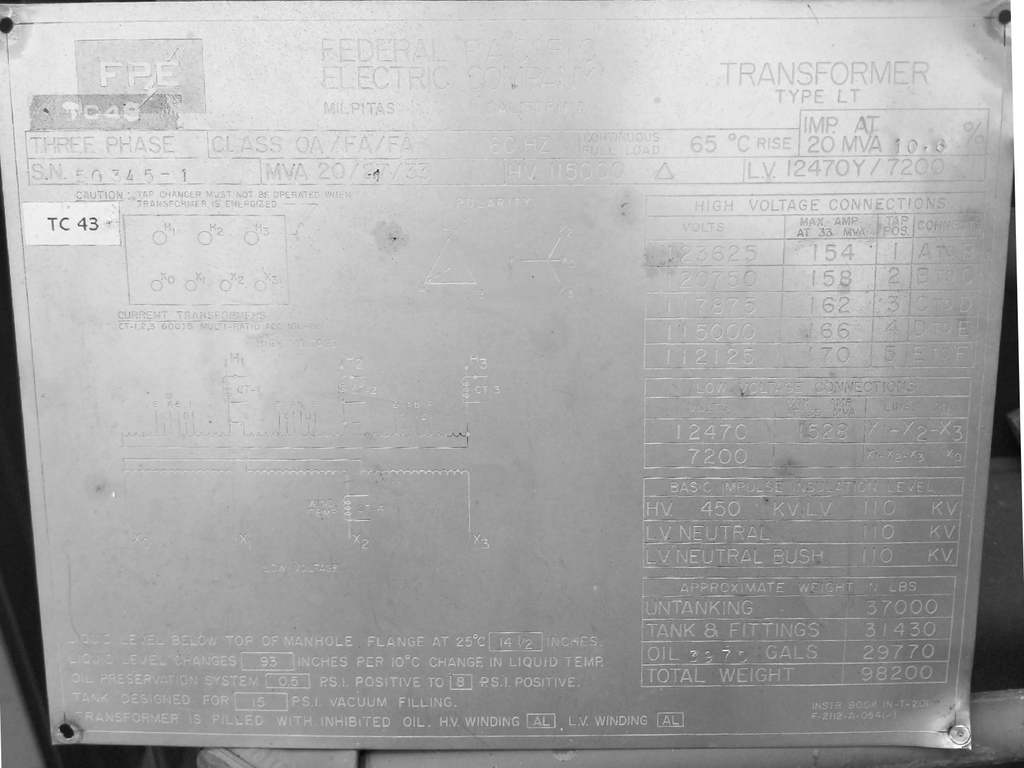

20/27/33 KVA, Pri 115000D, Sec 12470Y/7200 FEDERAL PACIFIC SUBSTATION TRANSFORMER

JVT-3896

ONE (1) 20/27/33 MVA FEDERAL PACIFIC SUBSTATION TRANSFORMER,
3 PH, 60 HZ, 10.6% IMPEDANCE, OA/FA/FA, 65 DEG C RISE,
AL WINDINGS, LIQUID LEVEL GAUGE, LIQUID TEMP GAUGE,
VACUUM PRESSURE GAUGE, PRESSURE RELEASE DEVICE, DRAIN
& SAMPLE VALVE,

HV: 115000 DELTA BIL: 450 KV
LV: 12470Y/7200 BIL: 110 KV

TAPS: 123625-120750-117875-115000-112125

TOTAL WEIGHT: 98200 LBS
CORE & COILS: 37000 LBS
TANK & FITT.: 31430 LBS
LIQUID- OIL: 29770 LBS (3970 GAL)

DIMS: 147.25" W x 114" L x 168" H
SHIPPING DIMS: 147.25" W x 114" L x 141.5" H
