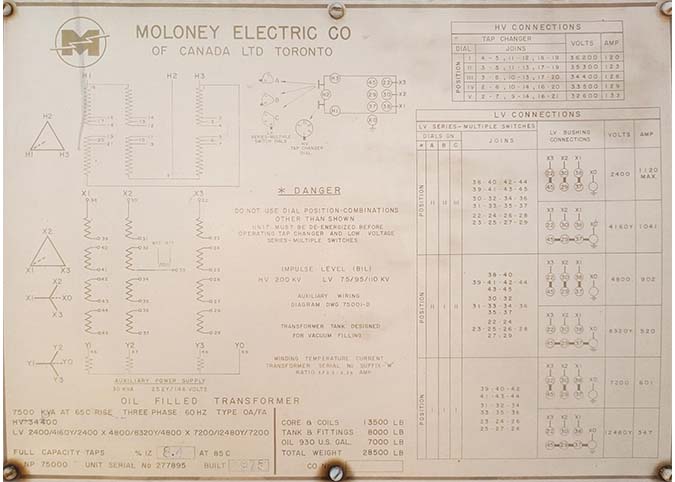

7500 KVA, Pri 34400 D, Sec 2400/4160Y, MOLONEY MOBILE SUBSTATION

T-6158

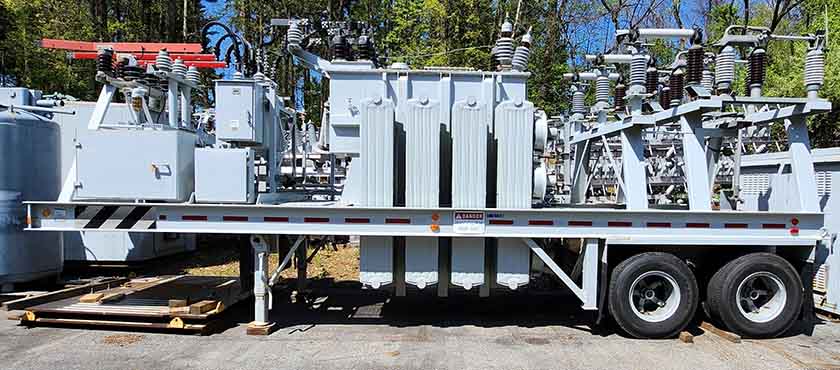

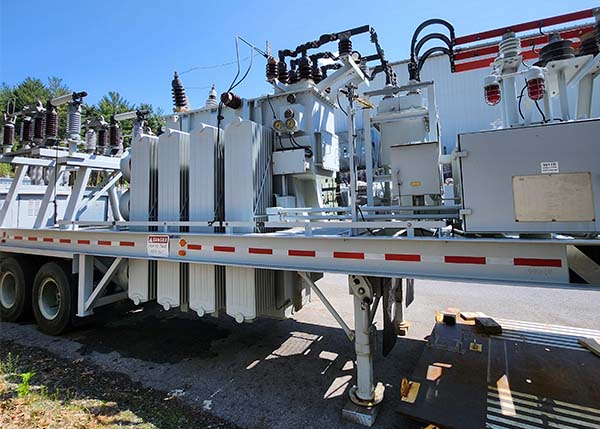

ONE COMPLETE MOBILE SUBSTATION CONSISTING OF FOLLOWING:

ONE(1) 7500 KVA MOLONEY TRANSFORMER COMPLETE MOBILE SUBSTATION
3 PHASE, 60 HERTZ, 65 DEG C RISE, 8.4% IMPEDANCE
WINDING TEMPERATURE GAUGE, OIL TEMPERATURE GAUGE
VACUUM PRESSURE GAUGE, PRESSURE RELIEF DEVICE
DRAIN AND SAMPLE VALVE, 8 X NON-REMOVABLE TYPE COOLER
6 X COOLING FAN - TYPE 1/4 HP 230V / 3 PHASE / 60 HERTZ

HV: 34400 DELTA HV BIL: 200KV
LV: 2400/4160Y LV BIL: 75KV
TAPS: 36200-35300-34400-33500-32600

TANK & FITTINGS: 8000 LBS.
CORE & COIL: 13500 LBS.
FLUID - OIL: 7000 LBS. (930 GALS.)
TOTAL WEIGHT: 28500 LBS.

ONE (1) 600 AMP ITE 38 KV TTR6 DISCONNECT SWITCH
34.5 KV, 200 KV BIL, 40KA MOM.
3 POLE, VERTICAL BREAK, GROUP OPERATED
SERIAL NO. 11076

ONE (1) 1120 AMP MCGRAW EDISION 15.5 KV RECLOSER
3 PHASE, ELECTRONICALLY CONTROLLED FORM 3
SERIAL NO. 18264, MOTOR OPERATED TYPE "ME"
110 KV BIL, 16 KA INTERRUPT, 13.8 KV

SUBSTATION DIMENSIONS: 29'10"L x 13'H x 84"W
TANK & FITTINGS: 8000 LBS.
CORE & COIL: 13500 LBS.
FLUID - OIL: 7000 LBS. (930 GALS.)
TRAILER & ACCS: 15500 LBS.
TOTAL WEIGHT: 44000 LBS.
