  2. 300 KVA, Pri 2400 D, Sec 480Y/244 GENERAL ELECTRIC PADMOUNT TRANSFORMER LF/RF

300 KVA, Pri 2400 D, Sec 480Y/244 GENERAL ELECTRIC PADMOUNT TRANSFORMER LF/RF

https://belyeapower.redstormlabs.com/web/image/product.template/34709/image_1920?unique=e118c1b

PADMOUNT TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045104
    Request Quote

    Full Product Description


    T-6166

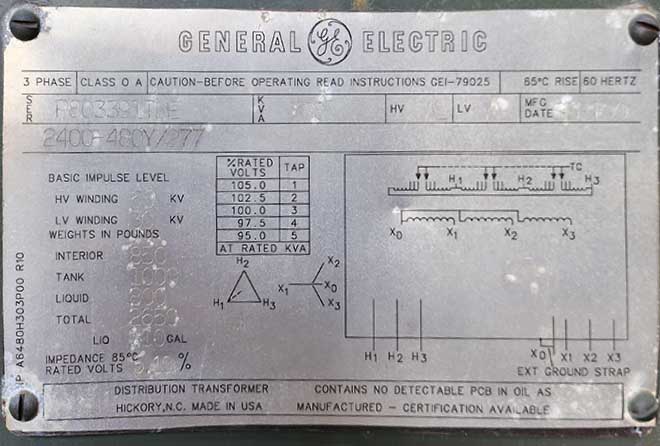

    ONE (1) 300 KVA GENERAL ELECTRIC PADMOUNT TRANSFORMER
    LIVE FRONT, RADIAL FEED, 60 HZ, 3 PH, 65 DEG C RISE,
    AL WINDINGS, 5.1% IMPEDANCE, LIQUID LEVEL GAUGE,
    LIQUID TEMP GAUGE, PRESSURE RELEASE VALVE, DRAIN &
    SAMPLE VALVE,

    HV: 2400 DELTA BIL: 60 KV
    LV: 480Y/244 BIL: 30 KV

    TAPS: 2520-2460-2400-2340-2280

    TOTAL WEIGHT: 2650 LBS
    CORE & COILS: 850 LBS
    TANK & FITT.: 1000 LBS
    LIQUID- OIL: 800 LBS (10 GAL)

    DIMS:
