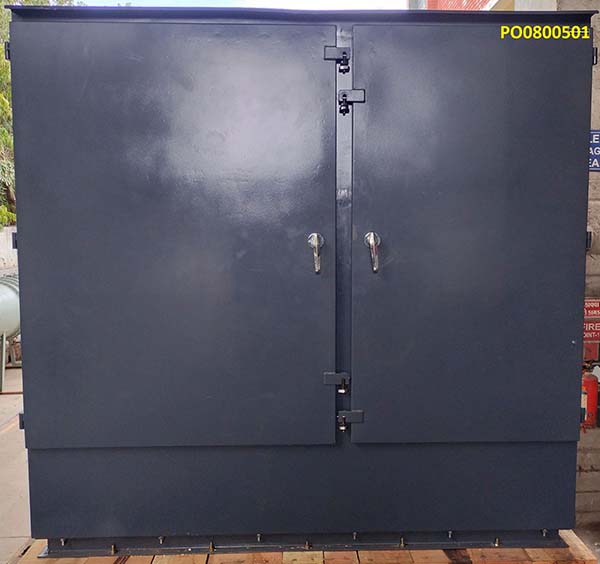

1250 KVA, Pri 34500 D, Sec 415 Y, DF/LF EATON COOPER PADMOUNT TRANSFORMER
PADMOUNTED TRANSFORMER
Product Number:
045098
Full Product Description
ONE (1) 1250 KVA EATON COOPER POWER SERIES PADMOUNTED TRANSFORMER,
3 PH, COPPER WINDINGS, 60 HZ, ONAN, 65 DEG C RISE,
DEAD FRONT, LOOP FEED, 5.75% IMPEDANCE (SUB TO IEC TOLERANCE),
TAP CHANGER, BAYONET FUSES, LIQUID LEVEL GAUGE, DIAL
TYPE THERMOMETER, PRESSURE RELIEF VALVE, VACUUM PRESSURE GAUGE,
DRAIN & SAMPLE VALVE
HV: 34500 DELTA BIL: 150 KV
LV: 415 WYE BIL: 30 KV
TOTAL WEIGHT: 11110 LBS
CORE & COILS: 4560 LBS
TANK & FITT.: 3620 LBS
OIL: 2930 LBS (350 GAL)
**ALL WEIGHTS ARE APPROX.**
