  2. 12/16/20/22.4 MVA, Pri 12470 D, Sec 4160 Y, DELTA STAR SUBSTATION TRANSFORMER

12/16/20/22.4 MVA, Pri 12470 D, Sec 4160 Y, DELTA STAR SUBSTATION TRANSFORMER

https://belyeapower.redstormlabs.com/web/image/product.template/34690/image_1920?unique=632d99c

SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045085
    Request Quote

    Full Product Description





    JVT-3899

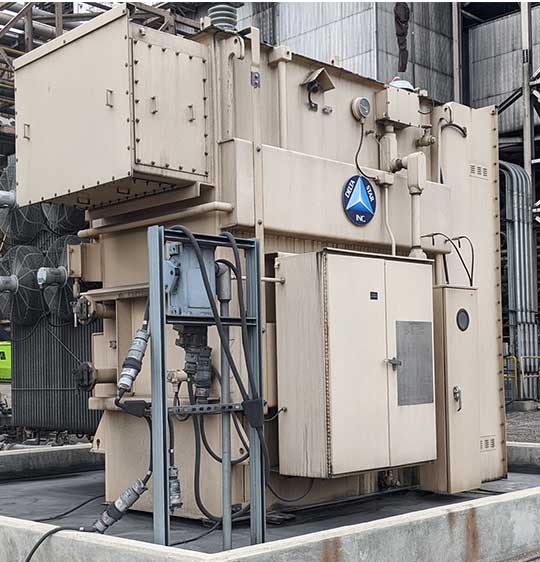

    ONE (1) 12/13.4/16/17.9/20/22.4 MVA DELTA STAR SUBSTATION TRANSFORMER,
    55/65 DEG C RISE, 4.7% IMPEDANCE, ONAN/ONAF/ONAF,
    3 PH, 60 HZ, COPPER WINDINGS, LIQUID LEVEL GAUGE,

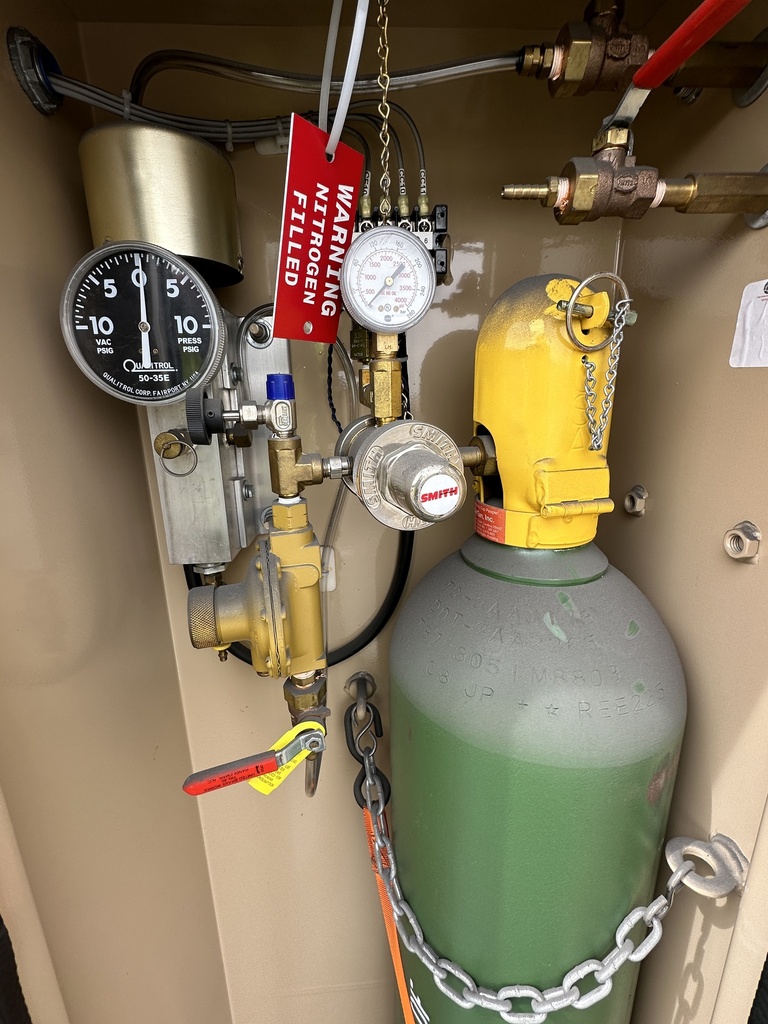

    LIQUID TEMP GAUGE, VACUUM PRESSURE GAUGE, PRESSURE
    RELEASE DEVICE

    HV: 12470 DELTA BIL: 110 KV
    LV: 4160 GRDY BIL: 110 KV

    TAPS: 13093-12782-12470-12158-11846

    TOTAL WEIGHT: 76700 LBS
    CORE & COILS: 32000 LBS
    TANK & FITT.: 24000 LBS
    FLUID-OIL: 20700 LBS (2755 GAL)

    SHIPPING DIMS: 155"H x 153"D x 94"W (138"W INCLUDING RADS)
