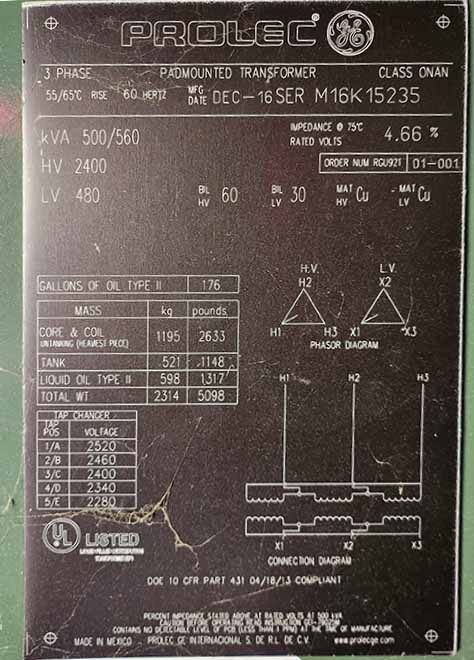

500/560 KVA, Pri 2400 DELTA, Sec 480 DELTA, LF/RF, GE PROLEC TRANSFORMER

T-6164

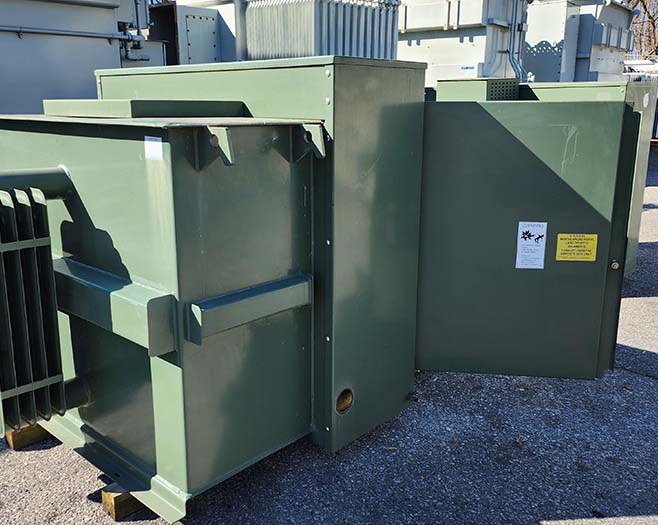

ONE (1) 500/560 KVA GE PROLEC PADMOUNT TRANSFORMER,
LIVE FRONT, RADIAL FEED, 3 PH, 60 HZ, 4.66% IMPEDANCE, ONAN,
55/65 DEG C RISE, COPPER WINDINGS, DRAIN & SAMPLE VALVE,
VACUUM PRESSURE GAUGE, LIQUID TEMP GAUGE, LIQUID LEVEL
GAUGE, PRESSURE RELEASE DEVICE, UL LISTED

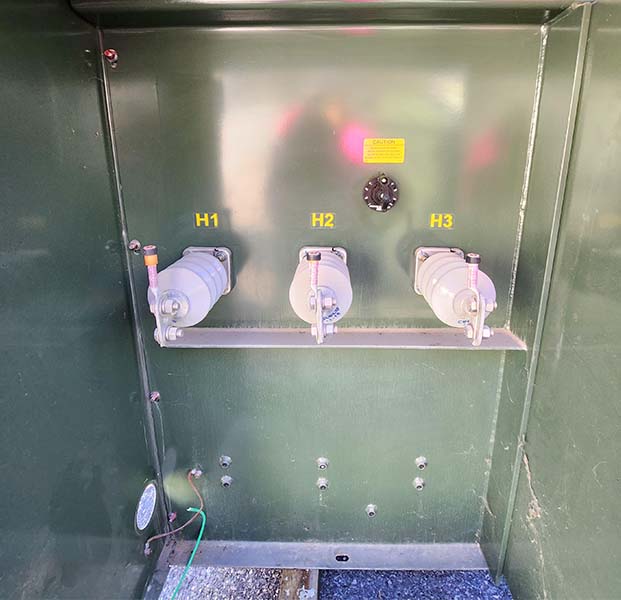

HV: 2400 DELTA BIL: 60 KV
LV: 480 DELTA BIL: 30 KV

TAPS: 2520-2460-2400-2340-2280

TOTAL WEIGHT: 5098 LBS
CORE & COILS: 2633 LBS
TANK & FITT.: 1148 LBS
OIL: 1317 LBS (176 GAL)

DIMS: 58"H x 62.5"L x 60"D
