  2. 1000/1120 KVA, Pri 33000 D, Sec 4160Y/2400, WESTINGHOUSE TRANSFORMER

1000/1120 KVA, Pri 33000 D, Sec 4160Y/2400, WESTINGHOUSE TRANSFORMER

https://belyeapower.redstormlabs.com/web/image/product.template/34656/image_1920?unique=632d99c

SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045051
    Request Quote

    Full Product Description

    T-6097

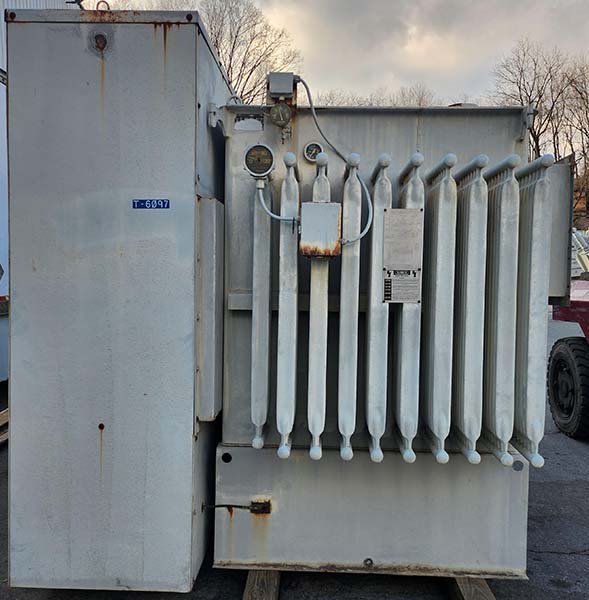

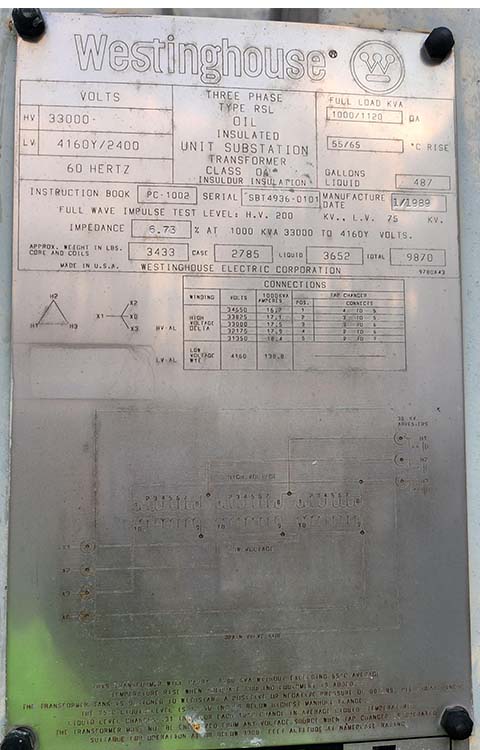

    ONE (1) 1000/1120 KVA WESTINGHOUSE SUBSTATION TRANSFORMER
    THREE PHASE, 60 HERTZ, 6.73% IMP. SN:SBT4936-0101
    AL WINDINGS, LIQUID TEMPERATURE GAUGE, LIQUID
    LEVEL GAUGE, VACUUM PRESSURE GAUGE, PRESSURE
    RELIEF VALVE, DRAIN AND SAMPLE VALVE, SIDE/SIDE
    BUSHINGS, INSTRUCTION BOOKLET - PC-1002


    HV: 33000 KV DELTA BIL: 200KV
    LV: 4160Y/2400 BIL: 75KV
    TAPS: 34650-33825-33000-32175-31350

    TANK AND FITTINGS: 2785 LBS.
    CORE AND COIL: 3433 LBS.
    FLUID - OIL: 3652 LBS. (487 GALS.)
    TOTAL WEIGHT: 9870 LBS.

    DIMENSIONS:
