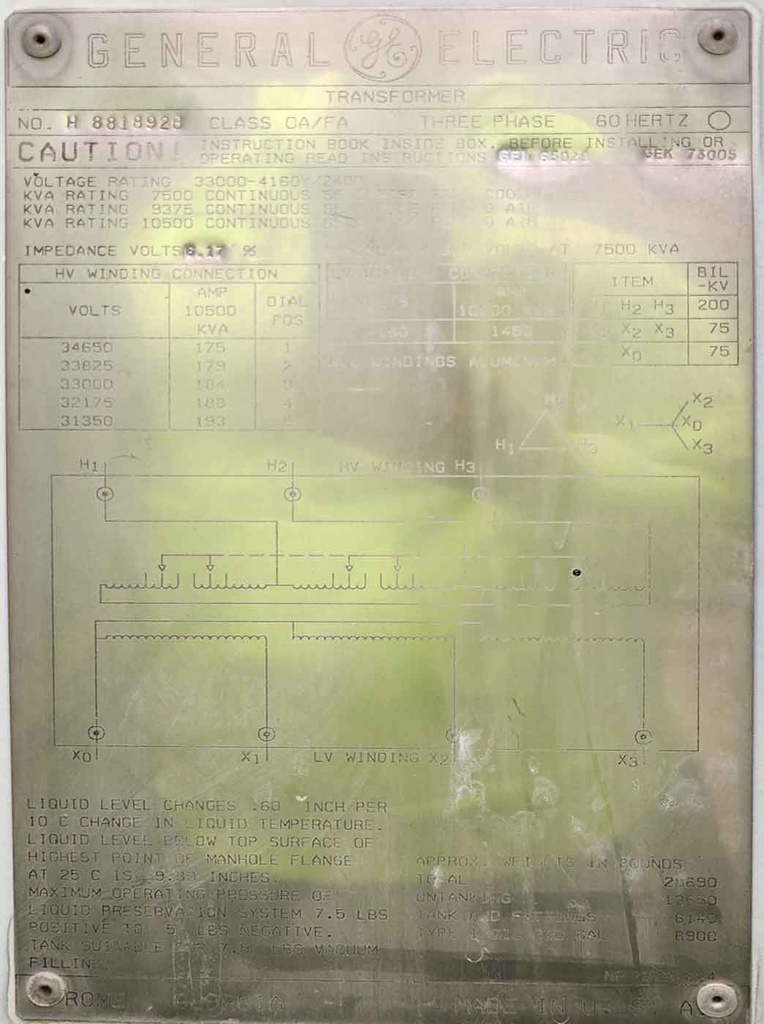

7500/9375/10.5 KVA, Pri 33000 D, Sec 4160Y/2400, GENERAL ELECTRIC

T-6104

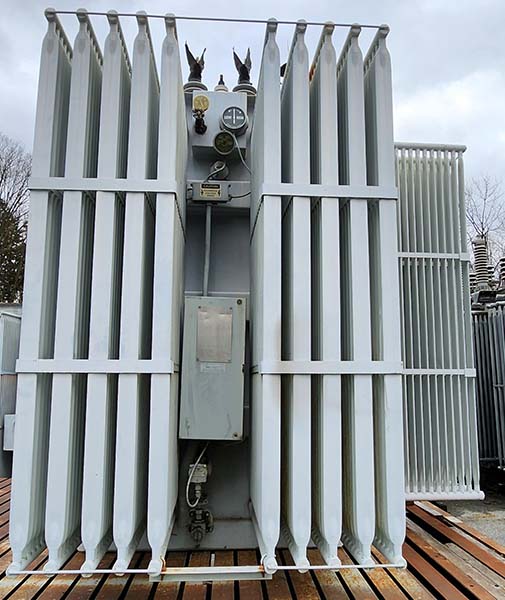

ONE (1) 7.5/9.375/10.5 MVA GE SUBSTATION TRANSFORMER
THREE PHASE, CLASS OA/FA, 60 HERTZ, 6.17% IMP.
AL WINDINGS, LIQUID TEMPERATURE GAUGE, LIQUID
LEVEL GAUGE, VACUUM PRESSURE GAUGE, PRESSURE
RELIEF VALVE, DRAIN AND SAMPLE VALVE, TOP/TOP
BUSHINGS, INST. BOOK GEI 65029 / GEK 73005
SN: H881892B

HV: 33000 KV DELTA BIL: 200KV
LV: 4160Y/2400 BIL: 75KV
TAPS: 34650-33825-33000-32175-31350

TANK AND FITTINGS: 8140 LBS.
CORE AND COIL: 13650 LBS.
FLUID - OIL: 6900 LBS. (920 GALS.)
TOTAL WEIGHT: 28630 LBS.

DIMENSIONS:
