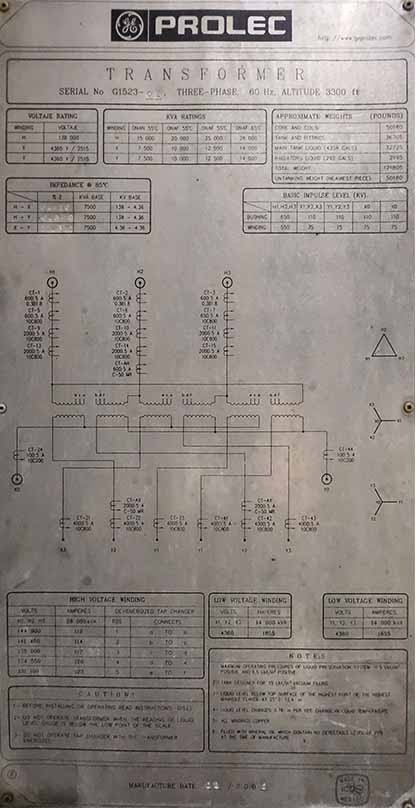

15/20/25/28 MVA, 138000D-4360Y/2515x4360Y/2515 GE PROLEC SUBSTATION TRANSFORMER

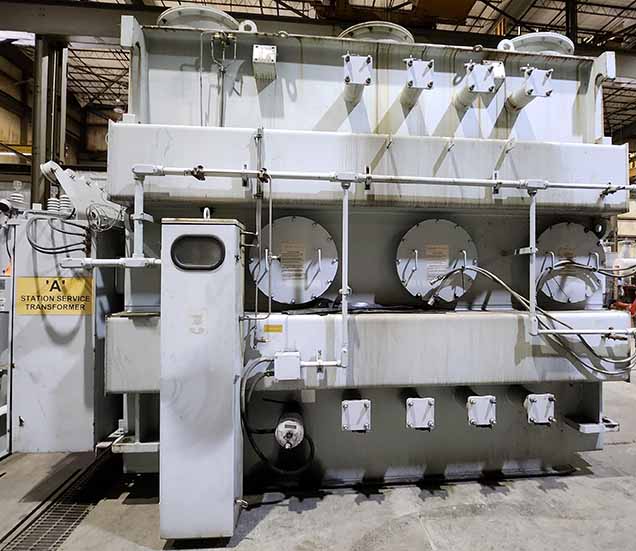

ONE (1) 15/20 MVA GE PROLEC DUAL SECONDARY SUBSTATION TRANSFORMER,
55/65 DEG C RISE, 6.416%/6.40% IMPEDANCE, LOW VOLTAGE SPLIT
WINDING, FOUR (4) 2000:5 MRCT'S CLASS C800, SIX (6) 4000:5
MRCT'S CLASS C800, TWO (2) 600:5 MRCT'S CLASS C800, CU WINDINGS,
LIQUID TEMP GAUGE, LIQUID LEVEL GAUGE, WINDING TEMP GAUGE,
DRAIN & SAMPLE VALVE, LIQUID PRESERVATION SYSTEM

HV: 138000 DELTA HV BUSHING BIL: 650 KV
HV WINDING BIL: 550 KV

LV1: 4360Y/2515 LV1 BUSHING BIL: 110 KV
LV1 WINDING BIL: 75 KV

LV2: 4360Y/2515 LV2 BUSHING BIL: 110 KV
LV2 WINDING BIL: 75 KV

TAPS: 144900-141450-138000-134550-131100

TOTAL WEIGHT: 121805 LBS
CORE & COILS: 50180 LBS
TANK & FITT.: 36705 LBS
OIL: 34920 LBS (4650 GAL)

SHIPPING WEIGHT: 78000 LBS
