  2. 30/40 MVA, 138000D-4360Y/2515x4360Y/2515 GE PROLEC SUBSTATION TRANSFORMER

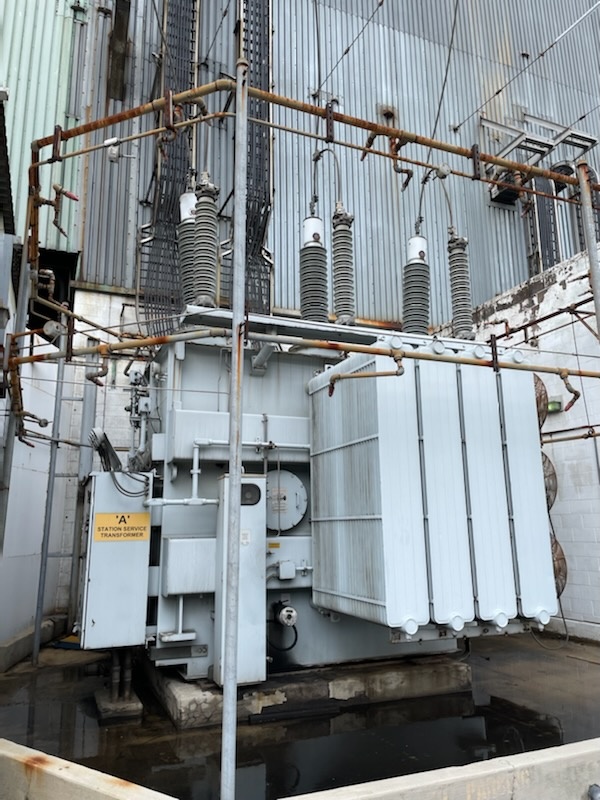

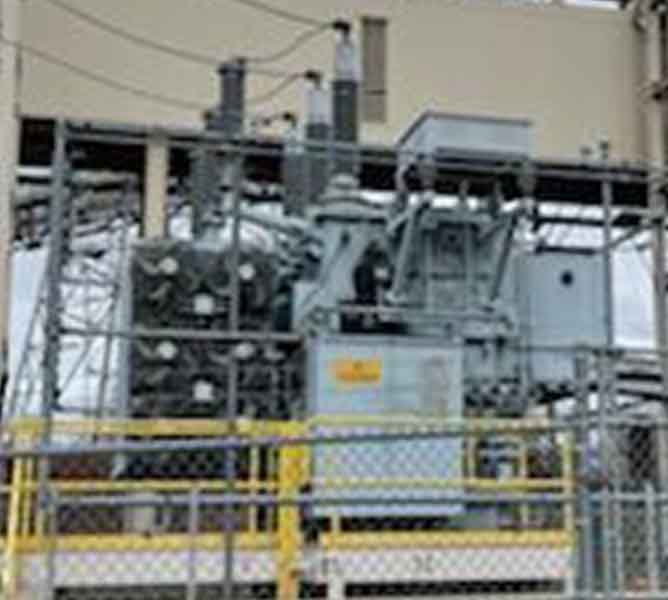

30/40 MVA, 138000D-4360Y/2515x4360Y/2515 GE PROLEC SUBSTATION TRANSFORMER

https://belyeapower.redstormlabs.com/web/image/product.template/34646/image_1920?unique=632d99c

DUAL SECONDARY SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045041
    Request Quote

    Full Product Description

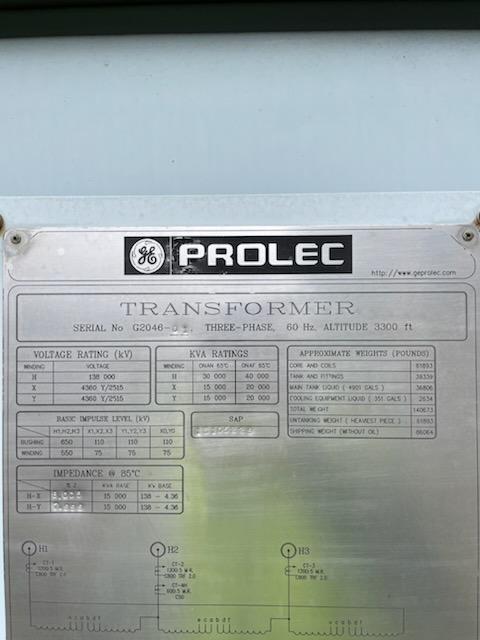

    ONE (1) 30/40 MVA GE PROLEC DUAL SECONDARY SUBSTATION TRANSFORMER,
    55/65 DEG C RISE, 8.005%/7.99% IMPEDANCE, LOW VOLTAGE SPLIT
    WINDING, THREE (3) 1200:5 MRCT'S CLASS C800, SIX (6) 3000:5
    MRCT'S CLASS C800, TWO (2) 600:5 MRCT'S CLASS C800

    HV: 138000 DELTA HV BUSHING BIL: 650 KV
    HV WINDING BIL: 550 KV

    LV1: 4360Y/2515 LV1 BUSHING BIL: 110 KV
    LV1 WINDING BIL: 75 KV

    LV2: 4360Y/2515 LV2 BUSHING BIL: 110 KV
    LV2 WINDING BIL: 75 KV

    TAPS: 144900-141450-138000-134550-131100

    TOTAL WEIGHT: 140623 LBS
    CORE & COILS: 85023 LBS
    TANK & FITT.: 39339 LBS
    OIL: 39440 LBS (5252 GAL)

    SHIPPING WEIGHT: 86064 LBS
