2000/3000 KVA, Pri 13750D Sec 480Y/277, NATIONAL INDUSTRIES DRY TYPE TRANSFORMER, N3R

T-6145

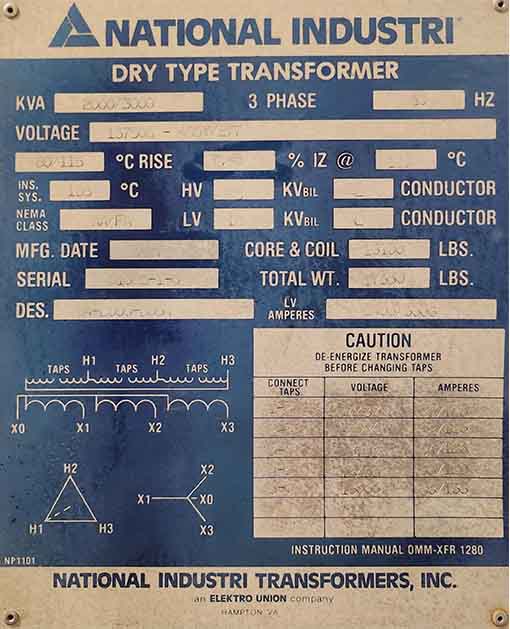

ONE (1) 2000/3000 KVA NATIONAL INDUSTRIES CAST COIL DRY TYPE TRANSFORMER,
7.54% IMPEDANCE, 80/115 DEG C RISE, AA/FA, LV AMP: 2406/3608
3 PHASE, AL CONDUCTORS,
WITH UNFUSED PRIMARY DISCONNECT SWITCH:
S&C MINIRUPTER SWITCH 255122R2, 17 KV MAX, 95 KV BIL, 600 AMP,
22.4 KA FAULT-CLOSING/MOMENTARY

HV: 13750 DELTA BIL: 95 KV
LV: 480Y/277 BIL: 10 KV

TAPS: 14437-14094-13750-13406-13063

TOTAL WEIGHT: 17350 LBS

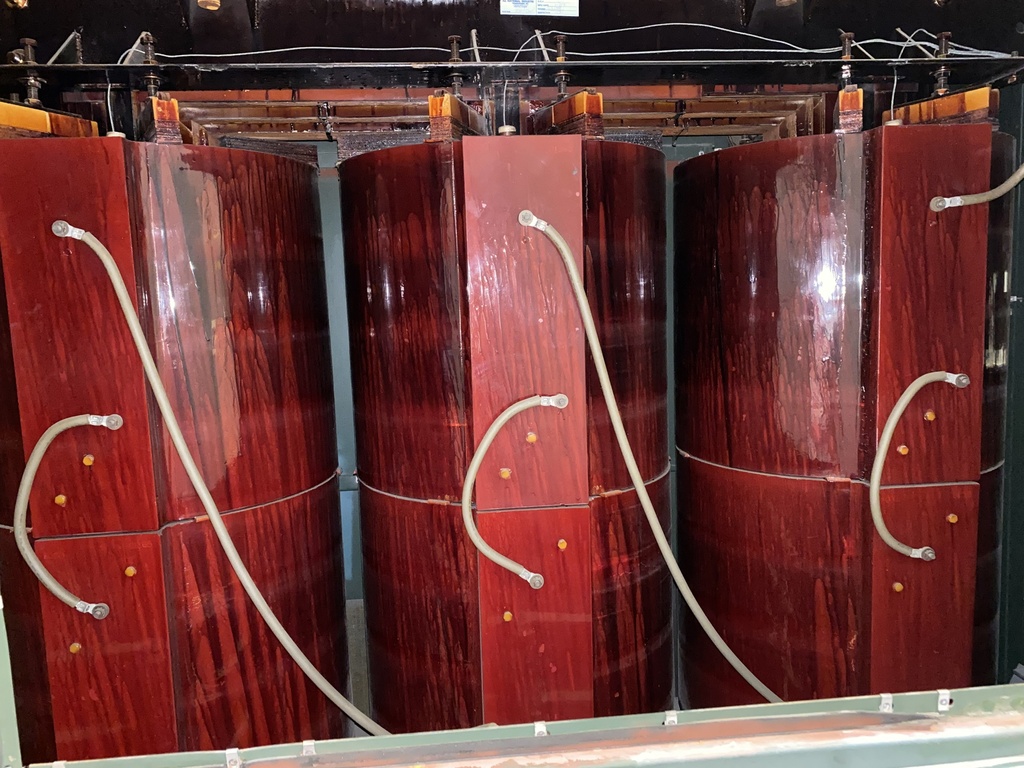

CORE & COILS: 13100 LBS

DIMS: 114"L x 102"H x 98"W
Core & Coils: 85"L x 88"H x 28"W
