  2. 2000/2667 KVA, Pri 13200Y, Sec 480Y/277, ABB, CAST/DYNICAST, DRY TYPE TRANSFORMER, N3R LF/RF

2000/2667 KVA, Pri 13200Y, Sec 480Y/277, ABB, CAST/DYNICAST, DRY TYPE TRANSFORMER, N3R LF/RF

https://belyeapower.redstormlabs.com/web/image/product.template/34627/image_1920?unique=e3adc27

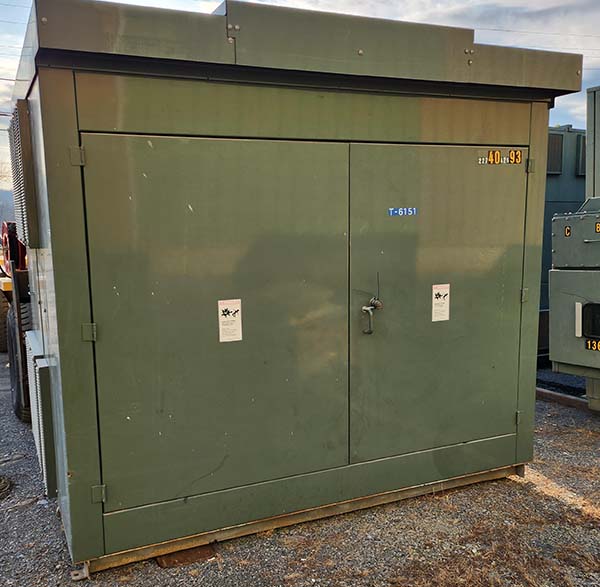

OUTDOOR DRY TYPE TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045022
    Request Quote

    Full Product Description


    T-6151

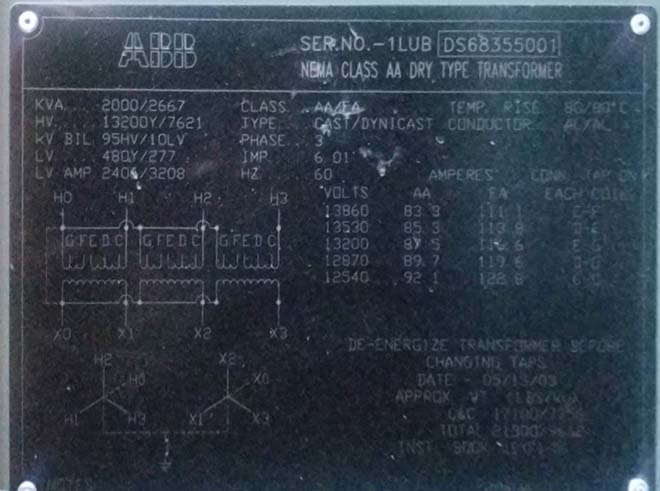

    ONE (1) 2000/2667 KVA ABB CAST/DYNICAST COIL DRY TYPE TRANSFORMER,
    6.01% IMPEDANCE, 80/80 DEG C RISE, AA/FA, LV AMP: 2406/3208
    AL COILS, PADMOUNTED ENCLOSURE (N3R) WITH LIVE, RADIAL CONNECTIONS,
    (3X) GE JCD-0 CURRENT TRANSFORMERS (4000:5 RATIO) ON LV SIDE

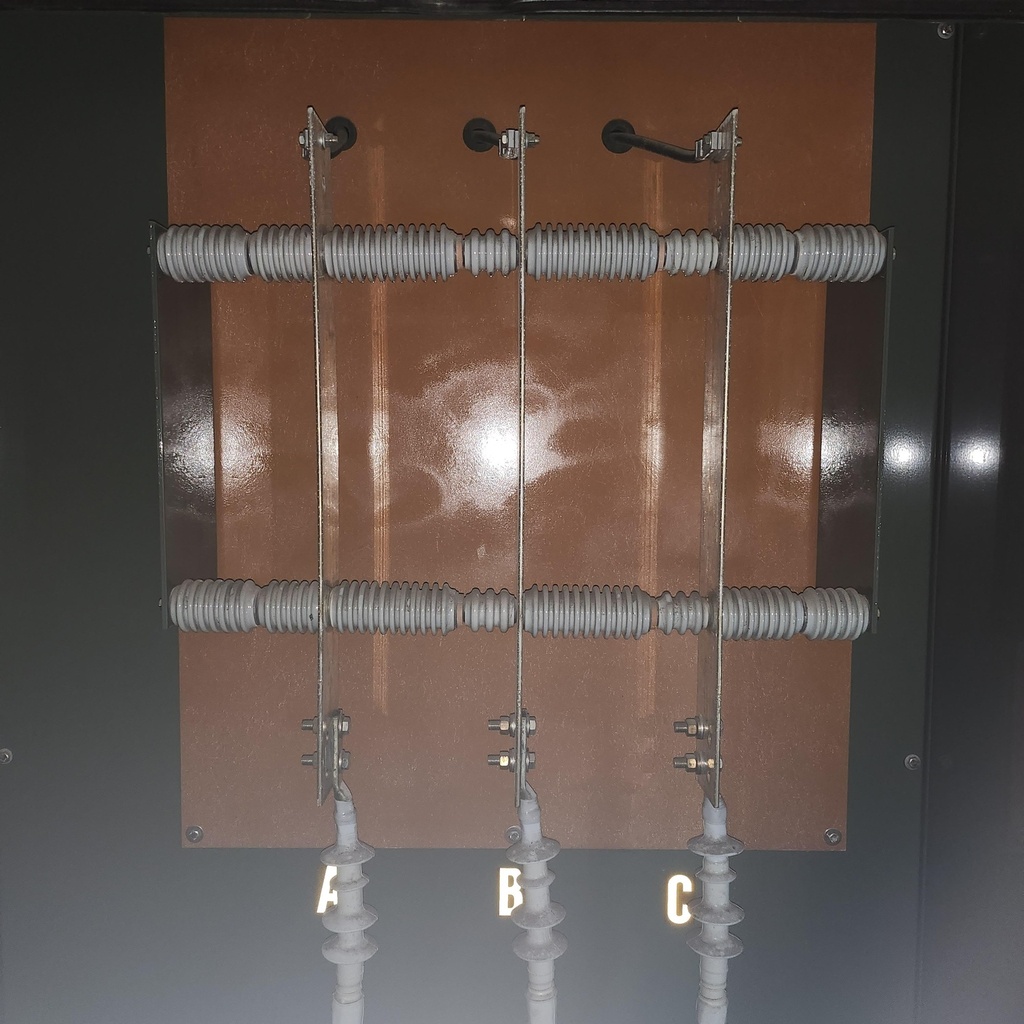

    HV: 13200 WYE BIL: 95 KV
    LV: 480Y/277 BIL: 10 KV

    TAPS: 13860-13530-13200-12870-12540

    TOTAL WEIGHT: 21300 LBS
    CORE & COILS: 17100 LBS

    DIMS: 145"L x 115"H x 61.5"W
