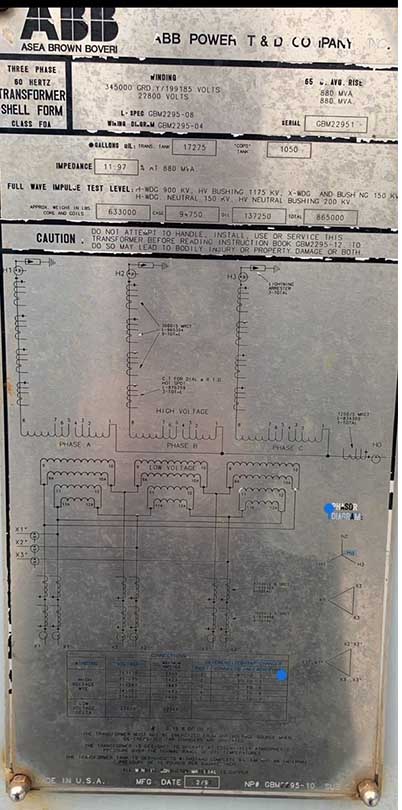

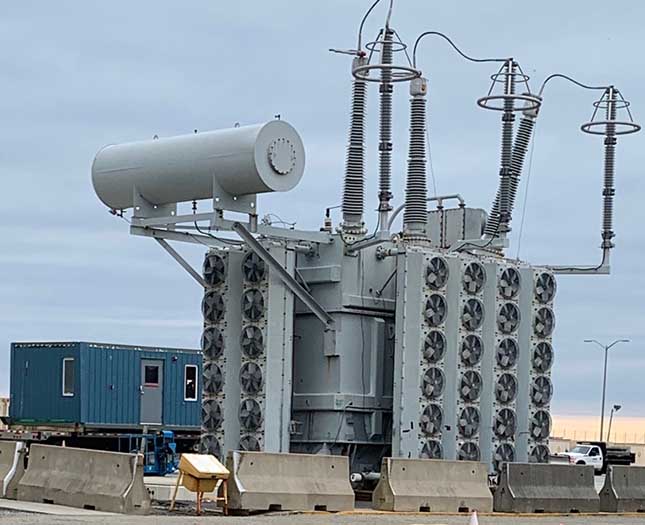

880 MVA, Pri 345000 GRDY,Sec 22800 DELTA, ABB GSU SUBSTATION TRANSFORMER

ONE (1) 880 MVA ABB GENERATOR STEP UP SUBSTATION TRANFORMER,
65 DEG C RISE, 11.97% IMPEDANCE, ALL COPPER WINDINGS,
TOP-TOP BUSHINGS, OIL TEMP GAUGE, OIL LEVEL GAUGE, PRESSURE
GAUGE, PRESSURE RELEASE DEVICE, DRAIN & SAMPLE VALVE,
OIL EXPANSION TANK, (6) 10000/2:5 SRCT'S, (6) 17500/2:5
SRCT'S, (1) 12000/5 MRCT, (9) 3000/5 MRCT'S, (3) CT FOR DIAL
& RTD (HOT SPOT),

HV: 345000 GRDY BIL: 900 KV (WINDINGS)
1175 KV (BUSHINGS)

LV: 22800 DELTA BIL: 150 KV

TAPS: 363110-357075-351040-345000-338960

TOTAL WEIGHT: 865000 LBS
CORE & COILS: 633000 LBS
TANK & FITT.: 94750 LBS
OIL: 137250 LBS (18325 GAL)
