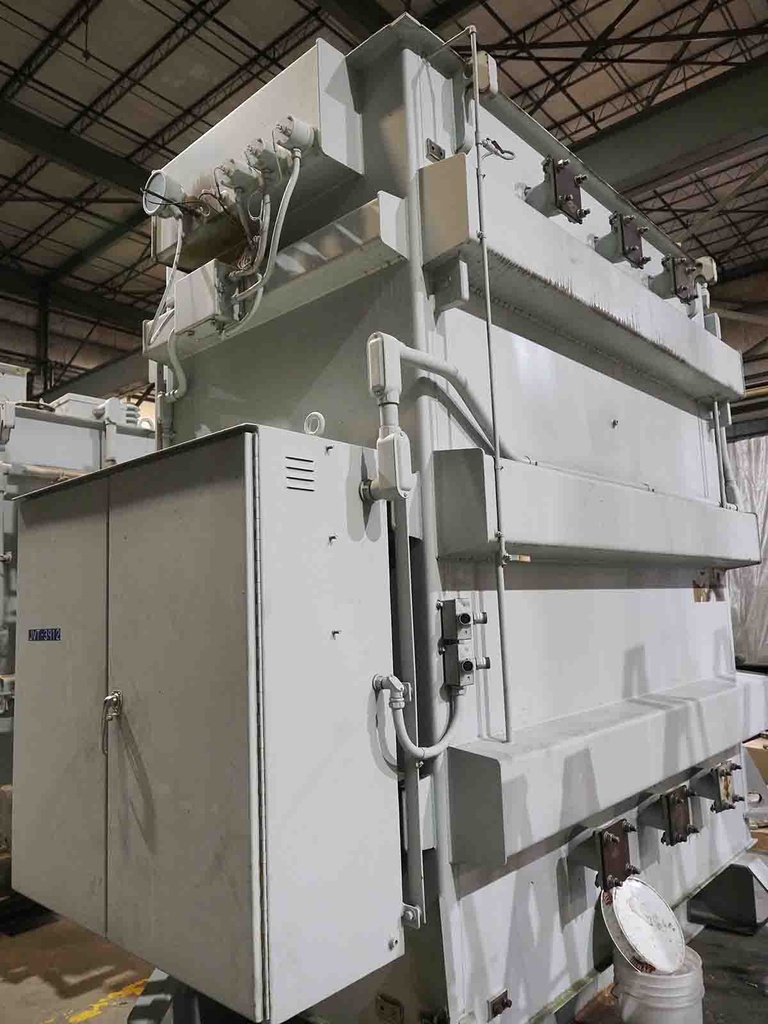

10/14 MVA, PRI 13800D, SEC 4160Y/2402 KUHLMAN TRANSFORMER, COPPER

ONE (1) 10/11.2/12.5/14 MVA KUHLMAN SUBSTATION TRANSFORMER,
60 HERTZ, CLASS ONAN/ONAF, 55/65 DEG. C RISE, 10.05% IMPEDANCE, 3 PH,
COPPER WINDINGS, CIRCULAR/DISK WOUND, LV SIDE IN PARITAL ATC, MRCT C:800

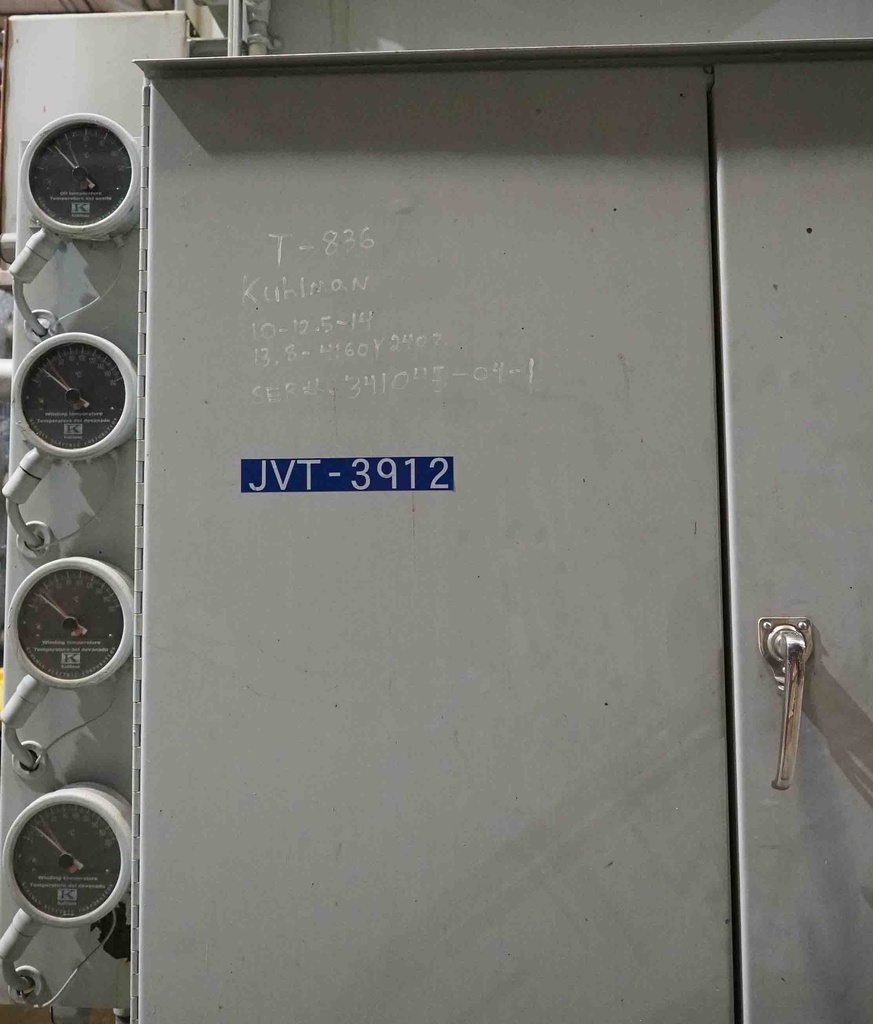

LIQUID LEVEL GAUGE, LIQUID TEMP GAUGE, VACUUM PRESURE GAUGE, PRESSURE
RELEASE DEVICE, DRAIN & SAMPLE VALVE, HV BUSHING SIDE, LV BUSHING SIDE

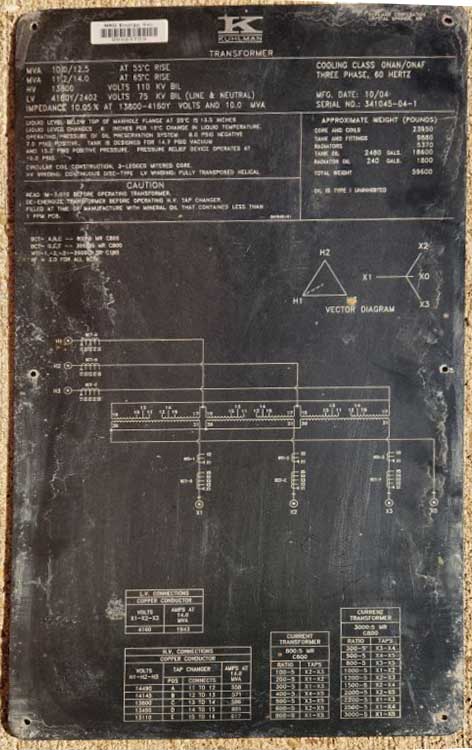

HV: 13800 DELTA BIL: 110 KV
LV: 4160Y/2402 BIL: 75 KV

TAPS: 14490-14145-13800-13455-13110

TOTAL WEIGHT: 59600 LBS
CORE & COILS: 23950 LBS
TANK & FITT.: 9880 LBS
OIL: 20400 LBS (2720 LBS)
RADIATOR: 5370 LBS
RADIATOR OIL: 1800 LBS (240 GALS.)

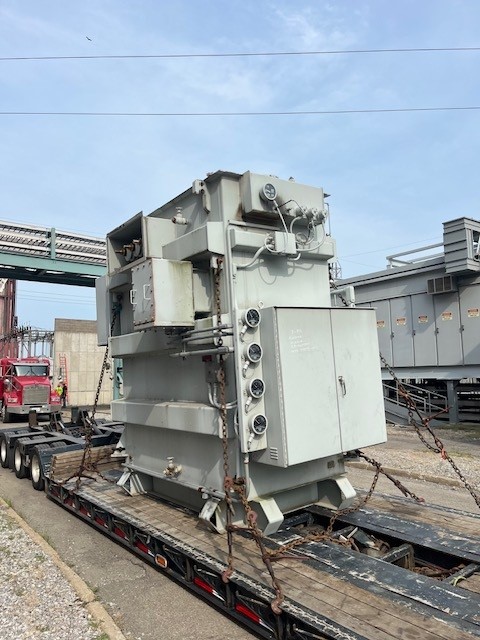

SHIPPING DIMS: 148,75"H X 156.5"L X 81.25 "L
OVERALL DIMS: 148.75"H X 156.5"L X 154.7"L
