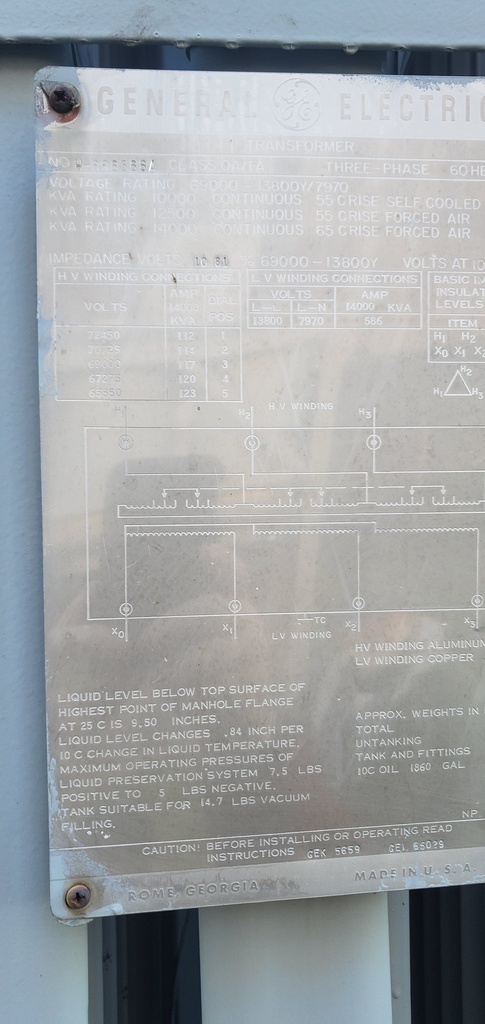

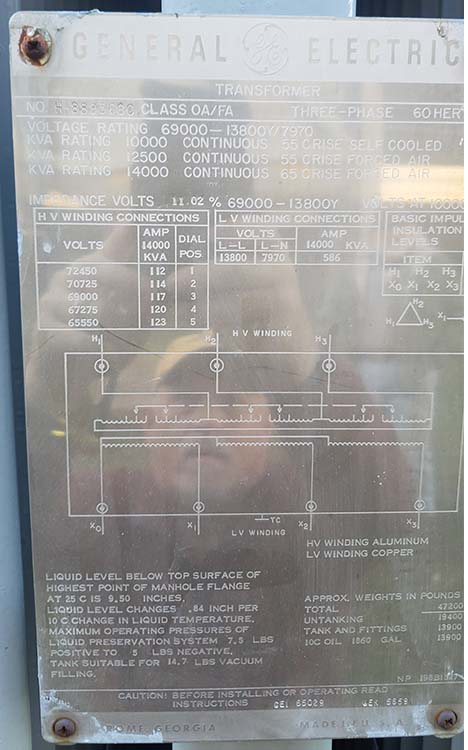

  2. 10/14 MVA, PRI 69000D, SEC 13800Y/7970 GENERAL ELECTRIC SUBSTATION TRANSFORMER:2

10/14 MVA, PRI 69000D, SEC 13800Y/7970 GENERAL ELECTRIC SUBSTATION TRANSFORMER:2

https://belyeapower.redstormlabs.com/web/image/product.template/34611/image_1920?unique=632d99c

SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045006
    Request Quote

    Full Product Description

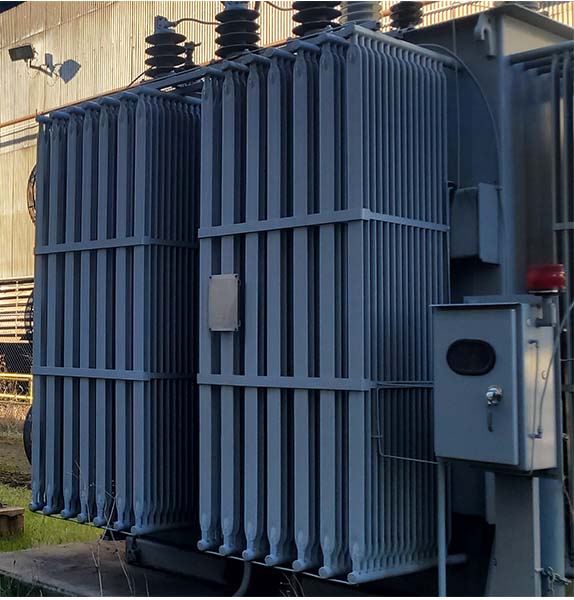

    ONE (1) 10/12.5/14 MVA GENERAL ELECTRIC SUBSTATION TRANSFORMER
    55/65 DEG C RISE, 11.02% IMPEDANCE, HV-ALUMINUM LV-COPPER,
    OA/FA, OIL LEVEL GAUGE, OIL TEMP GAUGE, PRESSURE GAUGE,
    PRESSURE RELEASE VALVE, DRAIN & SAMPLE VALVE,

    HV: 69000 DELTA BIL: 550 KV
    LV: 13800Y/7970 BIL: 110 KV

    TAPS: 72450-70725-69000-67275-65550

    TOTAL WEIGHT: 47200 LBS
    CORE & COILS: 19400 LBS
    TANK & FITT.: 13900 LBS
    OIL: 13900 LBS (1860 GAL)

    DIMS:
