10/12.5/16.7 MVA, PRI 69000D, SEC 13800Y WESTINGHOUSE SUBSTATION TRANSFORMER

https://belyeapower.redstormlabs.com/web/image/product.template/34610/image_1920?unique=632d99c

SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 045005
    Request Quote

    Full Product Description

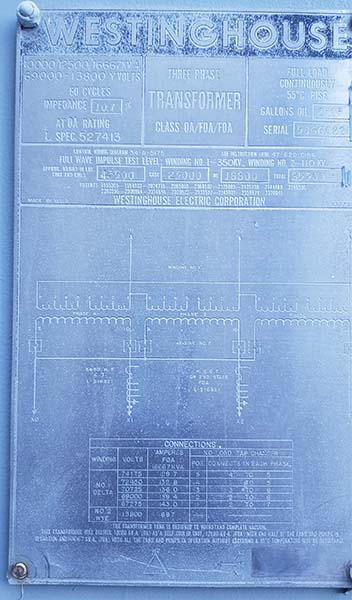

    ONE (1) 10/12.5/16.7 MVA WESTINGHOUSE SUBSTATION TRANSFORMER, 55 DEG C RISE,
    10.7% IMPEDANCE, OA/FOA/FOA, COPPER WINDINGS, OIL LEVEL GAUGE,
    OIL TEMP GAUGE, PRESSURE RELEASE VALVE, DRAIN & SAMPLE VALVE

    HV: 69000 DELTA BIL: 350 KV
    LV: 13800Y BIL: 110 KV

    TAPS: 74175-72450-70725-69000-67275

    TOTAL WEIGHT: 85300 LBS
    CORE & COILS: 43500 LBS
    TANK & FITT.: 23000 LBS
    OIL: 18800 LBS (2505 GAL)

    DIMS:
