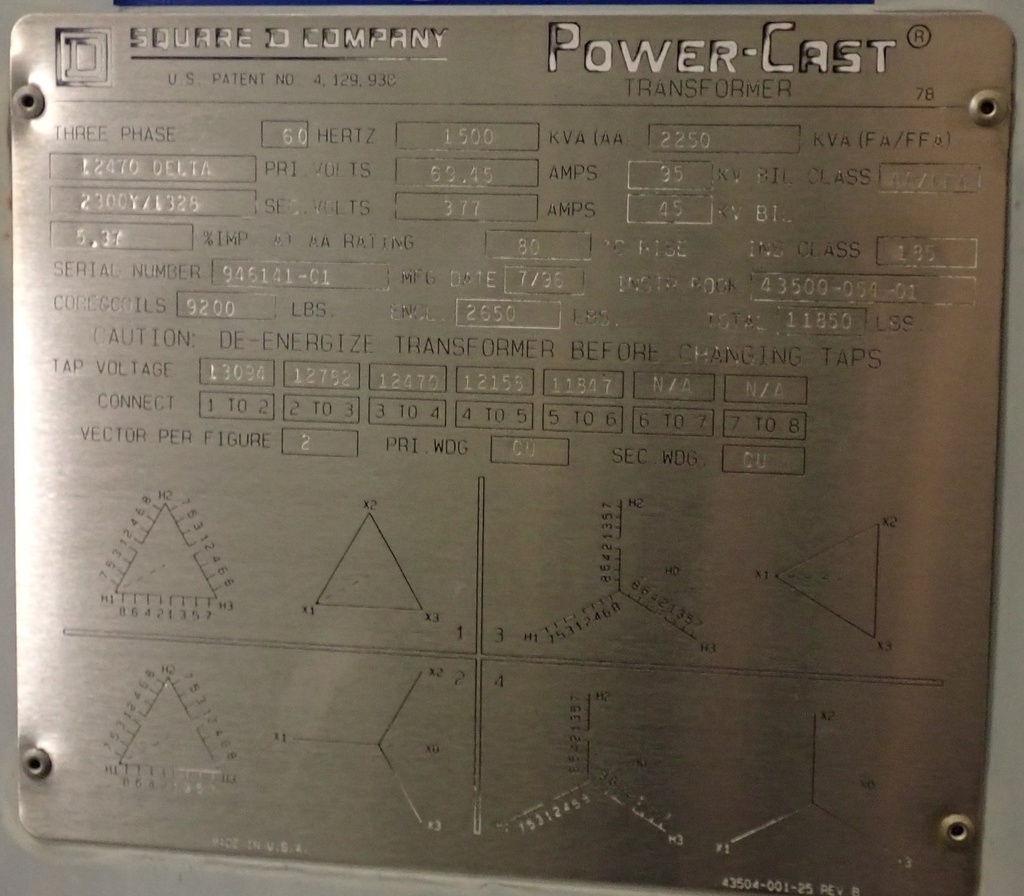

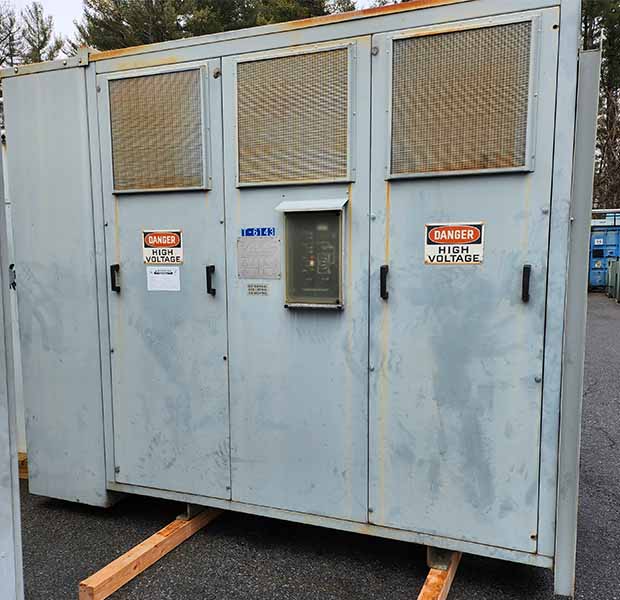

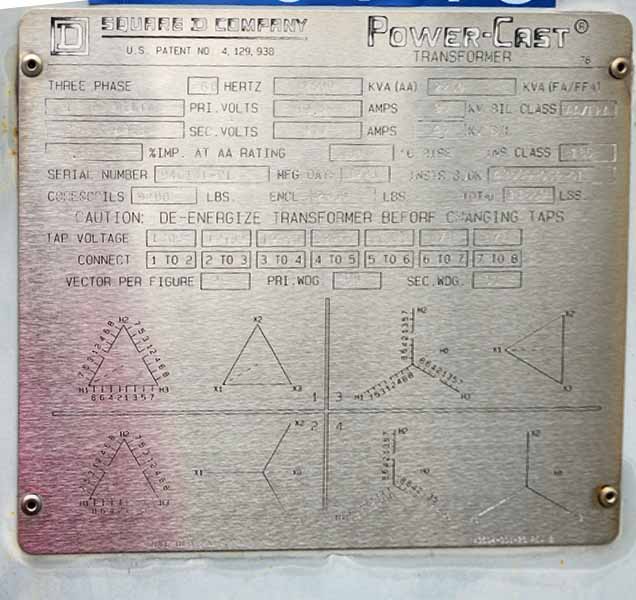

1500 KVA, 12470D-2300Y/1328 SQUARE D CAST COIL COPPER DRY TYPE TRANSFORMER

T-6143

ONE (1) SQUARE D CAST COIL DRY TYPE TRANSFORMER, 1500 KVA,
3 PH, 60 HZ, 5.37% IMPEDANCE, AA/FFA, 80 DEG C RISE,
COPPER WINDINGS, INS CLASS 185,
INSTR BOOK 43500-054-01, ELECTRONIC TEMPERATURE MONITOR


HV: 12470 DELTA BIL: 95 KV
LV: 2300Y/1328 BIL: 45 KV

TOTAL WEIGHT: 11850 LBS
CORE & COILS: 9200 LBS
TANK & FITT.: 2650 LBS
