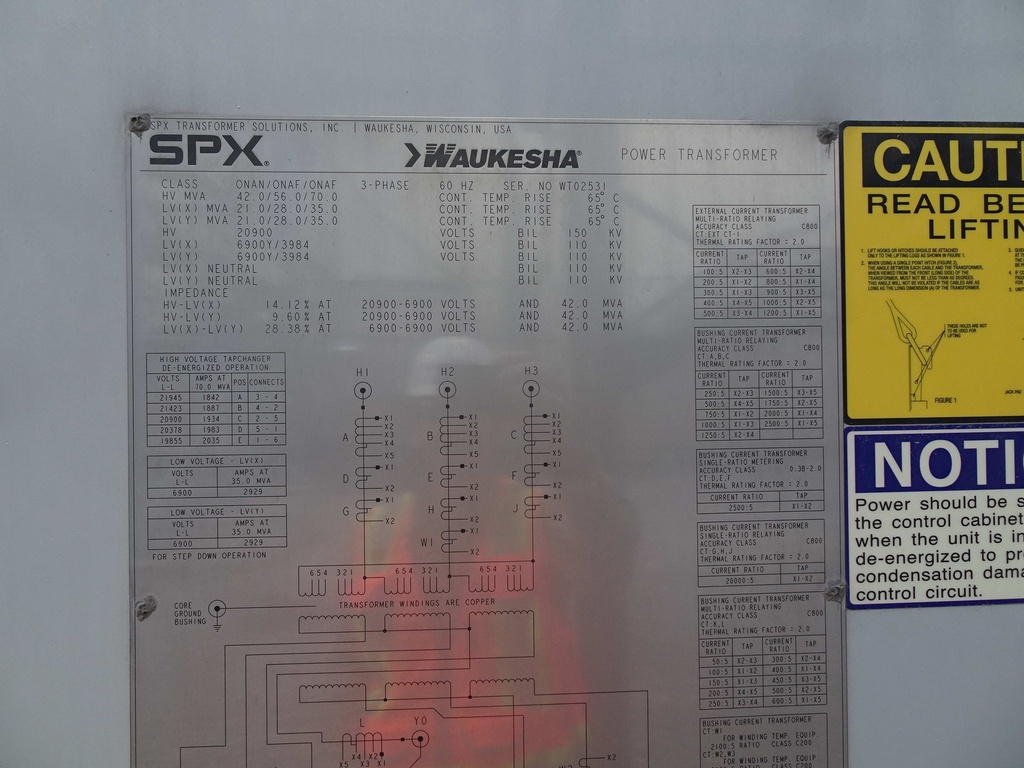

42/56/70 MVA, 20900D-6900Yx6900Y, SPX WAUKESHA SUBSTAION TRANSFORMER

ONE (1) SPX WAUKESHA SUBSTATION TRANSFORMER
42/56/70 MVA, ONAN/ONAF/ONAF, 65 DEG C RISE, 3 PHASE,
60 HZ

HV: 20900 DELTA BIL: 150 KV
LV: (X) 6900Y/3984 BIL: 110 KV
LV: (Y) 6900Y/3984 BIL: 110 KV

HV-LV(X): 14.12% IMPEDANCE
HV-LV(Y): 9.60% IMPEDANCE
LV(X)-LV(Y): 28.38% IMPEDANCE

TAPS: 21945-21423-20900-20378-19855

TOTAL WEIGHT: 199100 LBS
CORE & COILS: 90800 LBS
TANK & FITT.: 53800 LBS
OIL: 54500 LBS (7260 GAL)

SHIPPING WEIGHTS (WITHOUT OIL):
PARTS: 28100 LBS
UNIT: 116500 LBS
TOTAL: 144600 LBS
