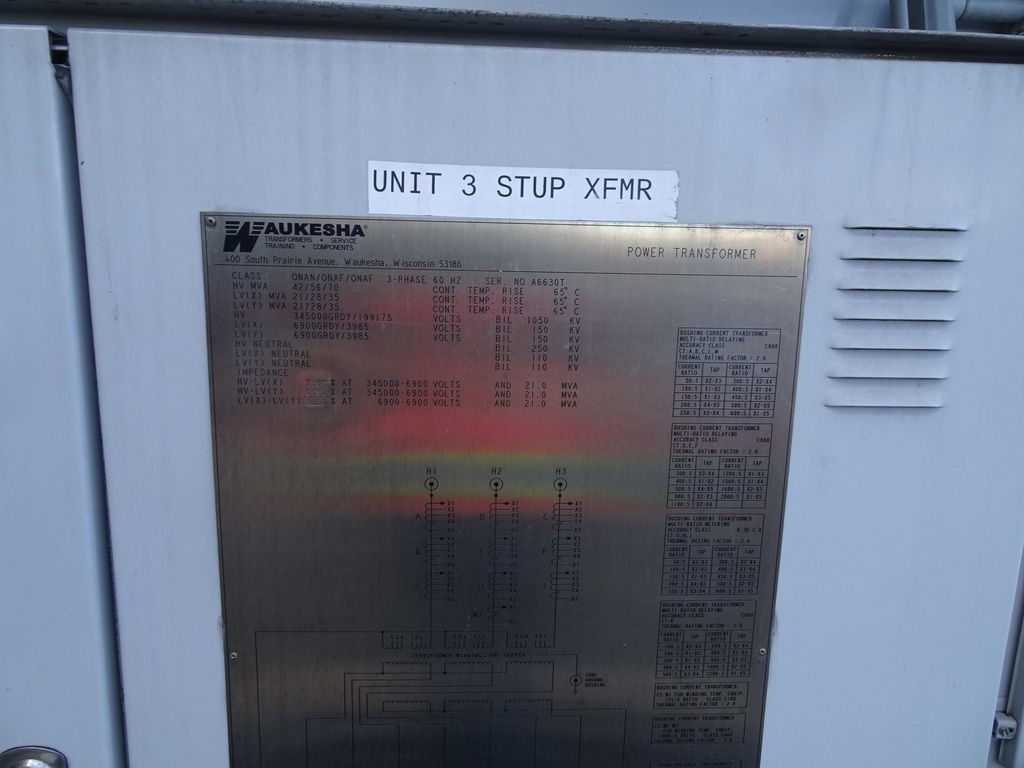

42/56/70 MVA, 345000GRDY-6900GRDYx6900GRDY, WAUKESHA SUBSTATION TRANSFORMER

ONE (1) WAUKESHA SUBSTATION TRANSFORMER
42/56/70 MVA, ONAN/ONAF/ONAF, 65 DEG C RISE, DUAL SECONDARY,
GRDY-GRDY UNIT, DUAL (X,Y) SECONDARY

HV: 345000GRDY/199175 BIL: 1050 KV
LV: (X) 6900 GRDY/3985 BIL: 150 KV
LV: (Y) 6900 GRDY/3985 BIL: 150 KV

HV-LV(X): 7.03% IMPEDANCE
HV-LV(Y): 6.92% IMPEDANCE
LV(X)-LV(Y): 13.27% IMPEDANCE

TOTAL WEIGHT: 346700 LBS
CORE & COILS: 106100 LBS
TANK & FITT.: 101400 LBS
OIL: 139200 LBS (18555 GAL)

SHIPPING WEIGHTS(WITHOUT OIL):
PARTS: 36600 LBS
UNIT: 170900 LBS
TOTAL:207500 LBS
