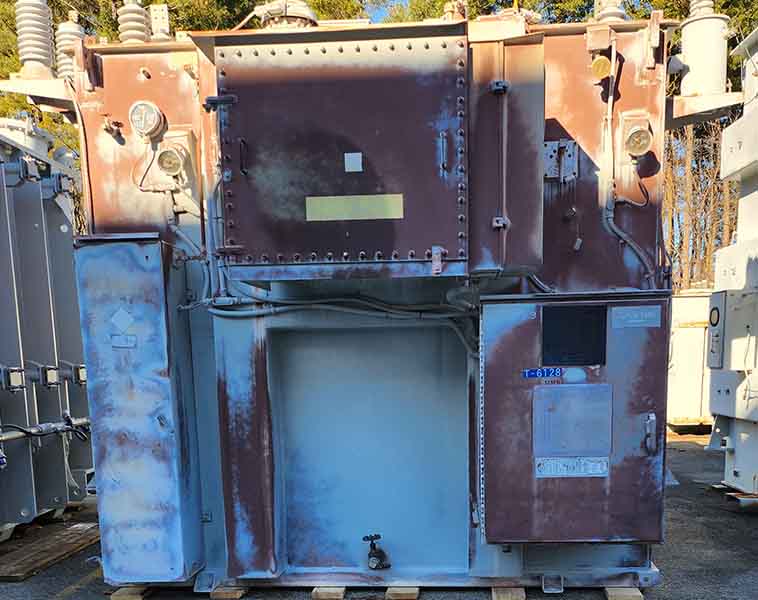

7500/10500 KVA, 22900D-4160Y/2400, LOAD TAP CHANGING VIRGINIA TRANSFORMER

T-6128

ONE (1) LOAD TAP CHANGING VIRGINIA TRANSFORMER
7500 KVA, 3 PH, 60 HZ, 6.86% IMPEDANCE, OA/OA/FA/FA,
55/65 DEG C RISE, COPPER WINDINGS, LIQUID TEMP GAUGE,
LIQUID LEVEL GAUGE, VACUUM PRESSURE GAUGE, PRESSURE RELEASE
VALVE, DRAIN & SAMPLE VALVE, NITROGEN LEVEL GAUGE, NITROGEN
PRESSURE GAUGE,

HV: 22900 DELTA BIL: 150 KV
LV: 4160Y/2400 BIL: 75 KV

HV TAPS: 24045-23473-22900-22328-21755
LV TAPS: 16 UP, 16 DOWN

TOTAL WEIGHT: 70500 LBS
CORE & COILS: 25060 LBS
TANK & FITT.: 24040 LBS
OIL: 20600 LBS (2647 GAL)

DIMS: 114"H x 124"W x 51"D
