Full Product Description

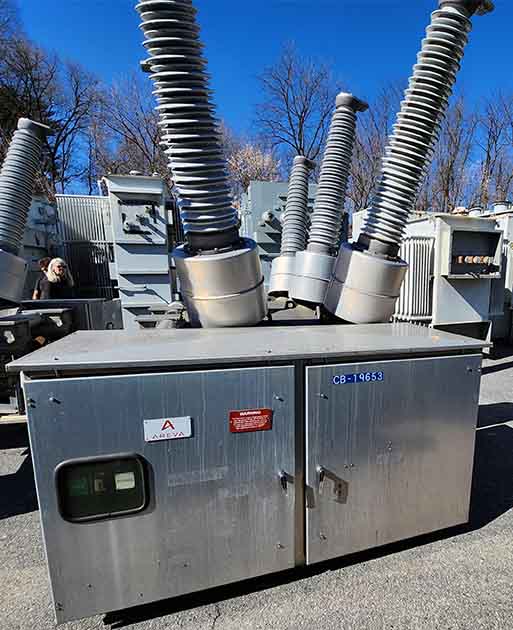

CB-19653

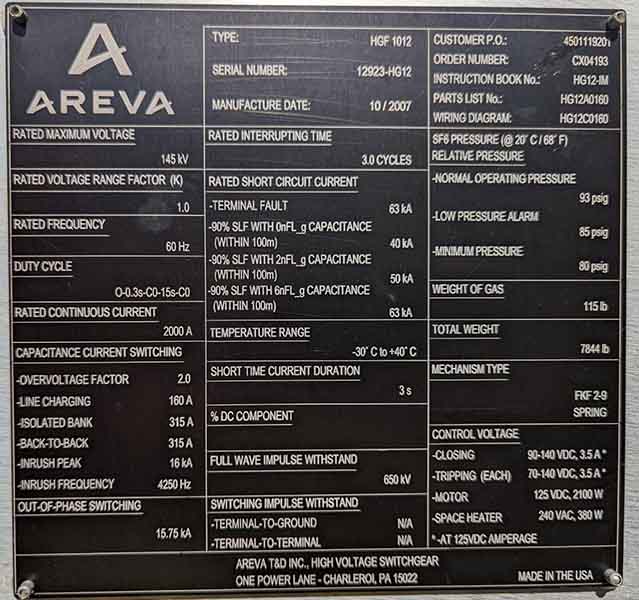

ONE (1) AREVA SF6 CIRCUIT BREAKER
2000 AMP CONTINUOUS
145 KV MAX
3 CYCLES
60 HZ
1.0 RATED K FACTOR
63 KA SHORT CIRCUIT
93 PSIG NORMAL OPERATING PRESSURE
650 KV BIL
FKF2-9 SPRING MECHANISM TYPE
125 VDC CLOSE AND TRIP
125 VDC MOTOR
240 VAC HEATER
3X MRCT'S, 2000:5 RATIO, C800
9x MRCT'S, 1200:5 RATIO, C800
3x LINEAR COUPLERS, 1000A/5V RATIO
TOTAL WEIGHT: 7844 LBS (GAS- 115 LBS)
